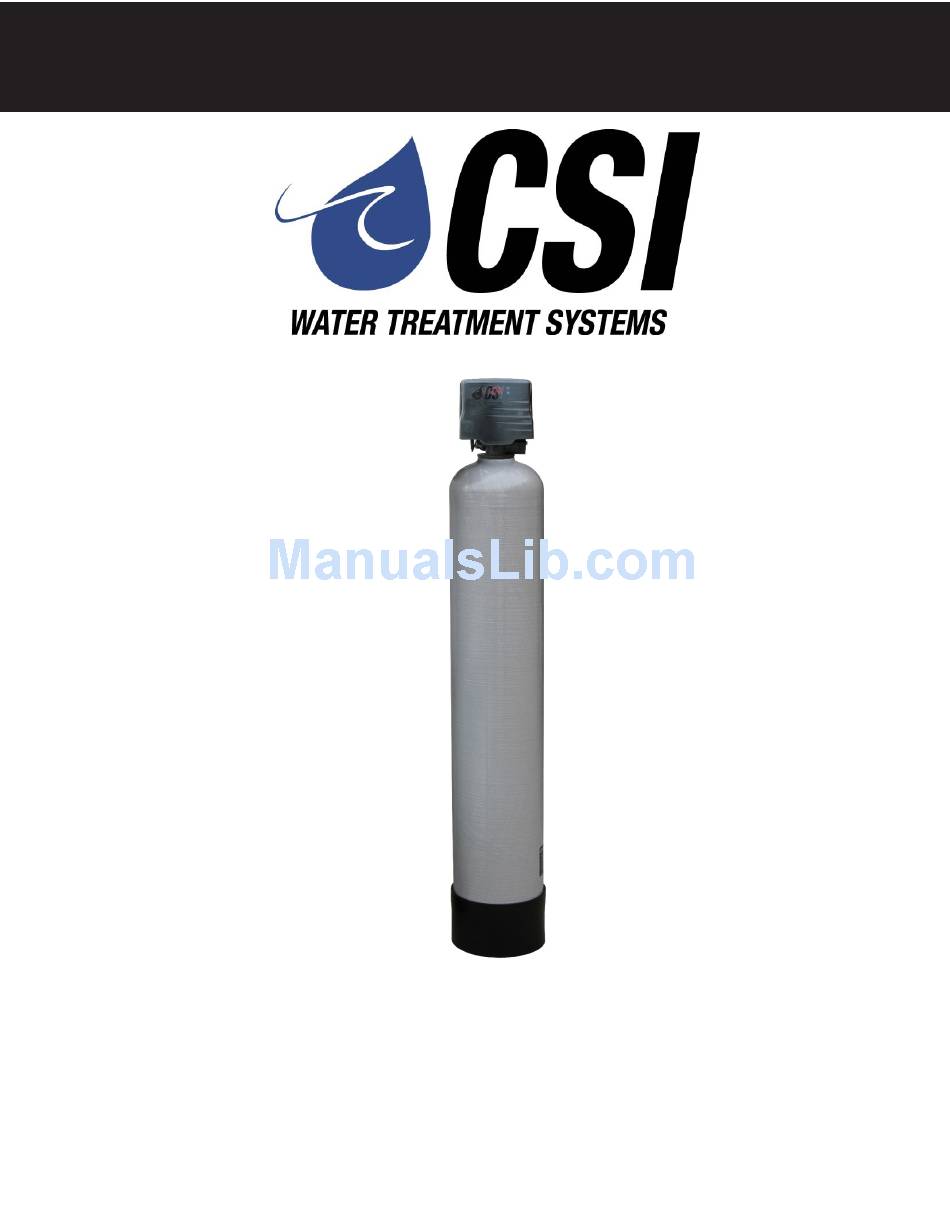

- Page 1 SIGNATURE 2 SERIES Signature 2 Series Filter Manual Installation / Operation Manual...
-
Page 2: Table Of Contents
SIGNATURE 2 SERIES Filter Specifications........................Page 3 Filter Media..........................Page 4 Installation...........................Page 5 Control Start-Up Procedures.......................Page 9 Utilizing Bluetooth........................Page 11 Master Programming........................Page 12 Powerhead Assembly........................Page 13 Valve Body Assembly........................Page 14 Bypass Assembly.........................Page 15 Additional Information........................Page 16 Troubleshooting...........................Page 17 Error Codes..........................Page 17... -
Page 3: Filter Specifications
SIGNATURE 2 SERIES Filter Specifications WF10-S2 WF15-S2 WF20-S2 WF25-S2 General Specifications WF30-S2 WF40-S2 Less Filter Media Filtration Filter Media Capacity (cu ft) Mineral Tank (Vortech ™) 9 x 48 10 x 54 12 x 52 13 x 54 14 x 65... -
Page 4: Filter Media
SIGNATURE 2 SERIES Filter Media Ship Wt. Media Description Handles... Used in... (lbs) Sediment SmartBlend Granular / White-Black / Filter Ag Plus and Katalox Nitro and Nitro Pro Iron (clear & red) SB75 Light / Max life expectancy about 8-10 years but is ReactR and HydroxR Manganese (clear &... -
Page 5: Installation
SIGNATURE 2 SERIES Installation Installation Requirements • A level floor position ahead of piping into water heater. • Unit must be installed at least 10’ ahead of the inlet to a water heater to prevent damage due to back-up of hot water. - Page 6 SIGNATURE 2 SERIES Installation Note: • If household plumbing is galvanized and you intend to make the installation with copper (or vice versa), obtain di-electric unions to prevent dissimilar metal corrosion. • All plumbing lines not requiring “soft” water should be connected “upstream” of the softener, if installed. (See Typical Installation Diagrams.)
- Page 7 SIGNATURE 2 SERIES Installation Installation Procedure - Water Supply Connection and Bypass Valve - To allow for filter servicing, swimming pool filling or lawn sprinkling, a manual Bypass Valve has been installed at the factory. The Bypass allows raw water to be manually routed around the filter.
- Page 8 SIGNATURE 2 SERIES Installation - Electrical Connection - 1. Connect the power supply to the control valve and plug into a 115 volt / 60 Hz receptacle. Note: Do not plug into an outlet controlled by a wall switch or pull chain that could inadvertently be turned off.
-
Page 9: Control Start-Up Procedures
SIGNATURE 2 SERIES Control Start-Up Procedures - Final Checkout - 1. Be certain that the bypass valve is in Service position and main valve is completely on. 2. Check electrical supply to be certain the cord is connected to an uninterrupted 115 volt outlet. -
Page 10: Normal Operation
SIGNATURE 2 SERIES Control Start-Up Procedures Normal Operation Home Display a. Alternates between the display of Time of Day and Number of Days until the Next Backwash. (Metered Softeners will alternate between time of days and gallons remaining until next regeneration) - Days Remaining until the Next Backwash will count down from the entered value until it reaches 1 day remaining. -
Page 11: Utilizing Bluetooth
SIGNATURE 2 SERIES Utilizing Bluetooth Control To take advantage of the Bluetooth interface this feature must be set up on a compatible Bluetooth enabled smart phones or tablets. Note: Valves with a revision number greater or equal to “C2.00” are only compatible with Bluetooth 4.0+ (a.k.a. -
Page 12: Master Programming
SIGNATURE 2 SERIES Master Programming Mode Master Programming Mode To enter Master Programming Mode, press and hold both buttons for 5 seconds. Note: All Master Programming functions have been preset at the factory. Unless a change is desired, it is NOT necessary to enter Master Programming Mode. -
Page 13: Powerhead Assembly
SIGNATURE 2 SERIES Control Valve Powerhead Assembly LETTERS IN DIAGRAM REPRESENT WIRING CONNECTIONS * "F" Port is for softener flow meter connection (flow meter not shown) Description Part Number Timered Power Head Assy. 21001X100 Metered Power Head Assy. 21003X100 Filter Circuit Boad Assy. -
Page 14: Valve Body Assembly
SIGNATURE 2 SERIES Valve Body Drive Assy. (Filter Version) Description Part # Qty. R e f Piston Assembly 20001X231 10-24 X 13/16” Screw 20001X226 Seal and Spacer Kit Incl (5) #3 20561X253 & (4) #4 End Spacer Flow Control Button 5.0 GPM 20251X272 Flow Control Button 7.0 GPM... -
Page 15: Bypass Assembly
SIGNATURE 2 SERIES Bypass Assembly Ref # Description Part # Plastic Bypass Valve Assembly 20561X292 Bypass Valve 3/4” Stainless Steel 20561X270 Bypass Valve 1” Stainless Steel 20561X283... -
Page 16: Additional Information
SIGNATURE 2 SERIES Service Instructions / Instructional Videos Available at www.csiwater.com General Preliminary Instructions PERFORM BEFORE ALL SERVICING OPERATIONS 1. Turn off water supply to filter. -If the filter installation has a “three valve” bypass system, first open the valve in the bypass line, then close the valves at the filter inlet and outlet. -
Page 17: Troubleshooting
SIGNATURE 2 SERIES Troubleshooting Guide SYMPTOM PROBABLE CAUSE CORRECTION Power supply plugged into Connect to constant power source intermittentent or dead power source 1.Filter Fails to Improper control valve Reset program settings Regenerate programming Automatically Defective power supply Replace power supply... - Page 18 Brine Tank Compoents 1 Year the price paid for the product. In no case shall CSI or seller be liable for REVERE Wireless Low Salt Alarm 90 Days any special, incidental, contingent or consequential damages. Special, incidental, contingent and consequential damages for which CSI is not * This warranty does not include media and/or cartridge filter elements.
- Page 19 SIGNATURE 2 SERIES...
- Page 20 SIGNATURE 2 SERIES CSI WATER TREATMENT SYSTEMS 710 Orange St, Ashland, OH 44805 l PH 419-281-6829 l FAX 419-281-2375 www.csiwater.com...
