Summary of Contents for CSI Terminatr TSI32

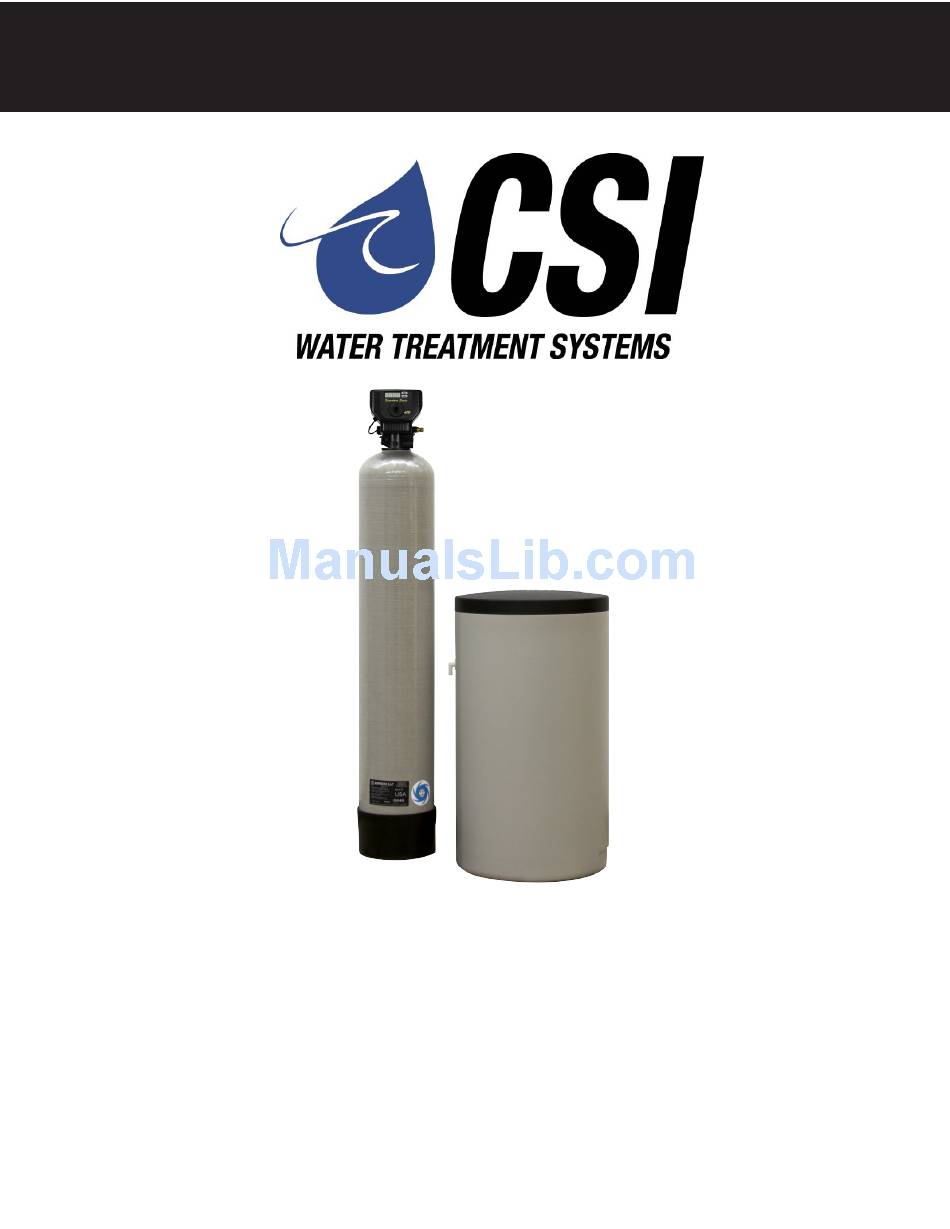

- Page 1 SIGNATURE SERIES Signature Series Terminatr™ Installation / Operation Manual...
-
Page 2: Register Your Product
SIGNATURE SERIES Softener Specifications....................Page 3 Softener Installation......................Page 4 Softener Capacity......................Page 8 Installing the Control Valve..................Page 10 Error Codes........................Page 11 Warranty.........................Page 12 Register Your Product Online at www.csiwater.com... -
Page 3: General Specifications
SIGNATURE SERIES Specifications TSI32 TSI48 TSI64 TSI96 General Specifications MSI32 MSI48 MSI64 MSI96 35,000 / 15 52,500 / 24 70,000 / 30 105,000 / 45 Grains Capacity - Regeneration / ** 32,000 / 9 48,000 / 15 64,000 / 18 96,000 / 27 Lbs Salt Used (Per Tank) 26,500 / 6... -
Page 4: Installation
SIGNATURE SERIES Installation PLEASE NOTE THESE SPECIFICATIONS BEFORE PROCEEDING Operating Pressure Range: 20 – 125 PSI Operating Temperature Range: 33º - 120º F Inlet / Outlet Pipe Size: 3/4” FNPT PLEASE COMPLY WITH ALL APPLICABLE PLUMBING CODES Please read the entire Owner’s Manual and Instructions before installation. This Owner’s Manual must stay with the unit. -
Page 5: Installation Requirements
SIGNATURE SERIES Installation Installation Requirements • A level floor position ahead of piping into water heater. • Unit must be installed at least 10’ ahead of the inlet to a water heater to prevent damage due to back-up of hot water. •... -
Page 6: Installation Procedure
SIGNATURE SERIES Installation Softener Location / Other Requirements • Locate the unit near an unswitched, 120 volt / 60 Hz grounded electrical outlet. • Check for distance and proper drain installation (e.g. floor drain, washing machine standpipe). • Determine type and size of piping required for softener connection (e.g. copper, galvanized, PVC plastic). Note: If household plumbing is galvanized and you intend to make the installation with copper (or vice versa), obtain di-electric unions to prevent dissimilar metal corrosion. -
Page 7: Electrical Connection
SIGNATURE SERIES Installation -Drain Line Connection- 1. Pull out clip and remove drain line assembly located on the left side of control valve. Remove drain line hose barb and wrap threads with Teflon tape. Reinstall drain line hose barb. Caution: Hand tighten only!! Replace drain line assembly and reinstall clip. -
Page 8: Programming The Control Valve
SIGNATURE SERIES Installation -Programming The Control Valve- Refer to page 2 of the Signature Series Service Manual for main menu programming and instruction. 1. Set the time of day. 2. Set a.m. or p.m. 3. Set water hardness in grains per gallon (gpg). Note: If the water contains iron and/or manganese, multiply the total parts per million (ppm) by “four”... - Page 9 SIGNATURE SERIES Installation -Start Up Procedure- Disinfection For disinfection of your softener, please follow the Sani-System Procedure on the back of the packet provided. Filling The Brine Tank With Salt To expect a high level of performance and reliability, a salt manufactured specially for water softeners must be used. Salt of this grade is virtually free from dirt and other particulate that would eventually cause the softener to malfunction.
- Page 10 SIGNATURE SERIES Installation General Care and Cleaning 1. Do not place heavy or sharp objects on water softener. 2. Use only mild soap and warm water to clean exterior of the unit. Never use harsh, abrasive cleaners. 3. Protect the water softener and drain line from freezing. 4.
- Page 11 SIGNATURE SERIES Error Codes Control Valve Error Code Diagnosis Under normal operating conditions, when your control valve is in the “in service” position, the display should alternate between the current time of day and the number of days remaining (for filters and time clock softeners) or gallons remaining (for metered softeners) until the next regeneration.
- Page 12 Brine Tank Components 1 Year the price paid for the product. In no case shall CSI or seller be liable for REVERE Wireless Low Salt Alarm 90 Days any special, incidental, contingent or consequential damages. Special, incidental, contingent and consequential damages for which CSI is not * This warranty does not include media and/or cartridge filter elements.
