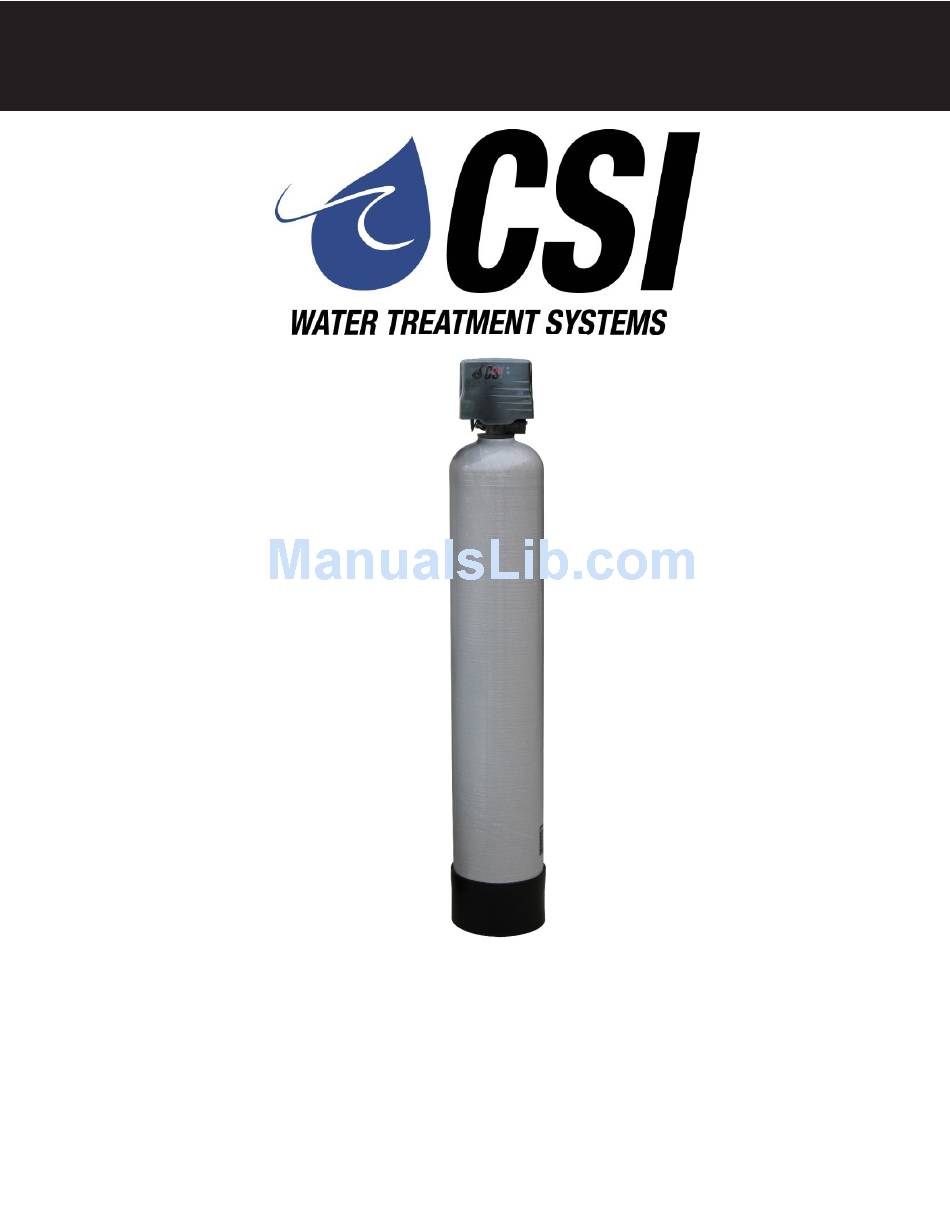

- Page 1 SIGNATURE 2 SERIES Arsenic / Heavy Metals Filter Manual Installation / Operation Manual...
-
Page 2: Table Of Contents
SIGNATURE 2 SERIES Filter Specifications........................Page 3 Project Data Form ........................Page 4 Media Disposal Considerations....................Page 5 Installation...........................Page 6 Control Start-Up Procedures.......................Page 10 Utilizing Bluetooth........................Page 12 Master Programming........................Page 13 Control Valve Powerhead Assembly...................Page 14 Valve Body Assembly........................Page 15 Bypass Assembly.........................Page 16 Additional Information........................Page 17 Troubleshooting...........................Page 19... -
Page 3: Filter Specifications
MUST be performed every six (6) months. For a lead / lag style system (two filters plumbed in series) the treated water sample should be taken between the two filters. CSI must be provided with a copy of the analysis results with system serial number and project name / address. -
Page 4: Project Data Form
SIGNATURE 2 SERIES Project Data Form The following information is required to size and estimate capacity of the Arsenic/Heavy Metals Filter; Water usage information Number of people living in the home _____________ X 75 = ___________________Estimated Total Gallons per day... -
Page 5: Media Disposal Considerations
Disposal of Titanium Oxide Media CSI Arsentic / Heavy Metals Filter Media is a titanium oxide based media that removes arsenic by adsorption to the media ma- trix. After many bed volumes (BV) of treated water the exhausted media is removed and replaced. -
Page 6: Installation
SIGNATURE 2 SERIES Installation Installation Requirements • A level floor position ahead of piping into water heater. • Unit must be installed at least 10’ ahead of the inlet to a water heater to prevent damage due to back-up of hot water. - Page 7 SIGNATURE 2 SERIES Installation Note: • If household plumbing is galvanized and you intend to make the installation with copper (or vice versa), obtain di-electric unions to prevent dissimilar metal corrosion. • All plumbing lines not requiring “soft” water should be connected “upstream” of the softener, if installed. (See Typical Installation Diagrams.)
- Page 8 SIGNATURE 2 SERIES Installation - Drain Line Connection - 1. Pull out clip and remove drain line assembly located on the left side of control valve. Remove drain line hose barb and wrap threads with Teflon tape. Reinstall drain line hose barb. Caution: Hand tighten only! Replace drain line assembly and reinstall clip.
- Page 9 SIGNATURE 2 SERIES Installation - Final Checkout - 1. Be certain that the bypass valve is in Service position and main valve is completely on. 2. Check electrical supply to be certain the cord is connected to an uninterrupted 115 volt outlet.
-
Page 10: Control Start-Up Procedures
SIGNATURE 2 SERIES Control Start-Up Procedures Normal Operation Home Display a. Alternates between the display of Time of Day and Number of Days until the Next Backwash. - Days Remaining until the Next Backwash will count down from the entered value until it reaches 1 day remaining. -
Page 11: Utilizing Bluetooth
SIGNATURE 2 SERIES Utilizing Bluetooth Control To take advantage of the Bluetooth interface this feature must be set up on a compatible Bluetooth enabled smart phones or tablets. Note: Valves with a revision number greater or equal to “C2.00” are only compatible with Bluetooth 4.0+ (a.k.a. -
Page 12: Master Programming
SIGNATURE 2 SERIES Master Programming Mode Master Programming Mode To enter Master Programming Mode, press and hold both buttons for 5 seconds. All Master Programming functions have been preset at the factory. Unless a change is desired, it is NOT Note: necessary to enter Master Programming Mode. -
Page 13: Control Valve Powerhead Assembly
SIGNATURE 2 SERIES Control Valve Powerhead Assembly LETTERS IN DIAGRAM REPRESENT WIRING CONNECTIONS * "F" Port is for softener flow meter connection (flow meter not shown) Description Part Number Filter Circuit Boad Assy. 21002X102 Encoder 20001X124 Front Plate 20001X004 Encoder Wheel... - Page 14 SIGNATURE 2 SERIES Valve Body Drive Assy. (Filter Version) Description Part # Qty. R e f Piston Assembly 20001X231 10-24 X 13/16” Screw 20001X226 Seal and Spacer Kit Incl (5) #3 20561X253 & (4) #4 End Spacer Flow Control Button 5.0 GPM 20251X272 Flow Control Button 7.0 GPM...
-
Page 15: Bypass Assembly
SIGNATURE 2 SERIES Bypass Assembly Ref # Description Part # Plastic Bypass Valve Assembly 20561X292 Bypass Valve 3/4” Stainless Steel 20561X270 Bypass Valve 1” Stainless Steel 20561X283... - Page 16 SIGNATURE 2 SERIES Service Instructions / Instructional Videos Available at www.csiwater.com General Preliminary Instructions PERFORM BEFORE ALL SERVICING OPERATIONS 1. Turn off water supply to filter. -If the filter installation has a “three valve” bypass system, first open the valve in the bypass line, then close the valves at the filter inlet and outlet.
-
Page 17: Troubleshooting
SIGNATURE 2 SERIES Troubleshooting Guide SYMPTOM PROBABLE CAUSE CORRECTION Power supply unplugged or plugged Connect to constant power source into intermittentent or dead power 1.Filter Fails to source Regenerate Improper control valve Reset program settings Automatically programming Defective power supply... - Page 18 Brine Tank Components 1 Year the price paid for the product. In no case shall CSI or seller be liable for REVERE Wireless Low Salt Alarm 90 Days any special, incidental, contingent or consequential damages. Special, incidental, contingent and consequential damages for which CSI is not * This warranty does not include media and/or cartridge filter elements.
- Page 19 SIGNATURE 2 SERIES...
- Page 20 SIGNATURE 2 SERIES CSI WATER TREATMENT SYSTEMS 710 Orange St, Ashland, OH 44805 l PH 419-281-6829 l FAX 419-281-2375 www.csiwater.com...
