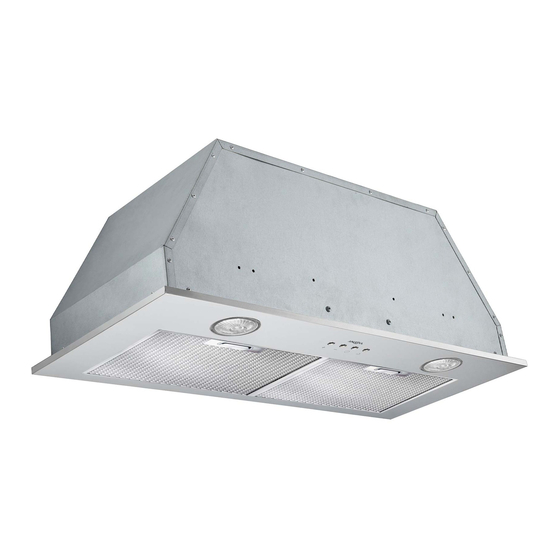

- Page 1 MODEL B428 28" IMPORTANT SAFETY INSTRUCTIONS Carefully read the following important information regarding installation safety and maintenance. Keep these instructions for future reference. 08/12/2015 MAAN-1305-01...
-
Page 2: Important Safety Notice
IMPORTANT SAFETY NOTICE READ AND SAVE THESE INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE INSTALLING AND OPERATING THIS APPLIANCE ● The installation in this manual is intended for qualified installers, service technicians or persons with similar qualified background. Installation and electrical wiring must be done by qualified professionals and in accordance with all applicable codes and standards, including fire-rated construction. - Page 4 Vent/Damper Mounting Screws Vent/Damper Mounting Screws (4pcs)
-
Page 5: Venting Requirements
VENTING REQUIREMENTS: HEIGHT & CLEARANCE: • Vent system must terminate to the outside (Roof or side wall). • DO NOT terminate the vent system in an attic or other enclosed area. • DO NOT use 4” (10.2 cm) laundry-type wall caps. - Page 10 Installations ( refer to Page 4 for parts): NOTE: Use threaded drywall anchors only when mounting the hood on sheet rock. Mounting the hood on wall studs or lumbars is highly recommended. For consumer safety reasons, mounting screws and anchors have not been supplied with this range hood.
-
Page 11: Installation
INSTALLATION: Step 4: Installing the hood • Remove the filters, halogen lights and the range hood cover. (See Fig #3) • Align range hood to the opening in the bottom of the cabinet and screw in. (See Fig #4) Fig #3 Fig #4 Step 5: Venting •... - Page 12 INSTALLATION: Step 6: Finishing installation To install the filters follow the following steps (See Fig #5): - Angle the filter into slots at the back of the hood. - Push the button on handle of the filter - Release the handle once the filter fits into a resting position - Repeat to install all filters Fig #5...
-
Page 13: Control Panel Operation
CONTROL PANEL OPERATION: Control Panel Layout and Buttons Configurations: Electronic Controls with Time Display Lights: Press the light button to turn halogen lights on and off. Power Settings: Press the + button once the motor starts to operate at low speed. Press the + button again and the motor will reach Medium speed. - Page 14 Fig #6 Metal bracket Socket Lightbulb Fig #7 2 Entryway Socket for bulb prongs Bulb with prongs This range hood uses halogen bulbs: 20W 120V Type GU-10 Steps to change the light bulbs: Removing old lightbulbs • Make sure the range hood is unplugged or turn OFF the electrical breaker. Remove the two aluminum mesh filters. •...
- Page 15 MEASUREMENTS AND DIAGRAMS:...
-
Page 16: Troubleshooting
TROUBLE SHOOTING: • Check if the range hood has been plugged in, 1) If the range hood or halogen light does not operate after installation: make sure that all power has been turned back ON,fused not blown and all electrical wiring are properly connected. -
Page 18: Specifications
SPECIFICATIONS: Body Design Stainless Steel 120V / 60Hz (USA & Canada standard) cULus certified Power Rating General Input Power 250 W Motor Input Power 210 W Ampere 2.2 A Levels Of Speed Control 3 Levels Airflow (L/M/H) 420 CFM 48 dB / 55 dB / 57.8 dB Noise Level (L/M/H) Number Of Motors Single Motor... - Page 19 Grid Motor Blower Impeller...
-
Page 20: Use And Care Information
USE AND CARE INFORMATION: Operations: • Read and understand all instructions and warnings in this manual before operating the appliance. Save these instructions for future reference. • Always leave safety grills and filters in place. Without these components, operating fans could catch on to hair, fingers and loose clothing.
