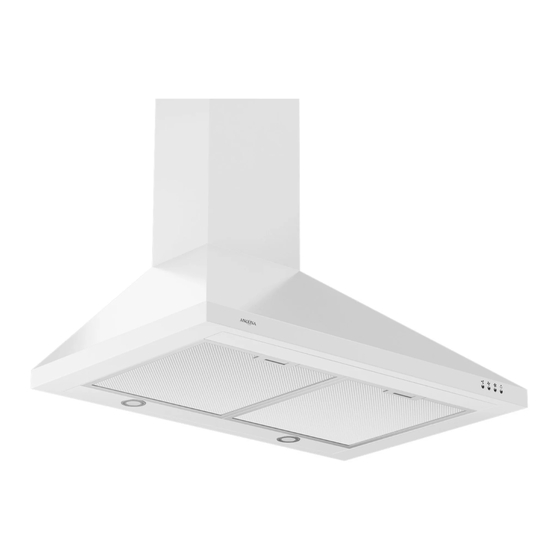

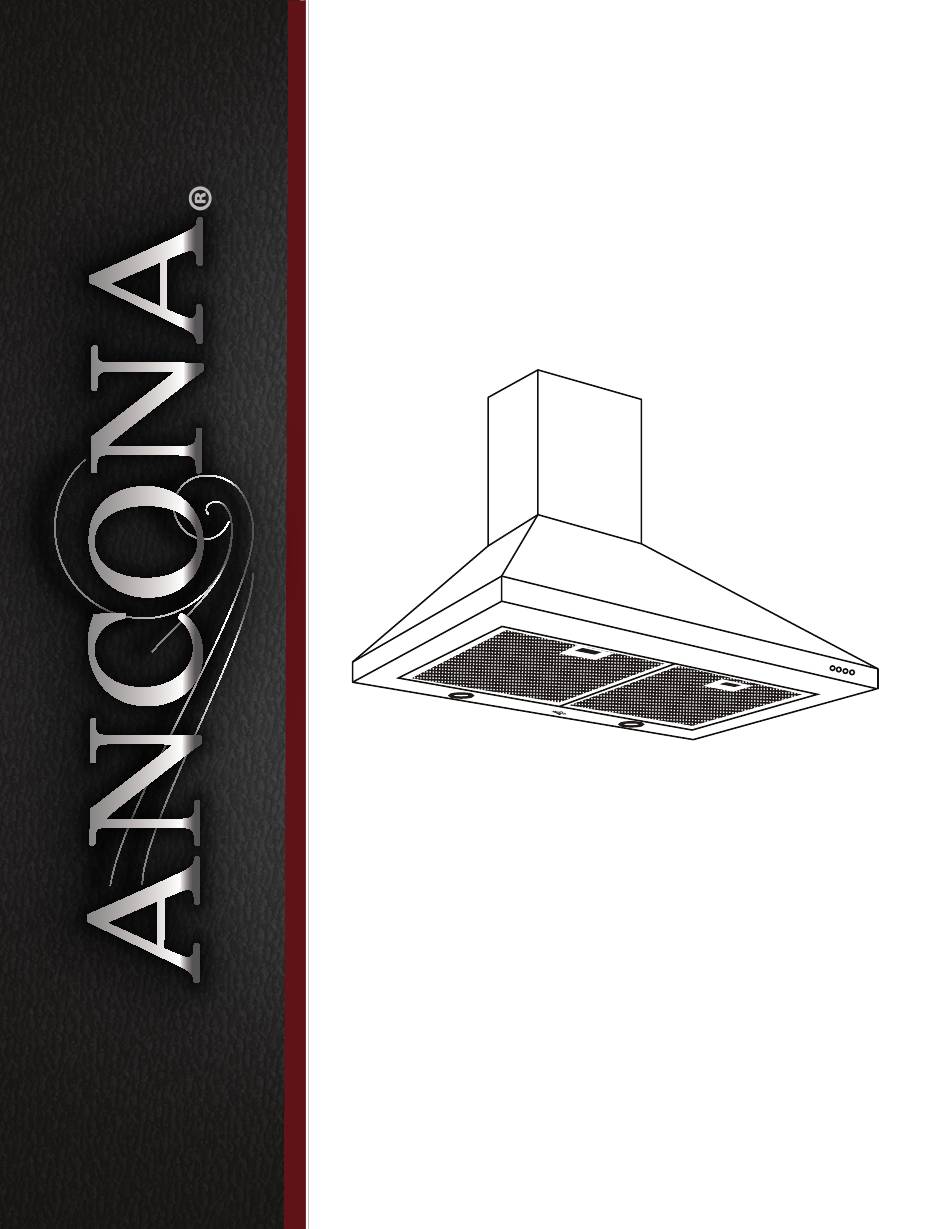

- Page 1 Range Hood WPPW430 and WPPW436 User Manual & Installation Instructions IMPORTANT SAFETY INSTRUCTIONS Carefully read the important information regarding installation, safety and maintenance. Keep these instructions for future reference. MAAN1184-04 2018-11-28...
-
Page 2: Before You Begin
Before You Begin INSTALLERS - Start Here Safety Instructions are on pages 4 and 5 and Installation Instructions are on pages 9 to 15. Please perform these steps: 1. Read the safety instructions. 2. Read all instructions in the Installation section of this manual BEFORE installing the range hood. -
Page 3: Table Of Contents
Table of Contents Before You Begin ..........................2 Table of Contents ..........................3 Important Safety Information ......................4 Included Parts ........................... 6 Range Hood Dimensions ........................7 Specifications ............................ 7 Mounting Brackets ..........................8 Installation ............................9 Step 1 - Read the Safety Instructions .................... 9 Step 2 - Unpack Range Hood and Prepare Tools ................ -
Page 4: Important Safety Information
Important Safety Information READ ALL INSTRUCTIONS BEFORE USE Read and follow all instructions before using the range hood to prevent the risk of fire, electric shock, personal injury, or damage when using the range hood or appliances with the range hood. This guide does not cover all possible conditions that may occur. - Page 5 Important Safety Information WARNING: TO REDUCE RISK OF A RANGE To reduce the risk of injury to persons in the TOP GREASE FIRE: event of a gas leaks: a) Never leave surface units unattended at high • Extinguish any open flame. settings. Boilovers cause smoking and greasy • DO NOT turn on the lights or any type of appliance.
-
Page 6: Included Parts
Included Parts Vent/Damper Lower Chimney Bracket Main Housing Upper Chimney Bracket Hood Mounting Bracket Lower Chimney 2 Filters (30 in.) 3 Filters (36 in.) 4 + 1 Screws (C) 4 + 1 Screws (D) Upper Chimney Hardware Note: For safety reasons, range hood mounting screws and anchors will not be included due to the variation of cabinetry constructions and wall material. -
Page 7: Range Hood Dimensions
Range Hood Dimensions 6.81’’ (173mm) 8.77’’ (223mm) 15.74” - 31.10’’ (400 - 790 mm) 8.85’’ (225 mm) 1.37’’(35mm) 29.40’’ (747 mm) / 19.68’’ (500mm) 35.3” (897 mm) Specifications Body Design Stainless Steel Power Rating 120 V / 60 Hz (cETLus Certified) Total Input Power 235.1 W (230 W + 2 * 2.55 W) Motor Input Power 230 W Amperage... -
Page 8: Mounting Brackets
Mounting Brackets Upper Chimney Bracket 5 1/8” (13 cm) 1 3/8” (3.5 cm) 8 21/32 (22 cm) Lower Chimney Bracket 7 7/8” (20 cm) 5 1/8” (13 cm) 1 3/8” (3.5 cm) 8 5/8” (21.9 cm) Mounting Bracket Hook 7 7/8” (20 cm) 3 15/16”... -
Page 9: Installation
Installation STEP 1 Read the Safety Instructions • It is very important to read the safety instructions on pages 4 and 5. IMPORTANT: It is the installer’s responsibility to comply with installation clearances. STEP 2 Unpack Range Hood and Prepare Tools • Carefully unpack the range hood and parts. -
Page 10: Step 5 - Venting Installation Guidelines
Installation STEP 5 Venting Installation Guidelines • The following steps are for exterior ventilation. • If you require a ductless installation, please visit anconahome.com to purchase a recirculation kit. For the most efficient and quiet operation: IMPORTANT: • It is recommended that the range hood be vented • Vent system must terminate to the outside (roof or side wall). vertically through the roof through 6 in. - Page 11 Installation electric cook tops and minimum of 30-inch (76.2 cm) IMPORTANT: for gas stove tops and no higher than 30-inch (76.2 cm) • A minimum of 6 in. (15.2 cm) round or 3-1/4 x 10 in. (25.4 cm for electric cook tops. x 8.3 cm) rectangular duct (purchased separately) must be • It is important to install the hood at the proper mounting used to maintain maximum airflow efficiency.
-
Page 12: Step 6 - Preparations
Installation STEP 6 Preparations NOTE: To avoid damage to your hood, prevent debris from entering the vent opening. • Determine and mark the center line on the ceiling or wall where the range hood will be installed. • Make sure there is proper clearance within the ceiling or wall for exhaust vent. • Due to the weight and size of this unit, please make sure that the support system or framework being used is stable and secure in the ceiling or wall. -
Page 13: Step 9 - Venting
Installation STEP 9 Venting • Fix the damper on the top vent of hood with 4 screws (C). (See Figure #2) • If ventilation system is equipped with an external air duct with a different diameter, apply a reduction fitting. However, for maximum performance and safety, a 6 in. -
Page 14: Step 13 - Connect To Ac
Installation • Hook lower chimney bracket to lower chimney. (See Figure #5) • Screw lower mounting bracket onto wall. • Screw the upper chimney to the upper mounting bracket (Screw D). (See Figure # 6) Fig #5 Fig #6 STEP 13 Connect to AC • Connect AC plug into a grounded AC outlet having 120V, 3-Pronged Plug... -
Page 15: Step 14 - Install Filters
Installation STEP 14 Install Filters To install filters follow the steps below (See Figure # 7): • Angle the filter into slots at the back of the hood. • Push the button on handle of the filter. • Release the handle once the filter fits into a resting position. • Repeat to install all filters. -
Page 16: Operation
Operation Medium High Light Speed Speed Speed Power Settings Lights Press the button once and the motor starts to Press the light button to turn LED lights on and operate at Low speed. off. Press the button and the motor will reach Medium speed. -
Page 17: Range Hood Assembly
Range Hood Assembly Number Part Air pipe Bracket of upper chimney Upper chimney Bracket for lower chimney Lower chimney Metal wind block Hook plate Power cord Body assembly (including shell, lamp plate, top plate, wrap angle, bracket of lamp plate) Electronic switch box Electronic switch Bracket of electronic switch box... -
Page 18: Assembly
Assembly Circuit Diagram Blower Assembly Number Part Blower Wind Wheel Nut Wind Wheel Motor Incabloc Rubber Aluminum Cover Plastic Wind Net Sealing Gasket Electrical Assembly Number Part Electrical Box Bracket Electrical Box Base Capacitor Electrical Box Cover — 18 —... -
Page 19: Use And Care Information
Use and Care Information Operations • Read and understand all instructions and warnings in this manual before operating the appliance. Save these instructions for future reference. • Always leave safety grills and filters in place. Without these components, operating fans could catch on to hair, fingers and loose clothing. - Page 20 Ancona is in association with Mr Appliance for all after sales service calls. Please contact their service provider or visit their website: Phone: 888-998-2011 Website: www.mrappliance.com MAAN1184-04 © 2018 Copyright of Ancona Home. All rights reserved. This material may not be reproduced, displayed, modified or distributed. — 20 —...
