Summary of Contents for Ancona SLIM D

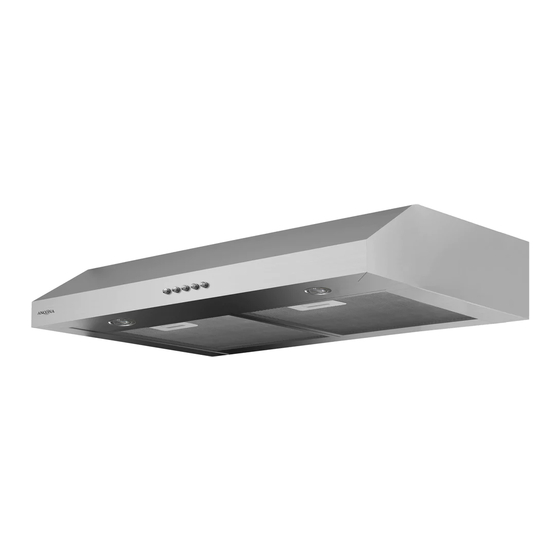

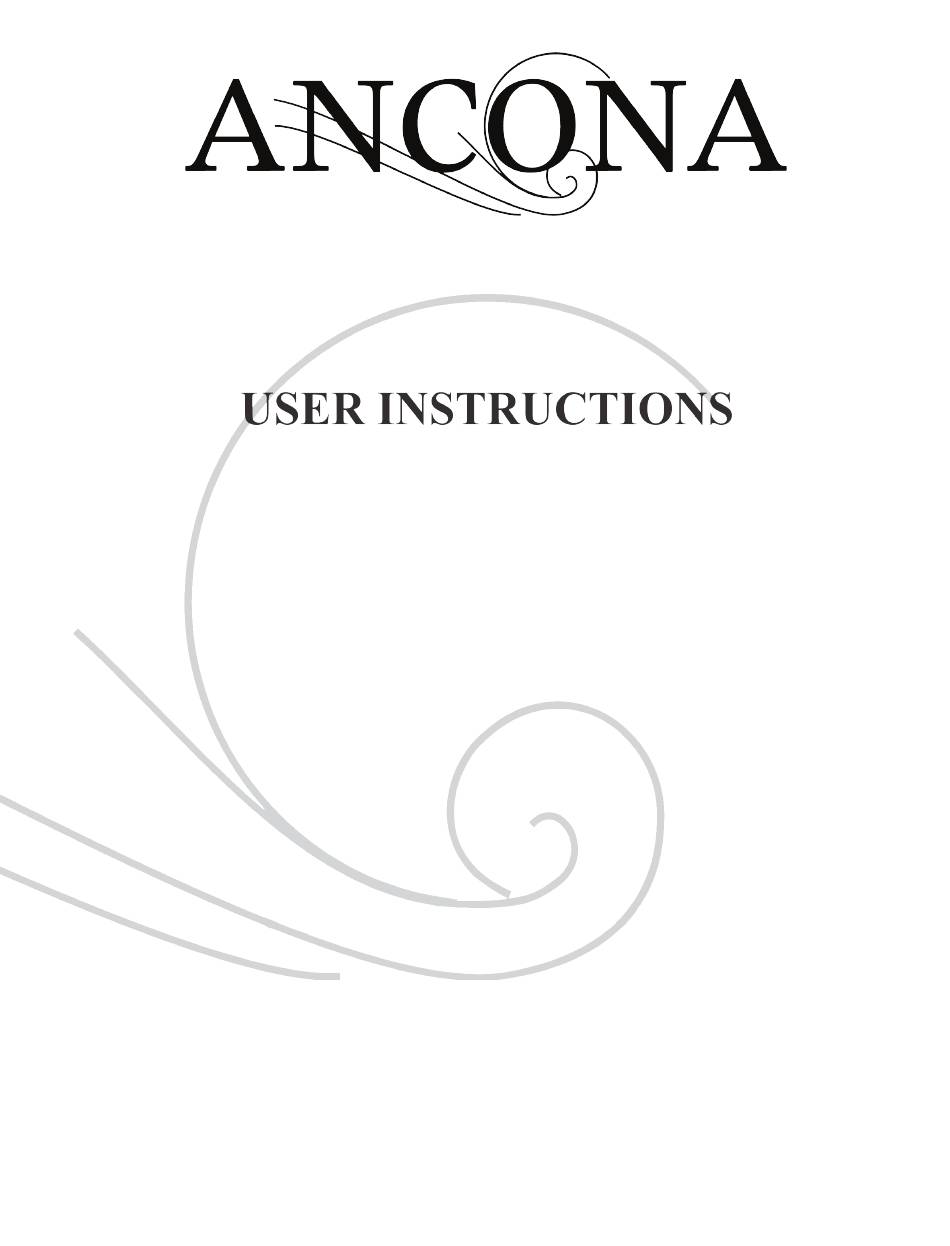

- Page 1 MODEL: SLIM D MODEL MODEL: TRINA 30 & 36 IMPORTANT SAFETY INSTRUCTIONS Carefully read the following important information regarding installation safety and maintenance. Keep these instructions for future reference. 05/22/2015 MAAN1210-7...
-
Page 2: Important Safety Notice
IMPORTANT SAFETY NOTICE READ AND SAVE THESE INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE INSTALLING AND OPERATING THIS APPLIANCE The installation in this manual is intended for qualified installers, service technicians or persons with ● similar qualified background. Installation and electrical wiring must be done by qualified professionals and in accordance with all applicable codes and standards, including fire-rated construction. - Page 3 IMPORTANT SAFETY NOTICE READ AND SAVE THESE INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE INSTALLING AND OPERATING THIS APPLIANCE WARNING: TO REDUCE RISK OF A RANGE TOP GREASE FIRE: a) Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite.
-
Page 4: Parts Supplied
PARTS SUPPLIED:... -
Page 5: Height & Clearance
VENTING REQUIREMENTS: HEIGHT & CLEARANCE: • Vent system must terminate to the outside (Roof or side wall). • DO NOT terminate the vent system in an attic or other enclosed area. • DO NOT use 4” (10.2 cm) laundry-type wall caps. -
Page 6: Calculating Vent System Length
IMPORTANT: • A minimum of 6” round or 3-1/4 x 10” rectangular duct (purchased separately) must be used to maintain maximum airflow efficiency. • Always use rigid type metal/aluminum ducts if available to maximize airflow when connecting to provided duct. •... -
Page 7: Venting Methods
VENTING METHODS: • This range hood is factory set for venting through the roof or wall. • Vent work can terminate either through the roof or wall. To vent through a wall, a 90° elbow is needed. IMPORTANT: NEVER exhaust air or terminate duct work into spaces between walls, crawl spaces, ceiling, •... -
Page 8: Electrical Requirements
ELECTRICAL REQUIREMENTS: IMPORTANT: Observe all governing codes and ordinances. It is the customer’s responsibility to contact a qualified electrical installer. If codes permit and a separate ground wire is used, it is recommended that a qualified electrician determine that the ground path is adequate. A 120-Volt, 60 Hz, AC-only, fused electrical supply is required on a separate 15-amp circuit, fused on both sides of the line. - Page 9 PREPARATIONS: Advanced Preparations: Be familiar with the controls of the range hood by reading through Range Hood Operations, Page 14. • • Place the range hood on a flat, stable surface. Connect the range hood to a designated standard outlet (120-Volt, 60Hz, AC only) and turn on the range hood.
- Page 10 NEW INSTALLATION: ep 5: Venting Step 1: Create Exterior Ventilation • Choose one of the exterior venting methods shown on Page 7. • Create the exterior ventilation hole. • Insert exterior damper into exterior ventilation hole. • Following recommendations and calculations specified on Pages 5 to 9, use new aluminum/metal ducting cut specifically for the distance between the range hood damper and the exterior damper.
- Page 11 NEW INSTALLATION: Step 5: Installing the Hood Step 6: Venting certified aluminum or foil tape so that it is air tight. Please check the building codes in your city to learn which tape product is recommended. Step 7: Electrical Connection DON’T FORGET TO CONNECT THE GROUND! •...
-
Page 12: Replacement Installation
REPLACEMENT INSTALLATION:... - Page 13 REPLACEMENT INSTALLATION: Step 5: Venting certified aluminum or foil tape so that it is air tight. Please check the building codes in your city to learn which tape product is recommended. Step 6: Electrical Connection DON’T FORGET TO CONNECT THE GROUND! •...
- Page 14 • Lights: o Press the light button to turn halogen lights on and off. • Power settings: t t u s t r t t u t t u . f f...
- Page 15 REPLACING THE BULBS: Step 1: Important! Turn off the power off to your range hood. Fig. #7 Step 2: Line up the arrow on the metal ring around the edge of the bulb with the arrow on the range hood. (See Fig. # 7) Step 3: Turn the ring counter- clockwise until the little hooks on the metal ring are unlocked and remove the metal ring and bulb.
- Page 16 MEASUREMENTS AND DIAGRAMS:...
-
Page 17: Troubleshooting
TROUBLE SHOOTING: 1) If the range hood or halogen light does not • Check if the range hood has been plugged in, operate after installation: make sure that all power has been turned back ON,fused not blown and all electrical wiring are properly connected. -
Page 18: Range Hood Assembly
RANGE HOOD ASSEMBLY: Wire Housing Light Light board Switch bracket Electronic switch Electronic box cover PCB board Capacitor Electronic box base Filters Motor Blower of motor Fly wheel Safety screen Safety screen Spacer... -
Page 19: Specifications
SPECIFICATIONS: Stainless steel Body design 120V / 60Hz (USA & Canada standard) cETLus Certified Power rating 170W Total input power 100W Motor input power 1.45A Total Ampere Levels of speed control 3 levels Radio frequency interference protected Interference Protection Low Speed 2.0 Sones Noise Level Single motor Number of Motor... -
Page 20: Blower Assembly
BLOWER ASSEMBLY: Description Description Blower of motor Safety screen Motor Fly Wheel ELECTRICAL ASSEMBLY: Description Description Electrical box cover Capacitor Electrical box base Electrical box bracket... - Page 21 USE AND CARE INFORMATION: Operations: • Read and understand all instructions and warnings in this manual before operating the appliance. Save these instructions for future reference. • Always leave safety grills and filters in place. Without these components, operating fans could catch on to hair, fingers and loose clothing.
- Page 22 Subject to the limitations, exclusions and disclaimers hereof, AMS warrants exclusively to the original purchaser (the “Purchaser”) of this Ancona Range hood product (the “Product”) that it shall be free from defects in material or workmanship (the “Limited Product Warranty”). The duration of the Limited Product Warranty is 12 months from the date of original purchase (the “Warranty Period”).
