FortiGate 6000F series hardware description
execute load-balance slot nmi-reset 1,3-4

FortiGate 6000F series back panel

The FortiGate 6000F series back panel includes three hot swappable cooling fan trays and three hot swappable
redundant AC power supply units (PSUs). For more information on power connections and redundant power, see
FortiGate 6000F AC power supply units (PSUs) on page
The FortiGate 6000F DC models include two hot swappable -48 to -60 VDC, 50A max DC PSUs. For DC power
information, see DC PSUs and supplying DC power to a FortiGate 6000F on page
The back panel also includes the FortiGate 6000F ground connector that must be connected to ground.

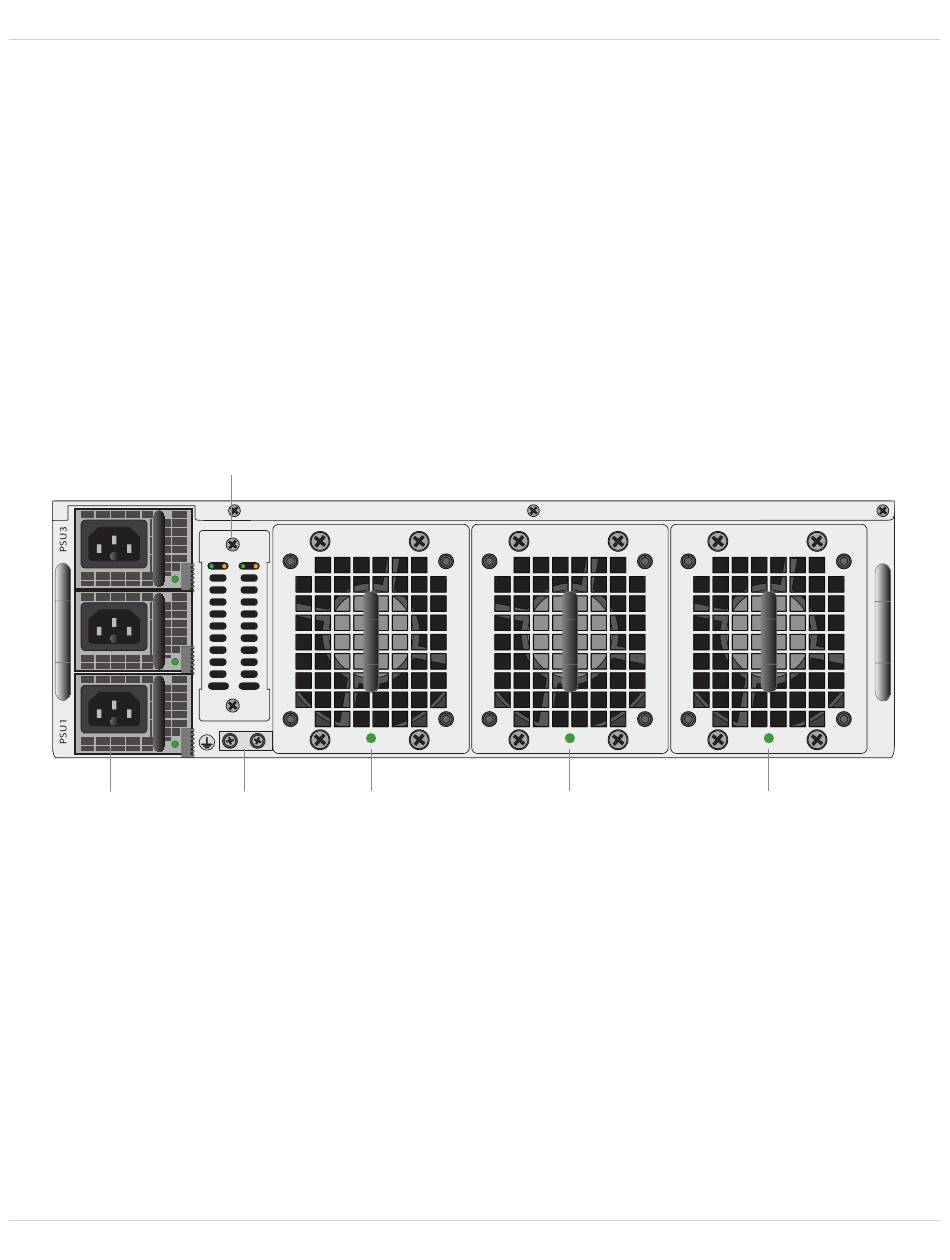

FortiGate 6000F back panel (FortiGate 6501F AC model shown)
SSD Log Disks
(6501F and 6301F)
Power
Supplies
1, 2, and 3

FortiGate 6000F series schematic

FortiGate 6000F hardware includes a data plane and a management plane. The data plane processes customer network
data. The management plane handles management functions such as administrator logins, configuration and session
synchronization, SNMP, and other monitoring, HA heartbeat communication, and remote and (if supported) local disk
logging. Separating these two planes means that resources used for data processing are not compromised by
management activities.
In the data plane, two DP3 load balancers use session-aware load balancing to distribute sessions from the front panel
interfaces (port1 to 28) to Fortinet Processor Cards (FPCs). The DP3 processors communicate with the FPCs across the
