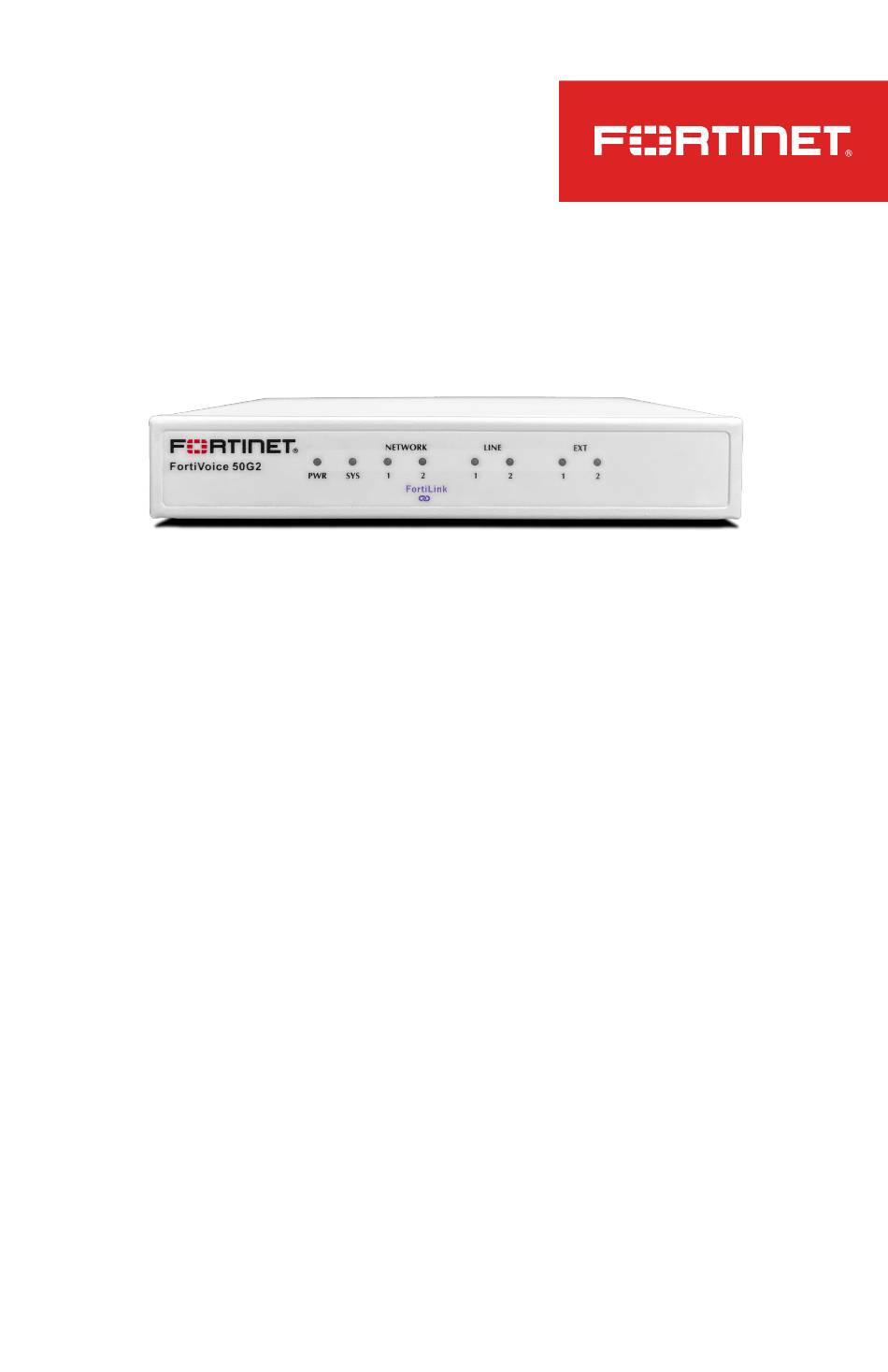

- Page 1 FortiVoice 50G2 FVE-50G2 QuickStart Guide...
- Page 2 Fortinet. For absolute clarity, any such warranty will be limited to performance in the same ideal conditions as in Fortinet’s internal lab tests.
-
Page 3: Before You Begin
Before you begin Register your device to access FortiGuard updates, cloud management, firmware upgrades, technical support and warranty coverage. https://support.fortinet.com... - Page 4 Deployment Guide and Administration Guide. Customer Service For contracts, licensing, product registration, and account management, contact FortiCare Support at https://www.fortinet.com/support/contact. Technical Support To access our Resource Center, Professional Services and Technical Support Services, visit https://www.fortinet.com/support. Thank you for choosing Fortinet...
-
Page 5: Package Contents
Package Contents FortiVoice 50G2 FVE-50G2 1 FortiVoice 50G2 device 1 QuickStart Guide 1 plug adapter (Europe version) 1 plug adapter (North America version) 1 plug adapter (UK version) 1 power adapter 1 Ethernet cable... -
Page 6: Setup Options
Setup Options Port 1 Management Computer Ethernet Cable Configure the management computer to be on the same subnet as the internal interface as the FortiVoice Gateway unit: IP address: 192.168.1.x Netmask: 255.255.255.0... - Page 7 Speed (default): 115200 Data bits: Stop bits: Parity: None Console Cable Flow Control: None Console Port Management Computer In the terminal emulation program, log in using admin and no password.
-
Page 8: Desktop Installation

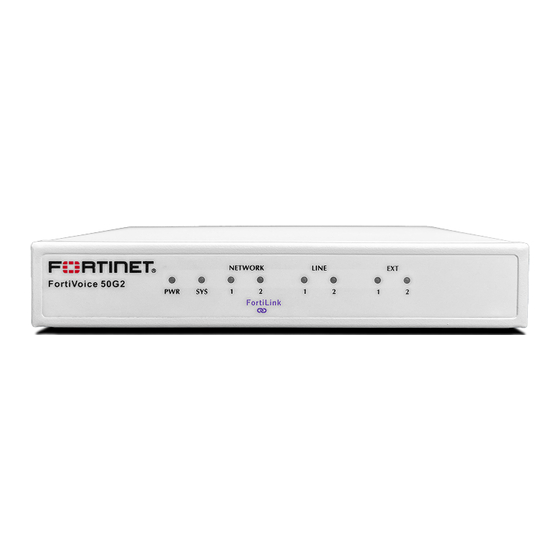

Desktop Installation 1.5in 1.5in 1.5in 1.5in 1. Place the FortiVoice unit on a flat, clean, and stable surface. 2. Make sure that there is at least 1.5 in (3.8 cm) of clearance on all sides of the unit to allow for adequate airflow. 3. - Page 9 Front view of FVE-50G2 Green: The unit is on. Off: The unit is off. Green: The system is ready. Off: The system is not ready. NETWORK Green: The Ethernet port is ready. Flashing Green: The Ethernet port is in use. Off: No link is established.
- Page 10 Back view of FVE-50G2 This port is not in use. FXS ports 1 and 2. Type RJ-11. Connect to analog phones. LINE FXO ports 1 and 2. Type RJ-11. Connect to PSTN networks. Console RJ45 CLI management. Network Ethernet ports for connection to your network and the internet Power Power connection 12V DC 1A.
- Page 11 Cautions and Warnings Environmental specifications Ambient operating temperature: 0°C to 40°C Refer to specific Product Model Data Sheet for Environmental Specifications (Operating Temperature, Storage Temperature, Humidity, and Altitude) Référez à la Fiche Technique de ce produit pour les caractéristiques environnementales (Température de fonctionnement, température de stockage, humidité et l’altitude). Safety Battery –...
- Page 12 The telephone company may ask that you disconnect this equipment from the network until the problem has been corrected or until you are sure that the equipment is not malfunctioning. If you experience trouble with this equipment, or repair or warranty information, please contact the following address and phone number for information. Fortinet Inc. 899 Kifer Road, Sunnyvale, CA 94086 USA 1-866-393-9960 (US and Canada) 1-613-725-2466 (International) It is recommended that the customer install an AC surge arrester in the AC outlet to which this device is connected.
- Page 14 Fortinet.com...
