Summary of Contents for Fortinet FortiGate 900G Series

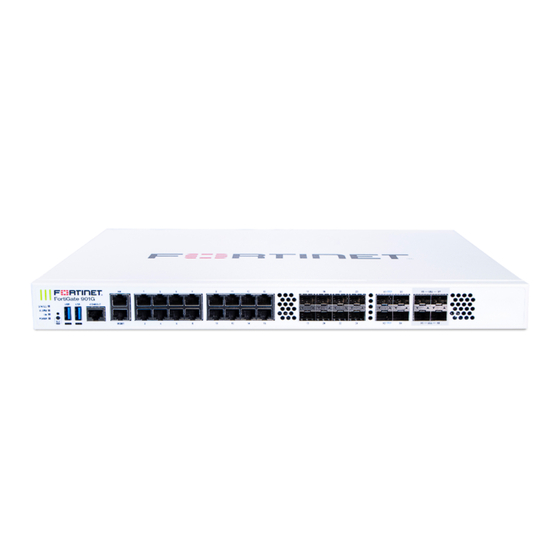

- Page 1 QuickStart Guide FortiGate 900G Series FG-900G and FG-901G...
-
Page 2: Before You Begin
Fortinet. For absolute clarity, any such warranty will be limited to performance in the same ideal conditions as in Fortinet’s internal lab tests. -
Page 3: Package Contents
1x Console Cable contact FortiCare Support at https://www.fortinet.com/support/contact Technical Support To access our Resource Center, Professional Services and Technical Support Services, visit https://www.fortinet.com/support Thank you for choosing Fortinet 4x Rubber Feet 2x SFP SX Transceivers 2x Mounting Brackets 8x Bracket Screws... - Page 4 Scan QR Code to Follow the on-screen Install instructions Note: For a detailed CLI guide, visit docs.fortinet.com Note: Enable Bluetooth on your mobile device for BLE or connect your mobile’s USB cable into the device Port 1 Management Computer Ethernet Cable Note: Configure the management computer with IP 192.168.1.x and...
-
Page 5: Installation
Installation SFP Modules Insertion Cage Socket Removal Cage Socket Lock Caution: To avoid personal injury or damage to the device, it is recommended that two or more people mount the device on a rack. Note: The recommended clearance is 1.5 inches above and below the device. - Page 6 FG-900G Series Front Panel X5 — ULL — X7 FortiGate 900G CONSOLE MGMT X6 — ULL — X8 STATUS Ports 1 to 16 (RJ45) RJ45 Ports Green: Operating normally Green: Operating in an HA cluster MGMT1 LINK/ACT Flashing Green: Booting up Red: HA failure FortiGate 3500F Green: Link established...
-
Page 7: Power Input
FG-900G Series Rear Panel SSD2 SSD1 PWR2 PWR1 FAN1 FAN2 FAN3 FAN4 FAN5 Power Input 100-240VAC, 50/60Hz, 6A Max (2x PSU) 1+1 Redundant, hot-swappable power supplies Input LED Indicators Green: Input voltage within normal range Green: Over or under voltage warning Flashing Off: No input power Output LED Indicators... -
Page 8: Cautions And Warnings
Cautions and Warnings Do not put any load on the slide-rail mounted equipment in the installation position. Não coloque nenhuma carga no equipamento montado em trilho deslizante na posição de instalação. Environmental specifications Ambient operating temperature: 0°C to 40°C Do not leave the slide-rail mounted equipment in the installation position. Não deixe o equipamento montado em trilho deslizante na posição de instalação. - Page 9 EU or countries that have implemented the EU Directives and/or spectrum regulation. Any Fortinet products not obtained directly from Fortinet or Fortinet’s authorized partners may not comply with EU Directives and Fortinet この装置は、クラスＡ機器です。この装置を住宅環境で使用すると電波妨害を引き起こすことがあります。この場合には使用者が適切な対策を...
- Page 11 Fortinet.com...
