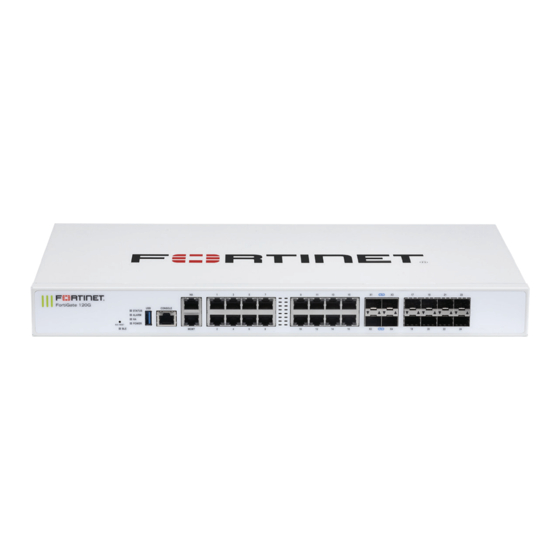

- Page 1 QuickStart Guide FortiGate 120G Series FG-120G and FG-121G...
-
Page 2: Before You Begin
Fortinet. For absolute clarity, any such warranty will be limited to performance in the same ideal conditions as in Fortinet’s internal lab tests. -
Page 3: Package Contents
2x Power Cables 1x Ethernet Cable contact FortiCare Support at https://www.fortinet.com/support/contact Technical Support To access our Resource Center, Professional Services and Technical Support Services, visit https://www.fortinet.com/support Thank you for choosing Fortinet 4x Rubber Feet 8x Bracket Screws 2x Mounting Brackets... - Page 4 Download FortiExplorer Follow the on-screen for your OS instructions Note: For a detailed CLI guide, visit https://docs.fortinet.com Note: Enable Bluetooth on your mobile device for BLE or connect your mobile USB cable into the device Port 1 Management Computer Ethernet Cable Note: Configure the management computer with IP 192.168.1.x and...
-
Page 5: Installation
Installation SFP Modules Insertion Cage Socket Removal Cage Socket Lock Caution: To avoid personal injury or damage to the device, it is recommended that two or more people mount the device on a rack. Note: The recommended clearance is 1.5 inches above and below the device. - Page 6 FG-120G Series Front Panel FortiGate 120G CONSOLE BLE/RESET MGMT HA (RJ45) BLE/RESET Button Press to enable BLE; press and hold for system reset Blue: BLE connected LINK/ACT (Left LED) SPEED (Right LED) Flashing Blue: BLE in discovery Green: 1 Gbps Green: Link established Off: BLE not connected Amber: 100 Mbps...
- Page 7 FG-120G Series Rear Panel AC LINE AC LINE 100-240V AC 100-240V AC 50-60Hz 1.5A MAX 50-60Hz 1.5A MAX PSU1 PSU2 Redundant Power Supplies (PSU1, PSU2) 100-240VAC, 50-60Hz, 1.5A Max...
- Page 8 Cautions and Warnings Regulatory Notices Environmental specifications Federal Communication Commission (FCC) – USA Ambient operating temperature: 0°C to 40°C This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: Rack Mount Instructions - The following or similar rack-mount instructions are included with the installation instructions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received;...
- Page 9 EU or countries that have implemented the EU Directives and/or spectrum regulation. Any Fortinet products not obtained directly from Fortinet or Fortinet’s authorized partners may not comply with EU Directives and Fortinet The full Declaration of Conformity for this product is available in the link below: makes no assurances for such products.
- Page 11 Fortinet.com...
