OEM Controller
The main connection points for the OEM Controller unit are shown below:
7

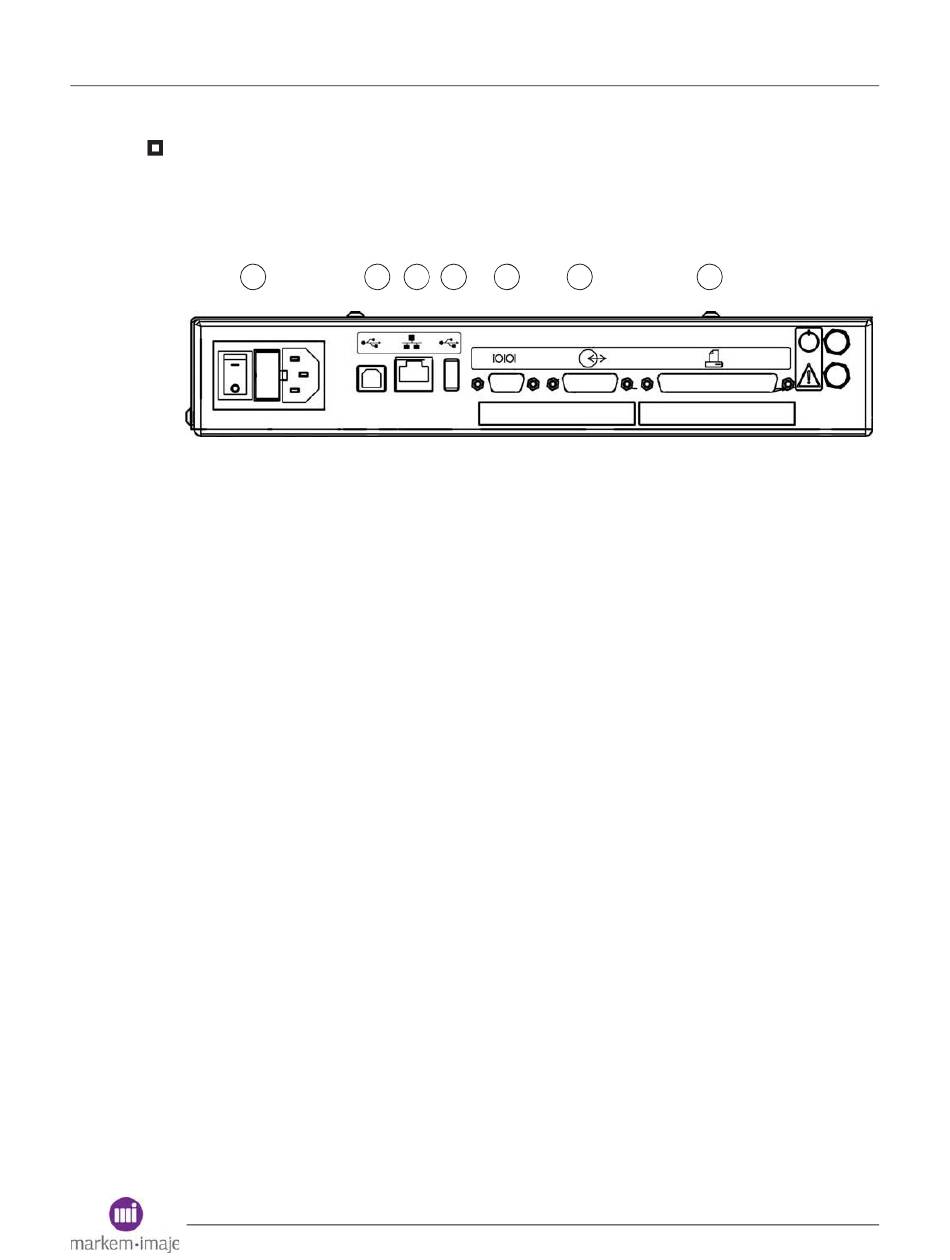

Controller Connection Points (Rear View)
1. USB-B Connector
2. Ethernet Connector.
3. USB-A Connector
4. RS-232 Comms Connector.
5. External I/O Connector.
6. Printer Power / Control Connector.
7. Mains Connector, Fuse and Power Switch.
The D-Type connectors must be fitted such that a tool is required to undo them. At no
point should the unit be powered until these are securely attached to each unit.
1
2
3
4
214
5
6
10055363-AB
