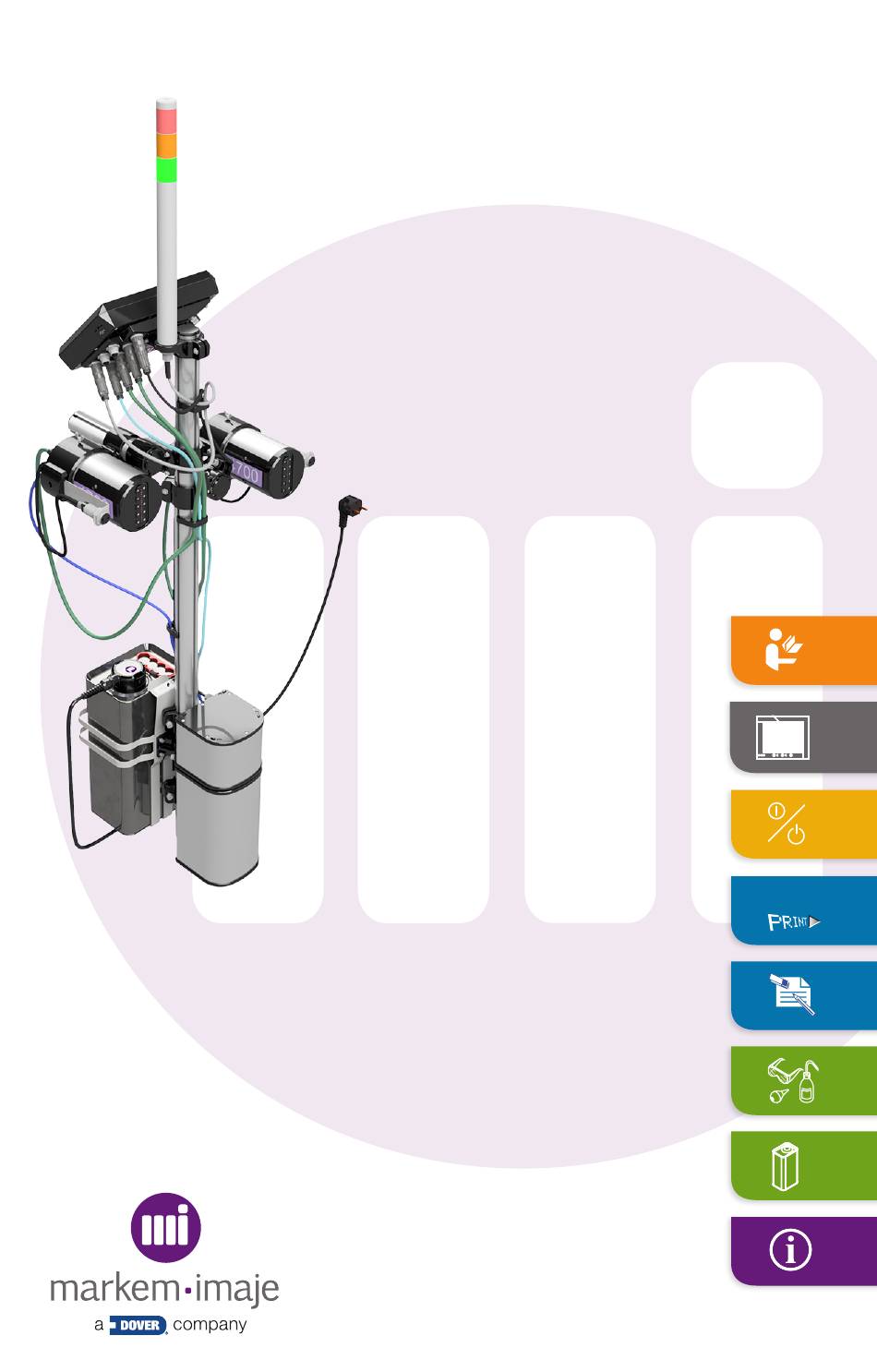

Instruction manual
4700
The
health
and
safety
instructions,
translations
of
the Declaration of Conformity,
are set out in the document
supplied with your printer, as
well as in PDF format on your
DVD.
Printer
and Interface overview
Starting up /
Shutting down the Printer
Printing the current jobs
Editing and Previewing jobs
Printer maintenance
Ink canister replacement
Troubleshooting
Information
Advertisement
Table of Contents
Related Manuals for Markem Imaje 4700
Summary of Contents for Markem Imaje 4700
-
Page 1: Troubleshooting
Instruction manual 4700 health safety instructions, translations the Declaration of Conformity, are set out in the document supplied with your printer, as well as in PDF format on your DVD. Printer and Interface overview Starting up / Shutting down the Printer... -
Page 2: Printer Overview

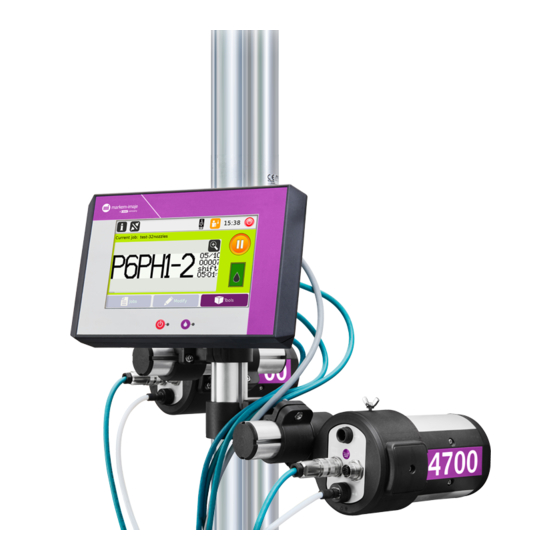

Printer overview 1. Printheads with photocells 1a and nozzle plate 1b 2. Control Unit (display: 7"/177.8mm diagonal) 3. Ink system with ink filter 3a 4. Ink canister (4a: 5 litres, 4b: 20 litres) 5. Pick-up unit 6. Case with latch 6a for a 5-liter ink canister 7. -
Page 3: Interface Overview
Interface overview This manual applies to the 4700 printer with two printheads, either of them printing a separate job. The user interface is similar for the 4700 printer with one printhead or with two printheads printing one job. 1. Printer information bar, coloured background 2. - Page 4 Menu map Instruction manual...
- Page 5 Menu map * available for available for ■ Instruction manual...
-
Page 6: Starting Up The Printer
Starting up the printer 00:00:30 00:00:15 The jobs BOX_TOP and BOX_FRONT are ready for printing. Instruction manual... -
Page 7: Shutting Down The Printer
Shutting down the printer Press to shut down To shut down the printer the printer in regular in emergency mode, press and hold mode. for 4 seconds. 00:02:00 00:00:05 if necessary Instruction manual... - Page 8 Printing the current jobs The jobs BOX_TOP and BOX_FRONT are ready for printing. press either Update any variable fields, if used in the jobs, or enter values for the fields with the attribute “edit before printing”. Printing the jobs BOX_TOP and BOX_FRONT.
- Page 9 Printing the current jobs A: active photocell * fixed speed printing (with no encoder) Pause Start Instruction manual...
- Page 10 Selecting a job to print Press (Jobs). Jobs selected to print with both of the printheads Select a job to print (1). Job preview Press (2). Select the printhead to print a job with (on screen: head number 1, PH1) The jobs BOX_TOP for head number 1 and BOX_FRONT...
-
Page 11: Editing A Job
Editing a job Press (Jobs). Select a job to edit (1). Job preview Press (2). Select a field to edit (1). Editable fields are highlighted in blue. Press (2). Editing field parameters. Instruction manual... - Page 12 Editing a job Edit the field (1). Press (2). Window similar to that at step but a field is being edited. Press to accept the change. Edited job preview Save the job Window similar to that at step . Press Select a printhead (on screen: head number 1, PH1).
-
Page 13: Job Preview
Job Preview Previews of jobs for both heads, enlarged to 200%. The image can be enlarged to occupy the entire height of the preview window. Shown at actual size (100%). Press to return to the main screen. Instruction manual... -
Page 14: Printer Maintenance
The purge time is limited in such a way that the sum of all purging cycles performed within one minute must not exceed 30 seconds. Use only Markem-Imaje consumables designated for use with the 4700. Instruction manual... - Page 15 Ink canister replacement Warning low ink level (<10%); printing continues; solid prepare a new canister of ink orange no ink in canister; printing continues with blinking the ink contained in an ink system buffer; orange canister replacement is recommended Fault the ink canister and the ink system buffer blinking are empty;...
