UG-248
SSM2380 GUI FUNCTIONAL BLOCKS
The SSM2380 control software is logically split into several
different functional blocks. Each functional block is split into
the individual subsections.
Note that when the power supply of the
you must reset the SSM2380
device. Simply click the red RESET button at the bottom-left
corner of the software window (see Figure 9).

INPUT CONTROL

This section controls the left and right gain control operation
of SSM2380.

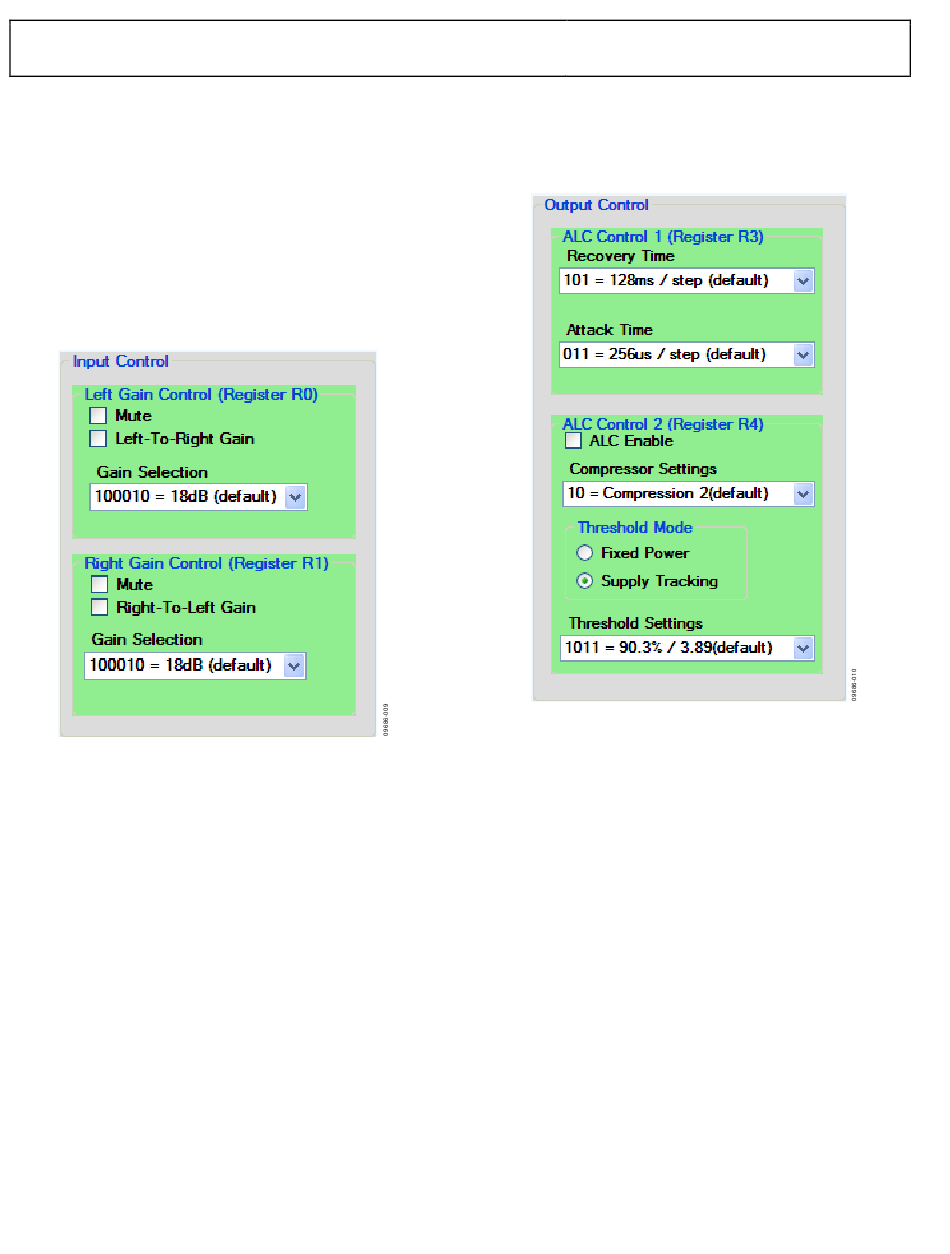

Figure 10. Input Control Section of
Left Gain Control (Register R0)
This is associated with Control Register R0. Options include
mute, left-to-right gain loading (load left gain to right channel),
and left channel gain. The left channel gain can be set from 1 dB
to 24 dB in 0.5 dB increments.
Right Gain Control (Register R1)
This is associated with Control Register R1. Options include
mute, right-to-left gain loading (load right gain to left channel),
and right channel gain. The right channel gain can be set from
1 dB to 24 dB in 0.5 dB increments.
SSM2380 is interrupted,
software to synchronize with the
SSM2380 GUI

OUTPUT CONTROL

This section controls the auto level control (ALC) of the
SSM2380.
Figure 11. Output Control Section of
ALC Control 1 (Register R3)
This is associated with Control Register R3. This section allows
the user to control the release time and attack time of the
SSM2380.
ALC Control 2 (Register R4)
This is associated with Control Register R4. This section allows
the user to enable ALC operation, to set the compressor opera-
tion mode (light to heavy compression and limiting), to set the
limiter level, and to set the limiter mode.
There are two limiter modes: fixed power and supply tracking.
Fixed power mode sets the output limiter level to a fixed value,
independent of the power supply rail. Supply tracking mode
sets the limiter as a percentage of SPKVDD.
Note that if the user intends to change the gain setting registers,
R0 or R1, the user must toggle the ALC Enable check box to
allow the new gain settings to take effect.
Rev. 0 | Page 8 of 20
