EVAL-SSM2380Z Quick Start Guide
INTRODUCTION
The SSM2380 is a fully integrated, high-efficiency Stereo Class-D Amplifier. The EVAL-SSM2380Z is a
platform that enables system-level testing of the SSM2380 at datasheet performance levels.
The EVAL-SSM2380Z has a 3.5mm stereo analog input jack to supply input to the device. It can be
powered via banana jack cables with a 5V supply, and has banana jacks for both outputs. Additional
filtering components can be installed for the outputs.
The EVAL-SSM2380Z can be used in Gain Mode where no additional programming is needed, or used in
I2C Mode. If using the SSM2380 in I2C Mode, the SigmaStudio software courtesy of Analog Devices, Inc
and a USBi Adapter Board are also necessary to send I2C control commands to the SSM2380.
BOARD SETUP
CONTROL SETUP

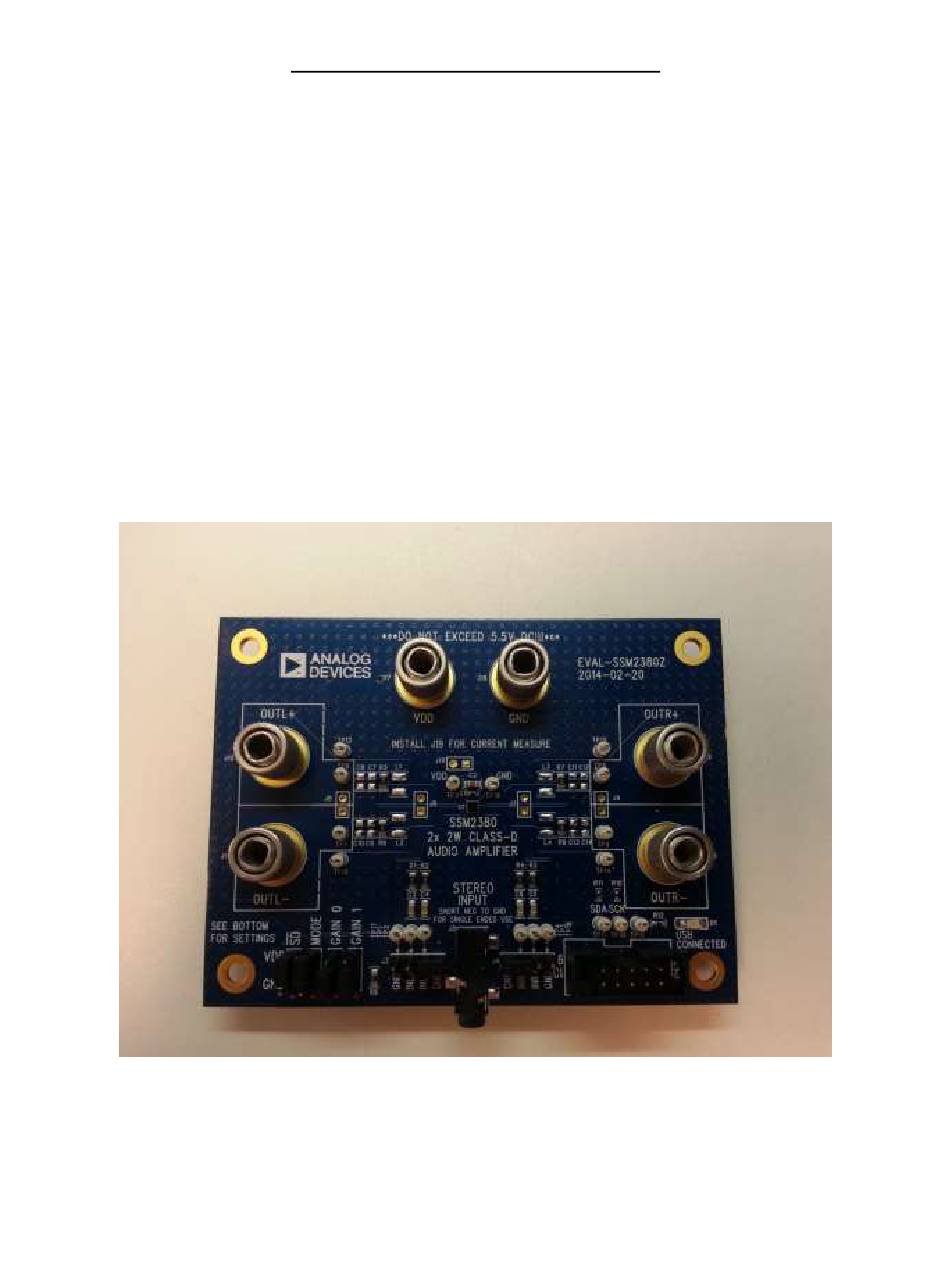

Figure 1. EVAL-SSM2380Z Stand-Alone Mode Setup
The two main modes of operation for the EVAL-SSM2380Z are Stand-Alone Mode and I2C Mode.
Below, the appropriate jumper settings are listed for each of the modes of operation. Please refer to
Figure 1 to see the location of the mentioned jumpers on the board, as well as the example setup for
Stand-Alone mode operation.
