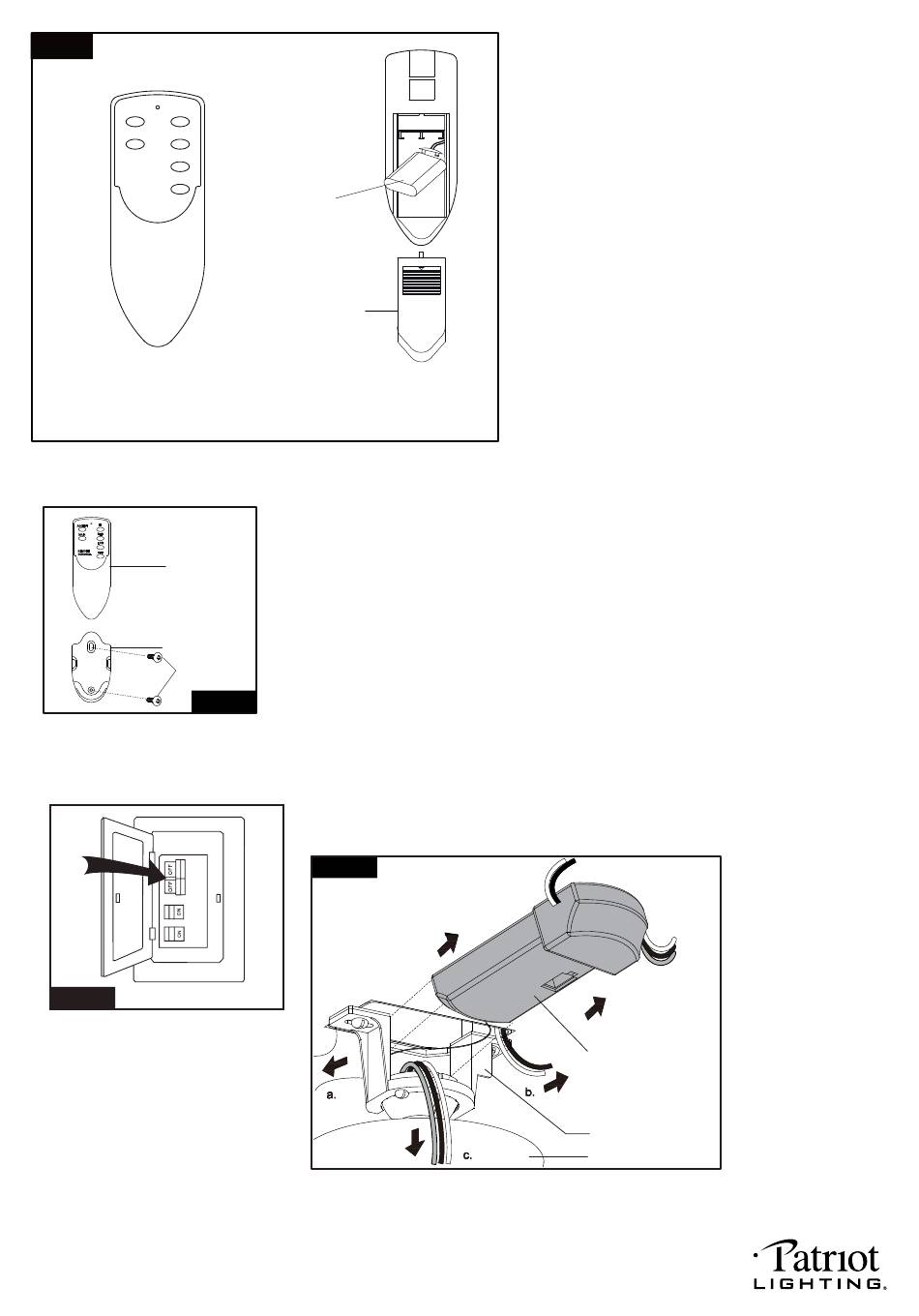

Patriot Lighting 355-6703 Installation Instructions Manual page 8

Fig.16
HI
ACCENT
MAIN MED
LOW
REMOTE
OFF
CONTROL
Transmitter
Wall Bracket
Screw
Fig.17
Note: Remote controller can not be used along with a solid-state speed control at the same time.
Fig.18
Battery
Battery Cover
Install the transmitter wall bracket on the wall with two screws and
place transmitter in it carefully.
Install Without Remote Controller
Turn OFF the electric circuit at the main fuse or circuit breaker box. (See Fig.18)
Fig.19
Unscrew the canopy. Remove the wire connectors from
the fan to ceiling wire connection. The receiver should
be removed from the hanger bracket (See Fig.19).
PAGE: 8 / 11
1. Install the battery (9V) into the transmitter.
2. OPERATING TRANSMITTER:
* Press "HI" to turn on the fan at high speed.
* Press "MED" button to turn the fan in medium speed.
* Press "LOW" button to turn the fan in low speed.
* Press "OFF" button to turn off the fan.
* Press and release the "Accent" button quickly to turn
on or turn off the accent light.
* Press and hold the "DIMMER" button to dim or brighten
lights to the desired level and release, and the brightness
level will be memorized. Turn on the light again, then fan
light will be restored to the brightness-level at which it was
dimmed last time.
NOTE:
1. Accent light is non-dimmable. Main light is
.
dimmable.
2. This remote controller has a memory function
setting. The fan will operate at the same speed
and the fan light will stay at the same
brightness-level as the last time the power
supply was turned off.
3. Compatible Wall Switch: Menards SKU#
363-5580, the wall switch only can turn on
or turn off the light, but can not control dimming.
Install Without Remote Controller Fig.18.
Receiver
Hanger Bracket
Canopy
220104
