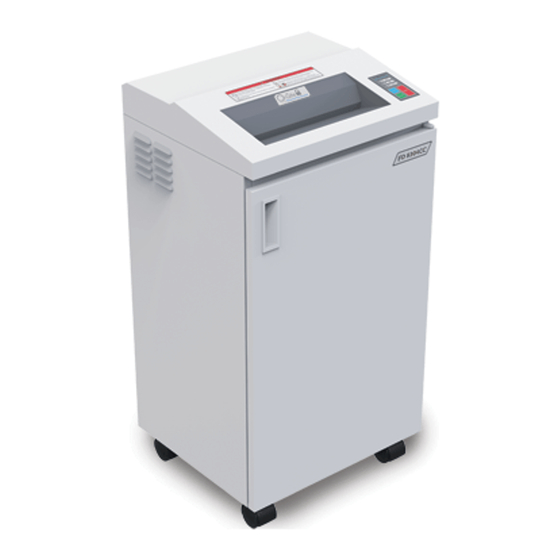

FD 8304CC
Cross-Cut Shredder
4/2024
MAINTENANCE MANUAL
FIRST EDITION

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FD 8304CC and is the answer not in the manual?

Questions and answers

Related Manuals for Formax FD 8304CC

Summary of Contents for Formax FD 8304CC

  • Page 1 FD 8304CC Cross-Cut Shredder MAINTENANCE MANUAL 4/2024 FIRST EDITION...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS PAGE TOPIC SPECIFICATIONS SET-UP GUIDELINES OPERATION SAFETY PRECAUTIONS DAILY MAINTENANCE REMOVING MOTOR & CUTTING HEAD UNIT REPLACING DOOR HINGES REPLACING CASTERS REPAIRING MOTOR CONDENSER & CONTACTOR TROUBLESHOOTING PARTS LISTS...

  • Page 3: Specifications

    Specifications Cutting Style: Cross Cut Shred Size: 1/16” x 19/32” (2 x 15mm) Sheet Capacity: 6 to 7* Speed: 26 feet per minute (8m per minute) Feed Opening: 10.5” Dimensions: 16.5” W x 15.3” D x 28.7” H (420 x 390 x 730mm) Bin Capacity: 10.5 gal.

  • Page 4: Safety Precautions

    Never clean the case with benzene or thinner, since it will cause discoloration. • Do not dismantle the shredder. Contact your Formax Dealer for service. Removing Motor & Cutting Head Unit To remove the motor and cutting head unit for servicing: •...

  • Page 5: Replacing Door Hinges

    Replacing Door Hinges If the door is separated from the body housing, replace the upper and/or lower hinge, (Figures 2 and 3). Figure 3, bottom hinge Figure 2, top hinge Replacing Casters If casters are damaged, remove rivets and attach new casters with screw bolts (Figure 4).

  • Page 6: Troubleshooting

    TROUBLESHOOTING PROBLEM: CHECK THIS: SOLUTION: Shredder will not operate Check that the power cord is Plug cord into outlet plugged into an appropriate outlet Check voltage of power outlet If necessary, find an alternate outlet with the appropriate voltage Check the wiring between the fuse Reconnect, if necessary connector on the PCB (page 8) Main power is functioning...
  • Page 7 Shredder motor and blades Check control panel lights to see if If yes, press the START button. AUTO continue to rotate MANUAL lamp is on lamp should light and shredder should operate in AUTO mode. Photo sensor could be dirty Remove photo sensor (page 8) and clean it with a soft cloth Photo sensor sensitivity may need...

  • Page 8: Parts Lists

    PARTS - CASE ASSEMBLY Part Number Description Quantity FD8304CC A 000 TOP CASE ASS'Y FD8304CC A 001 TOP CASE FD8304CC A 002 BODY CASE FD8304CC A 003 SLOT FD8304CC A 004 PAPER SENSOR FD8304CC A 005 FRONT COVER FD8304CC A 006 DOOR FD8304CC A 007 DOOR HINGE (UPPER)
  • Page 9 PARTS - CUTTING HEAD ASSEMBLY Part Number Description Quantity FD8304CC B 001 SHORT SHAFT FD8304CC B 002 LONG SHAFT FD8304CC B 003 CUTTER FD8304CC B 004 GUIDE FD8304CC B 005 RING FD8304CC B 006 GUIDE POST FD8304CC B 007 SPUR GEAR FD8304CC B 008 MAIN SPUR GEAR FD8304CC B 009...
  • Page 10 PARTS - ELECTRICAL & MOTOR...
  • Page 11 PARTS - ELECTRICAL & MOTOR Part Number Description Quantity FD8304CC C 001 MOTOR WIRE FD8304CC C 002 FRONT WIRE FD8304CC C 003 SENSOR WIRE FD8304CC C 004 FULL, DOOR/TESTER FD8304CC C 005 JUMPER WIRE FD8304CC C 006 MAIN PCB FD8304CC C 007 FRONT PCB FD8304CC C 008 SENSOR PCB...
  • Page 12 ELECTRICAL WIRING DIAGRAM...
