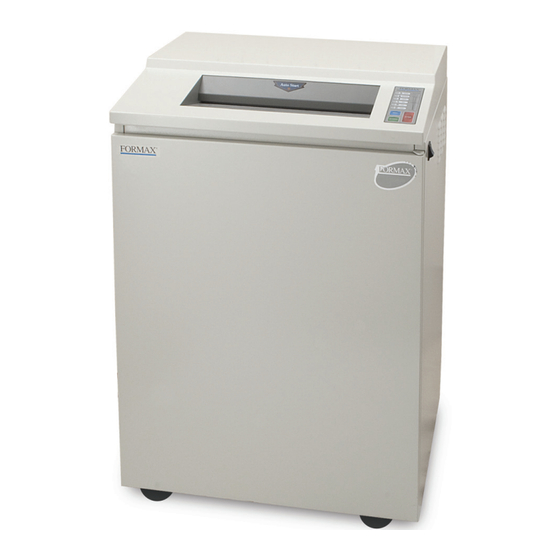

- Page 1 High Security Shredder FD 8400HS Cross-Cut MAINTENANCE MANUAL FIRST EDITION 6/2013...
-
Page 2: Table Of Contents
TABLE OF CONTENTS TOPIC PAGE Specifications Set-up Guidelines Control Panel Operation Safety Devices and Other Features Safety Precautions Daily Maintenance Auto Cleaning Sensor Sensitivity Recovery Removing Motor & Cutting Head Unit Replacing Door Hinges Replacing Casters Repairing Motor Condenser & Contact Troubleshooting Parts Lists 8-10... -
Page 3: Specifications
Specifications FD 8400HS Cutting Style: Cross Cut Shred Size: 1/32” x 3/16” (Level 6) Sheet Capacity: 6 to 7 (NO Staples or Paper Clips) Speed: 23 feet per minute Feed Opening: 10.25” Dimensions: 20” W x 20” D x 34” H Bin Capacity: 20 gal. -
Page 4: Operation
Oil regularly for peak performance. NOTE: High Security shredders require a specialized oil that can only be ordered through Formax, part # 8000-15.The “MANUAL” LED will flash after every four (4) hours of operation as an indicator to oil the shredder cutting blades. The LED will continue to flash until oiled. NOTE: the shedder will still operate when the LED is flashing but at a decreased load capacity. -
Page 5: Safety Precautions
• Never clean the case with benzene or thinner, since it will cause discoloration. • Do not dismantle the shredder. Contact your Formax Dealer for service. Auto Cleaning Function Use the Auto Cleaning function when sheet capacity is decreased. 1. Prior to using the Auto Cleaning function, spread shredder oil onto the cutters through the shred opening, and allow the oil to sit for a few minutes to permeate the cutting blades. -
Page 6: Sensor Sensitivity Recovery
Sensor Sensitivity Recovery Function Over time, the shredder photo eye may lose its sensitivity. Use the following steps to reset the sensor’s sensitivity. 1. If the sensor cannot detect paper: • Press the Stop button for five seconds. 2. If the shredder is operating without paper in the feed opening: •... -
Page 7: Replacing Door Hinges
Replacing Door Hinges If the door is separated from the body housing, replace the upper and/or lower hinge (Figures 2 and 3). Figure 3, bottom hinge Figure 2, top hinge Replacing Casters If casters are damaged, remove rivets and attach new casters with screw bolts (Figure 4). -
Page 8: Troubleshooting
TROUBLESHOOTING PROBLEM: CHECK THIS: SOLUTION: Shredder will not operate Check that the power cord is Plug cord into outlet plugged into an appropriate outlet Check voltage of power outlet If necessary, find an alternate outlet with the appropriate voltage Check the wiring between the fuse Reconnect, if necessary connector on the PCB (page 12) Shredder capacity is de-... - Page 9 Shredder motor and blades Check control panel lights to see if If so, follow instructions for Sensor continue to rotate AUTO lamp is flashing Sensitivity Recovery on page 4. Check control panel lights to see if If yes, press the START button. AUTO MANUAL lamp is on lamp should light and shredder should operate in AUTO mode.
-
Page 10: Parts Lists
PARTS LISTS ITEM PART # DESCRIPTION 8400HS-TOP-01 TOP COVER 7310-BOD-01 BODY CASE 7310-BOD-02 UPPER DOOR HINGE 7310-BOD-03 LOWER DOOR HINGE 7310-DOR-01 DOOR 7310-DOR-02 DOOR MAGNET 7310-FRT-01 FRONT COVER PLATE WST-AA-0004 WASTE BIN 7310-ELE-03 MICRO SWITCH, DOOR, 15A 7310-CAT-01 CASTERS 8000-15 HIGH SECURITY SHREDDER OIL... - Page 11 MECHANICAL PARTS Left Side View 6, 7 20, 21 (not visible) (not visible) Cross Cut CROSS-CUT ITEM DESCRIPTION PART # 7310-MOT-01 MOTOR, 400W 7310-GEA-01 SPUR GEAR (m=2, z=31) 7310-GEA-02 SPUR GEAR (m=2, z=31) 7310-GEA-03 MAIN SPUR GEAR (m=2, z=59) 7310-GEA-04 MOTOR GEAR (m=2, z=59) 7310-ELE-01 CIRCUIT BREAKER, 15A...
- Page 12 Underside View Top View Underside View ITEM PART # DESCRIPTION 7310-RUB-01 VIBRATION-PROOF RUBBER (025) 7310-FUL-01 WASTE BIN FULL SENSOR PLATE 7310-ELE-02 MICRO SWITCH (WASTE BIN)
-
Page 13: Electrical Parts
ELECTRICAL PARTS 1, 5 ITEM PART # DESCRIPTION 7310-PCB-02 SWITCH PCB 7310-SEN-01 PHOTO SENSOR 7310-HAN-01 CABLE (9P) 7310-ELE-05 POWER PLUG 7310-PCB-03 PCB COVER 7310-PCB-04 PCB SUPPORTERS 8400HS-THR-01 INFEED THROAT... - Page 14 (external connection) Inside View ITEM PART # DESCRIPTION 7310-PCB-01 MAIN PCB 7310-ELE-01 MAIN POWER SWITCH/CIRCUIT BREAKER, 15A 7310-ELE-03 MICRO SWITCH (DOOR), 15A 7310-HAN-01 CABLE (9P) 7310-HAN-02 CABLE 7310-TRA-01 TRANSFORMER 7310-FIL-01 NOISE FILTER...
