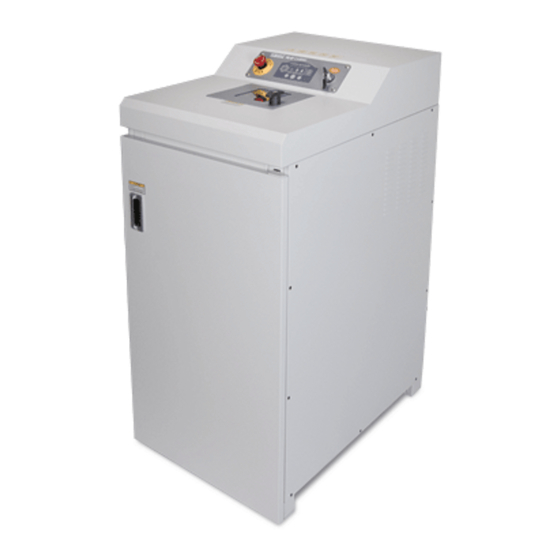

FD 87 Casino Shredder
5/2017
OPERATOR/MAINTENANCE/PARTS MANUAL
FIRST EDITION

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FD 87 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Formax FD 87

Summary of Contents for Formax FD 87

  • Page 1 FD 87 Casino Shredder OPERATOR/MAINTENANCE/PARTS MANUAL FIRST EDITION 5/2017...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS TOPIC PAGE Safety Precautions Checking Safety Devices Overview Specifications Installation Start-up: Main Switch and Control Panel Operation, Overloading Emptying Waste Bin Exterior Cleaning Maintenance & Inspection 7 - 8 Parts 9 - 15...

  • Page 4: Safety Precautions

    Notes on work safety The FD 87 Casino shredder has been inspected for safety. However, improper operation and misuse risk the following: • the health or life of the operator •...
  • Page 5 The FD 87 Casino shredder is intended only for shredding chips, dice, cards, and tokens. The hardened, solid- steel cutting blades are designed to handle these materials. Any other use beyond the scope described here is regarded as not being in accordance with the instructions.

  • Page 6: Checking Safety Devices

    Checking the safety devices Check the safety devices: • at the start of each work shift (when operation is sporadic) • at least once a week in continuous operation • after each maintenance or repair Check the safety devices for: •...

  • Page 7: Overview

    Installation 1. Appropriate power outlet must be available at installation site. 2. The FD 87 Casino is delivered completely assembled. During transport, be aware of the shredder’s high center of gravity. 3. The shredder can be moved on its casters. If a fork-lift is used, be sure to use the designated pick-up points.

  • Page 8: Start-Up: Main Switch And Control Panel

    Start-up and Operation Main Switch 1. On the left side of the machine, open the door leading to the electrical control panel. Push on the lever (Fig. 1) and the handle will pop out. Pull to open (Fig. 2). 2. Flip the main power switch to the UP position (Fig. 3). Close electrical control panel door. 3.

  • Page 9: Operation, Overloading

    Operation 1. Set main switch to ON (Fig. 3). Turn the OFF/ON key switch on the control panel to the ON position. 2. Open the shredding chamber door. Drop in items to be shredded. Close the door. 3. Touch the START pad on the control panel. The blades will begin to move and shred the materials. NOTE: If material is accidentally placed into the shredding chamber, DO NOT REACH FOR IT.

  • Page 10: Emptying Waste Bin

    Emptying the Waste Bin Shredded particles accumulate in the waste bin during normal operation. When the red “Waste Bin Full” lamp lights, empty the waste bin. 1. Switch the shredder off by pressing the STOP pad on the control panel, turn the OFF/ON key switch to the OFF position and flip the main power switch to the OFF position.
  • Page 11 • Checking the Cutting Head Chain Tension Check the chain tension once every week in the first month, then once a month thereafter. 1. Switch off the shredder and unplug from wall outlet. 2. Remove the right side cover. 3. The sagging of the chain (see Fig. 6) should be 9 - 14 mm, measured from the top inside of the frame to the cutting head chain.
  • Page 12 PARTS LISTS...
  • Page 13 Item Part # Description FD87CA A 001 UPPER FRAME (L/R) FD87CA A 002 BOTTOM FRAME FD87CA A 003 SIDE COVER RIGHT FD87CA A 003-2 SIDE COVER LEFT FD87CA A 004 FRONT COVER FD87CA A 005 TOP CASE FD87CA A 006 INFEED DOOR FD87CA A 006-1 CLEAR WINDOW...
  • Page 14 CUTTING HEAD...
  • Page 15 CUTTING HEAD Item Part # Description FD87CA B 001 SHAFT(S) FD87CA B 002 SHAFT(L) FD87CA B 003 GUIDE FD87CA B 004 CUTTER FD87CA B 005 RING FD87CA B 006 GUIDE SUPPORT FD87CA B 007 SIDE(R) FD87CA B 007-1 SIDE(L) FD87CA B 008 VIBRATION PROOF RUBBER BRACKET FD87CA B 009 WASTE GUIDE (REAR)

  • Page 16: Parts

    DISTRIBUTION BOX ASSEMBLY Item Part # Description FD87CA C 001 CONTROL BOX FD87CA C 002 CONTROL PANEL FD87CA C 003 PCB BOX FD87CA C 004 TERMINAL BLOCK FD87CA C 005 CIRCUIT BREAKER FD87CA C 006 EOCR FD87CA C 007 FD87CA C 008 VIBRATION PROOF RUBBER FD87CA C 009 COVER...
  • Page 17 ELECTRICAL DIAGRAM...
  • Page 18 PCB DIAGRAM...
