  • Page 1 FD 87SSD Multimedia Office Shredder OPERATOR/PARTS MANUAL 4/2024...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS PAGE # TOPIC DESCRIPTION SPECIFICATIONS SAFETY PRECAUTIONS CONTROL PANEL iNFEED OPTIONS INSTALLATION OPERATION 4 - 5 OPERATOR MAINTENANCE TROUBLESHOOTING 7 - 11 PARTS LISTS...
  • Page 3: Description

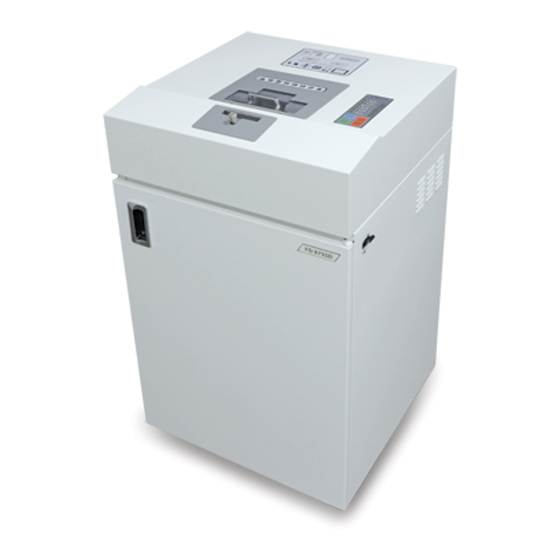

    Description The FD 87SSD is a multimedia shredder designed for the modern technological world. It easily shreds SSDs, mobile phones, small tablets, USB thumb drives, SD media cards, CDs, DVDs, and more. It combines whisper-quiet operation with commercial-grade features including a user-friendly LED control panel, sturdy all-metal cabinet on casters, solid steel cutting blades, and a chain-driven AC-geared motor.
  • Page 4: Control Panel

    Control Panel Auto Start When the START button is pushed, the AUTO LED will light and the blades will run for 1 minute. Manual Mode With the AUTO LED illuminated, push the START button a second time to enter Manual Mode.
  • Page 5: Installation

    Installation 1. Install the shredder on a level surface, away from heat sources and direct sunlight. 2. Be sure the waste bin is in the correct location, on the top shelf, as shown here. Close the cabinet door. 3. Insert plug into a dedicated wall outlet with the appropriate voltage. When the FULL LED is illuminated, open the door, remove the waste bin, empty, replace in the correct location, close the door, and resume operation.
  • Page 6: Operator Maintenance

    • Never put water directly on the surface of the shredder. • Never clean the case with benzene or thinner, since it will cause discoloration. • Do not dismantle the shredder. Contact your Formax Dealer for service. Removing Motor & Cutting Head Unit To remove the motor and cutting head unit for servicing: •...
  • Page 7 Replacing Casters If casters are damaged, remove rivets and attach new casters with screw bolts (Figure 4). Figure 4, caster Repairing Motor Condenser & Contactor If the motor doesn’t work, the motor condenser or motor current contactor could be damaged. Open the motor cover, clean the contactor and adjust the gap of contactor.
  • Page 8: Troubleshooting

    TROUBLESHOOTING PROBLEM: CHECK THIS: SOLUTION: Shredder will not operate Check that the power cord is plugged Plug cord into outlet into an appropriate outlet Check voltage of power outlet If necessary, find an alternate outlet with the appropriate voltage Check the wiring between the fuse con- Reconnect, if necessary nector on the PCB (page 10) Main power is functioning but...
  • Page 9: Parts Lists

    PARTS...
  • Page 10 PARTS - CASE ASSEMBLY...
  • Page 11 PARTS - CASE ASSEMBLY Part Number Description Quantity FD87SSD A 000 TOP CASE ASS'Y FD87SSD A 001 TOP CASE FD87SSD A 002 BODY CASE FD87SSD A 003 FRONT COVER FD87SSD A 004 DOOR FD87SSD A 005 MAIN PCB ASS'Y FD87SSD A 006 SLOT ASS'Y FD87SSD A 007 SLOT COVER...
  • Page 12 PARTS - CUTTING HEAD ASSEMBLY...
  • Page 13 PARTS - CUTTING HEAD ASSEMBLY Part Number Description Quantity FD87SSD B 001 SHAFT (L) FD87SSD B 002 SHAFT (S) FD87SSD B 002-1 CUTTER PRESS PLATE FD87SSD B 003 GUIDE FD87SSD B 004 CUTTER FD87SSD B 005 RING FD87SSD B 006 CUTTER COVER FD87SSD B 007 MOTOR COVER...
  • Page 14 PARTS - ELECTRICAL & MOTOR...
  • Page 15 ELECTRICAL WIRING DIAGRAM...
