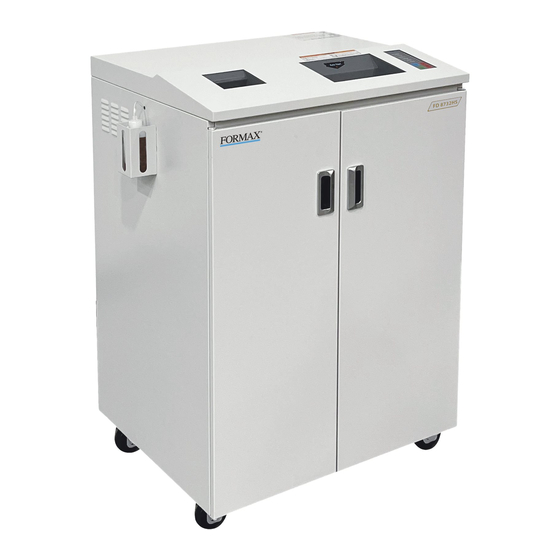

Formax FD 8732HS Operator's Manual

Paper/optical media shredder
Hide thumbs Also See for FD 8732HS:
Table of Contents

Advertisement

Quick Links

Download this manual
FD 8732HS
Paper/Optical Media Shredder
8/21
OPERATOR / PARTS MANUAL
FIRST EDITION

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FD 8732HS and is the answer not in the manual?

Questions and answers

Related Manuals for Formax FD 8732HS

Summary of Contents for Formax FD 8732HS

  • Page 1 FD 8732HS Paper/Optical Media Shredder OPERATOR / PARTS MANUAL FIRST EDITION 8/21...

  • Page 2: Table Of Contents

    TOPIC PAGE Description Set-up Guidelines Operation AutoOiler Operation Eco Mode Safety Precautions Safety Devices & Other Features Sensor Sensitivity Recovery Daily Maintenance Auto Cleaning Specifications Troubleshooting Parts Lists 9-21...

  • Page 3: Description

    NSA/CSS Specification 02-01 for High Security Cross-Cut Paper Shredders and Specification 04-02 for Optical Media Destruction Devices. The FD 8732HS is listed on the NSA/CSS EPL, and meets the 2018 requirements for particle size of 2mm x 2mm for DVD and Blu-ray destruction.

  • Page 4: Autooiler Operation

    AutoOiler The AutoOiler pumps 40 CCs of oil onto the cutting head every 30 minutes of run time to help keep the FD 8732HS working at peak performance. Hose & cap assembly 1. Fill oil reservoir with recommended HS shredder oil.

  • Page 5: Sensor Sensitivity Recovery

     Never clean the case with benzene or thinner, since it will cause discoloration.  Do not dismantle the shredder. Contact your Formax Dealer for service. Auto Cleaning Function Use the Auto Cleaning function when sheet capacity is decreased. 1. Prior to using the Auto Cleaning function, spread shredder oil onto the cutters through the feed opening, and allow the oil to sit for a few minutes to permeate the cutting blades.

  • Page 6: Specifications

    Specifications CAUTION! Not for use with staples or paper clips they will damage the cutting blades. Paper Optical Media Cutting Style: Cross Cut Cross Cut Shred Size: 1mm x 5mm 2mm x 2mm Sheet Capacity: 10 - 11 sheets (75gsm)* 1 disc at a time Speed: Up to 18 fpm...

  • Page 7: Troubleshooting

    TROUBLESHOOTING PROBLEM: CHECK THIS: SOLUTION: Shredder will not operate Check that the power cord is plugged Plug cord into outlet into an appropriate outlet Check voltage of power outlet If necessary, find an alternate outlet with the appropriate voltage Check the wiring between the fuse con- Reconnect, if necessary nector on the PCB Shredder capacity is decreased...
  • Page 8 Shredder motor and blades con- Check control panel lights to see if AU- If so, follow instructions for Sensor tinue to rotate TO lamp is flashing Sensitivity Recovery Check control panel lights to see if If yes, press the START button. AUTO lamp MANUAL lamp is on should light and shredder should operate in AUTO mode.

  • Page 9: Parts Lists

    PARTS...
  • Page 11 COMPLETE CUTTING BLOCK ASSEMBLY Parts No. Description Remark 1SET FD8732HS B 001 PAPER CUTTER ASS'Y 1SET FD8732HS B 002 CD1 CUTTER ASS'Y 1SET FD8732HS B 003 CD2 CUTTER ASS'Y SGHC / 1EA / 3.0t FD8732HS B 004 FRONT PLATE SS400 / 1EA / 8.0t FD8732HS B 005 MOTOR BASE PLATE SS400 / 4EA / 10Ax100...
  • Page 13 PAPER CUTTING BLOCK ASSEMBLY Part No. Description Remark FD8732HS C 001 PAPER SIDE PLATE (R) SS400 / 1EA / 5.0t FD8732HS C 002 PAPER SIDE PLATE (L) SS400 / 1EA / 5.0t FD8732HS C 003 PAPER SHAFT (L) S45C / 1EA / HEX. 41 FD8732HS C 004 PAPER SHAFT (S) S45C / 1EA / HEX.
  • Page 15 CD/DVD 1 CUTTING BLOCK ASSEMBLY Parts No. Description Remark FD8732HS D 001 CD1 SIDE PLATE (R) SS400 / 1EA / 5.0t FD8732HS D 002 CD1 SIDE PLATE (L) SS400 / 1EA / 5.0t FD8732HS D 003 CD1 SHAFT (L) S45C / 1EA / HEX. 32 FD8732HS D 004 CD1 SHAFT (S) S45C / 1EA / HEX.
  • Page 17 CD/DVD 2 CUTTING BLOCK ASSEMBLY Parts No. Description Remark FD8732HS D2 001 CD2 SIDE PLATE (R) SS400 / 1EA / 5.0t FD8732HS D2 002 CD2 SIDE PLATE (L) SS400 / 1EA / 5.0t FD8732HS D2 003 CD2 SHAFT (L) S45C / 1EA / HEX. 32 FD8732HS D2 004 CD2 SHAFT (S) S45C / 1EA / HEX.
  • Page 19 CABINET ASSEMBLY Description Parts No. Remark TOP CASE ASS'Y FD8732HS A 000 SPCC / 1SET TOP CASE FD8732HS A 001 SPCC / 1EA PAPER THROAT FD8732HS A 002 SPCC / 1EA CD THROAT FD8732HS A 003 SPCC / 1EA BODY ASS'Y FD8732HS A 004 SPCC / 1SET FRONT PLATE...
