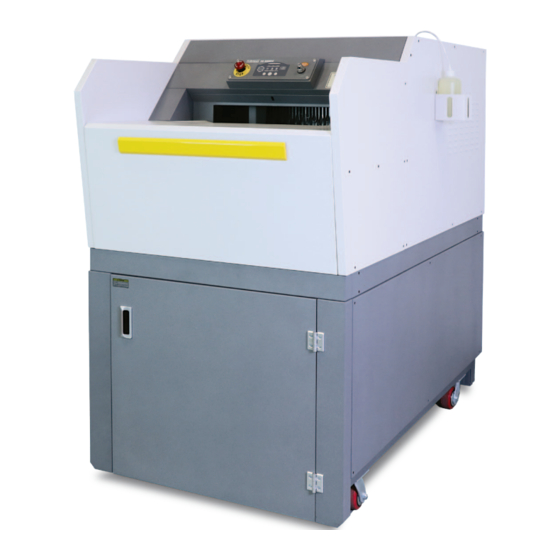

- Page 1 Formax FD 8906CC Cross Cut Industrial Conveyor Shredder Instruction Manual...
- Page 2 Shredder FD 8906CC Cross-Cut MyBinding.com 5500 NE Moore Court Hillsboro, OR 97124 Toll Free: 1-800-944-4573 Local: 503-640-5920 OPERATOR MANUAL 1/2017...
- Page 3 Machine Specs Model: FD 8906CC Serial #: __________________ Motor 7.5KW (10HP) Three-phase, 220V, 50/60 Hz, 50 Amp dedi- Power cated line required, CS8365 plug included, CS8369 receptacle required Sheet Capacity Up to 650 Sheets Throat Width 21” Weight 1,984 lbs. The machine number is specified on the nameplate on the shredder, shown above.
-
Page 4: Table Of Contents
TABLE OF CONTENTS TOPIC PAGE Safety Precautions Checking Safety Devices Overview Specifications Cutting Data, Speed, Dimensions, Weight Motor Specifications, Power Requirements Installation Start-up Operation, Oiling, Overloading Emptying Waste Bin Maintenance 9 - 11 Parts Lists 12-22 MyBinding.com 5500 NE Moore Court Hillsboro, OR 97124 Toll Free: 1-800-944-4573 Local: 503-640-5920... -
Page 5: Safety Precautions
Safety Precautions “Work safety” symbol This symbol marks all work safety notes in this manual which can endanger the health or life of operators. Please pay attention to this symbol and exercise particular care in such cases. Please also forward all work safety notes to other users. Apart from the instructions in this manual, you should also follow generally applicable safety and accident prevention guidelines. - Page 6 The FD 8906CC shredder is intended for shredding paper, cardboard, archive files, tapes, ribbons, CDs and magnetic disks. The hardened, solid-steel cutting rollers are unaffected by loose-leaf binders, paper clips and staples contained in these materials. Any other use beyond the scope described here is regarded as not being in accordance with the instructions.
-
Page 7: Checking Safety Devices
Checking the safety devices Check the safety devices: • at the start of each work shift (when operation is sporadic) • at least once a week in continuous operation • after each maintenance or repair Check the safety devices for: •... -
Page 8: Overview
Overview Control Panel Feed Table Infeed Conveyor Oil Bottle & Holder Safety Bar Waste Bin Access Door Front View Control Panel Breaker Panel Left Side View with Breaker Panel/Main Power Access Door MyBinding.com 5500 NE Moore Court Hillsboro, OR 97124 Toll Free: 1-800-944-4573 Local: 503-640-5920... -
Page 9: Specifications
Specifications Cutting Data, Speed, Dimensions, Weight Cutting Style: Cross Cut Shred Size: 5/16” x 1-1/2” - 3” Sheet Capacity: Up to 650 Speed: Up to 35 feet per minute Feed Opening: 21” Dimensions: 47” W x 81” L x 63” H Dimensions w/optional Conveyor: 47”... - Page 10 Start-up and Operation Main Switch Main Power Switch Breaker Panel Breaker Panel Interior Control Panel MODE/FULL/OPEN INDICATORS LED Displays LOAD INDICATOR Lights signify mode (Auto/Manual/Stop/ LED Display Reverse) and indicate when bin is full or Displays load to provide maximum door is open.
- Page 11 Operation 1. Set main switch to ON (page 7). Turn the Key OFF/ON toggle switch on the control panel to the ON position. 2. Press the START button. The conveyor will begin to move in the forward direction. 3. Place the material to be shredded on the feed table, then slide it onto the infeed conveyor belt, in appropriate stacks.
- Page 12 Checking Belt Tension When loaded with material, the conveyor belt must not slip, i.e. stand still when material is loaded. If the belt slips, it must be tightened. Contact the Formax Service Department for assistance. • Checking Belt for Wear The upper surface of the conveyor belt can become worn over time.
- Page 13 Tensioning station adjuster • Cleaning the Conveyor Belt Tensioning Station The tensioning station must be cleaned once a month, or as needed to maintain optimal performance. 1. Switch off the shredder and unplug from wall outlet. 2. Remove the feed table and front panel of tensioning station (Fig.
- Page 14 Lubricating Shredder Mechanisms • Drive Chains: The drive chains should be checked during PMs, and greased as needed. 1. Switch off the shredder and unplug from wall outlet. 2. Remove both top side covers. 3. Grease the cutting system conveyor belt drive chain (A) and the motor cutting system drive chain (B).
