Summary of Contents for StarTech.com PEXESATA2

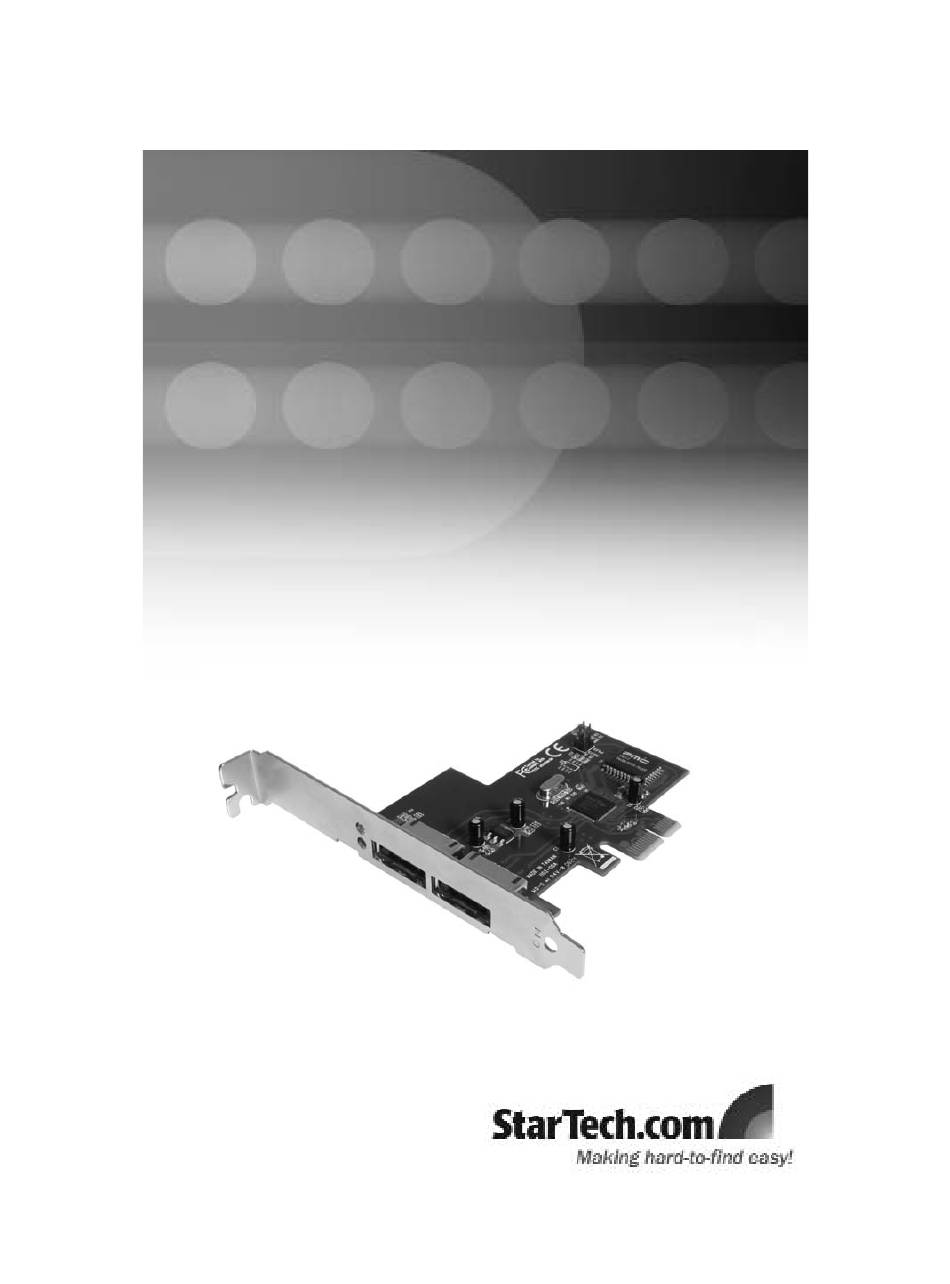

- Page 1 PCI Express eSATA Card 2 Port PCI Express eSATA Card PEXESATA2 Instruction Manual Actual product may vary from photo...
- Page 2 This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual...
- Page 3 Instruction Manual T T a a b b l l e e o o f f C C o o n n t t e e n n t t s s Introduction ........... . .1 Features .
- Page 4 I I n n t t r r o o d d u u c c t t i i o o n n Thank you for purchasing a StarTech.com 2 Port PCI Express eSATA card. Offering simple connectivity between a host computer and eSATA devices, PEXESATA2 provides two eSATA ports, creating the perfect solution for hot-pluggable, high-speed storage, and in turn allowing for easier data backups and archiving.
-
Page 5: Hardware Installation
Secure the card to the motherboard and rear chassis, using the previously removed screw. Replace the chassis cover, and power on the computer. Connect serial ATA cable(s) between the SATA port provided by PEXESATA2 and the desired serial ATA device(s). Power up the computer. - Page 6 After restart the setup process will resume installation, until complete. Adding PEXESATA2 to an Existing Windows 2000/XP/2003 Server/Vista installation During OS boot up, Windows will display the 'Found New Hardware Wizard'. 'Mass Storage controller'.
-
Page 7: Verifying Successful Installation
Instruction Manual Verifying Successful Installation Windows 2000/XP/Windows Server 2003/Vista Right click on the 'My Computer' icon, select 'Properties', left click on the 'Hardware' tab, and then on the 'Device Manager' button. Double click on 'SCSI and RAID Controllers', If there is no yellow ! or ? in front of 'Silicon Image SiI 3132 SATALink Controller', the driver is functioning correctly. - Page 8 L L i i m m i i t t a a t t i i o o n n o o f f L L i i a a b b i i l l i i t t y y In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their...
