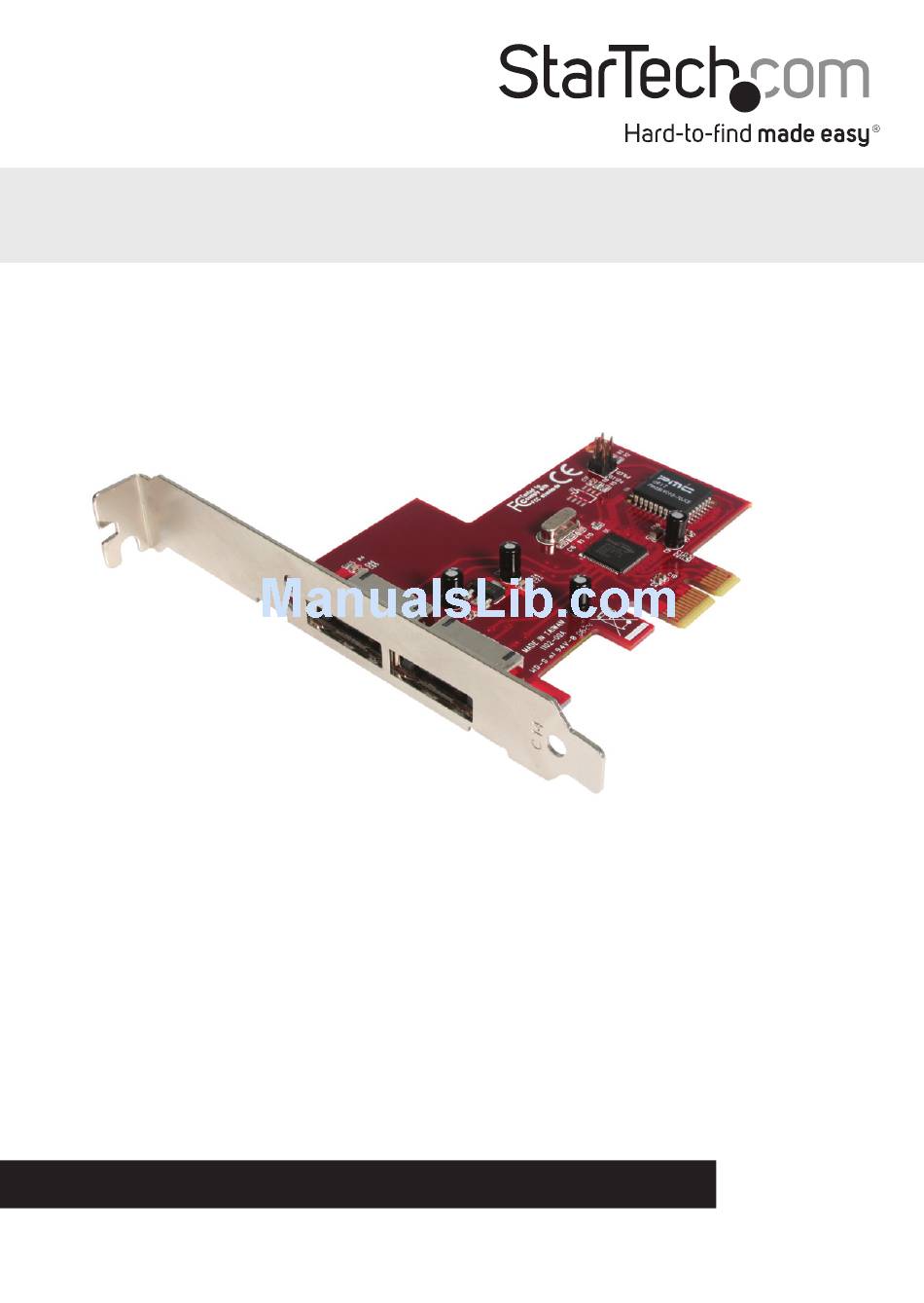

2 Port PCI Express eSATA Controller
PEXESATA2
*actual product may vary from photos
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 09/15/2014
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for StarTech.com PEXESATA2
Summary of Contents for StarTech.com PEXESATA2
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 09/15/2014...
-
Page 2: Fcc Compliance Statement
StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby... -
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Packaging Contents ..........................1 System Requirements ..........................1 Installation ....................2 Hardware Installation ..........................2 Driver Installation ............................2 Verifying Successful Installation ......................3 Updating Driver Files ..........................4 Specifications ..................5 Technical Support ..................6 Warranty Information ................6 Instruction Manual... -
Page 4: Introduction
Introduction This 2 Port PCI Express eSATA Controller Adapter Card offers simple connectivity between a host computer and eSATA devices. Providing two eSATA ports the adapter card offers a cost-effective solution for connecting hot-pluggable, high-speed storage, and in turn allows for easier data backups and archiving. With full support for SATA 300 (SATA II) hard drives and data transfer speeds of up to 3 Gbps, the adapter card features a native PCI Express single chipset that provides enhanced compatibility, reliability and performance for external SATA storage needs. -
Page 5: Installation
WARNING! PCI Express cards, like all computer equipment, can be severely damaged by static electricity. Be sure that you are properly grounded before opening your computer case or touching your PCI Express card. StarTech.com recommends that you wear an anti-static strap when installing any computer component. -
Page 6: Verifying Successful Installation
Press ‘Enter’ and select ‘Silicon Image SiI 3132 SATALink Controller’ . Vista: When prompted to select a drive, Click the Load Drivers button and then insert the Driver CD (included with PEXESATA2) into the CD/DVD-ROM drive. Press ‘Enter’ and select ‘Silicon Image SiI 3132 SATALink Controller’ . -
Page 7: Updating Driver Files
Updating Driver Files Windows 2000/XP/Server 2003/Vista/7 1. Right-click on ‘My Computer’ and select ‘Properties’ . Under the ‘System Properties’ section, click on the ‘Hardware’ tab, and then on ‘Device Manager’ . Click ‘SCSI and RAID Controllers’ and right click ‘Silicon Image SiI 3132 SATALink Controller’ then select ‘Properties’... -
Page 8: Specifications
Specifications PCI Express 1.1 (x1 slot connector) Bus Interface SATA revision 2.0 Form Factor Full/Low Profile Chipset ID Silicon Image SiI3132 External Connectors 2 x eSATA female Maximum Data Transfer Rate eSATA: 3.0 Gbps Windows® 8 / 8.1 (32/64bit), 7 (32/64), Vista (32/64), XP (32/64), 2000 Windows Server®... -
Page 9: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 10 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
