StarTech.com PEX16S550LP Manual

StarTech.com PEX16S550LP Manual

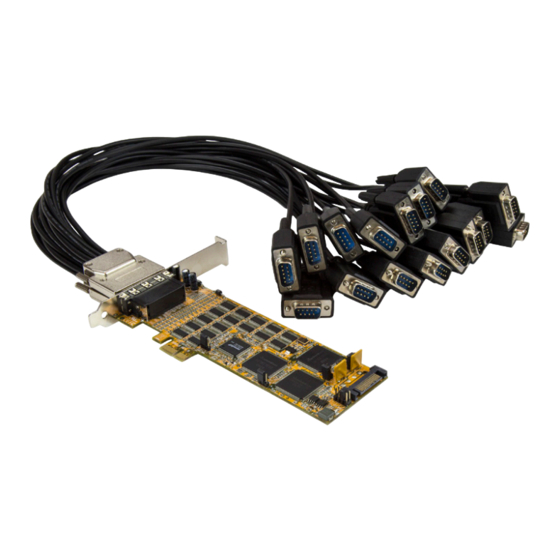

16-port serial card

Advertisement

Quick Links

16-Port Serial Card
PEX16S550LP
FR: Guide de l'utilisateur - fr.startech.com
DE: Bedienungsanleitung - de.startech.com
ES: Guía del usuario - es.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
IT: Guida per l'uso - it.startech.com
For the latest information, technical specifications, and support for
this product, please visit www.StarTech.com/PEX16S550LP.
Manual Revision: 11/03/2017
*actual product may vary from photos

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PEX16S550LP and is the answer not in the manual?

Questions and answers

Summary of Contents for StarTech.com PEX16S550LP

  • Page 1 16-Port Serial Card PEX16S550LP *actual product may vary from photos FR: Guide de l’utilisateur - fr.startech.com DE: Bedienungsanleitung - de.startech.com ES: Guía del usuario - es.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com IT: Guida per l’uso - it.startech.com For the latest information, technical specifications, and support for this product, please visit www.StarTech.com/PEX16S550LP.
  • Page 2 (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by StarTech.com could void the user’s authority to operate the equipment.
  • Page 3 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
  • Page 4: Table Of Contents

    Table of Contents Product diagram ..................1 Top view ............................... 1 Front view ..............................1 DB9 RS232 connector pinout - male ....................2 Introduction ....................2 Packaging contents ..........................3 Requirements ............................. 3 About the jumpers .................4 JP1 – Power selector ................4 JP3 and JP2 - Serial port power ............5 JP4 –...
  • Page 5: Product Diagram

    Product diagram Top view Bracket (full-profile pictured) JP3: PWR 1-8 JP5: Mode JP2: PWR 9-16 SATA power connector JP1-AUX power source JP4-VART JP6-PME power PCI Express x1 connector Front view VHDC1-68 port 1 Screw locks Screw locks VHDC1-68 port 2 Instruction manual...
  • Page 6: Db9 Rs232 Connector Pinout - Male

    DB9 RS232 connector pinout - male or power Introduction This serial card lets you add 16 RS232 serial ports to your full or small form-factor computer through a PCI Express expansion slot. It’s a convenient solution for connecting modern or legacy serial devices to your computer, with support for data transfer rates up to 921.6Kbps.
  • Page 7: Packaging Contents

    • Windows® 10 • Windows 8.1 • Windows 8 • Windows 7 • Windows Server® 2012 • Linux® 2.4.x and later (tested up to 4.04) Requirements are subject to change. For the latest requirements, please visit www. StarTech.com/PEX16S550LP. Instruction manual...
  • Page 8: About The Jumpers

    About the jumpers JP1 – Power selector This jumper is used to provide pin number nine of the serial port connector(s) with DC5V or DC12V power. There are four sources depending on the jumper’s position. JP1: Power selector Setting I12V Internal 5V: Power source is +5VDC, from the motherboard’s PCI Express slot X12V...
  • Page 9: Jp3 And Jp2 - Serial Port Power

    JP3 and JP2 - Serial port power These two jumpers are used to provide external power to the two breakout cables or the 16 serial ports. JP3 enables or disables power over ports 1 to 8, and JP2 enables or disables power over ports 9 to 16.
  • Page 10: Hardware Installation

    Hardware installation Install the low-profile bracket The serial card can be installed in a low-profile (half-height) or a full-profile computer. The full-profile bracket comes preinstalled on the card, but if you have a small form- factor computer, you can install the low-profile bracket instead. 1.
  • Page 11: Software Installation

    7. (Optional) Connect a SATA power cable from your computer’s power supply to the card’s SATA power connector. 8. Place the cover back onto your computer case. 9. Reconnect the power cable to the back of your computer. Reconnect all of the peripheral devices that you disconnected in step 3. Turn on your computer.
  • Page 12: Technical Support

    Limitation of liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product.
  • Page 13 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
