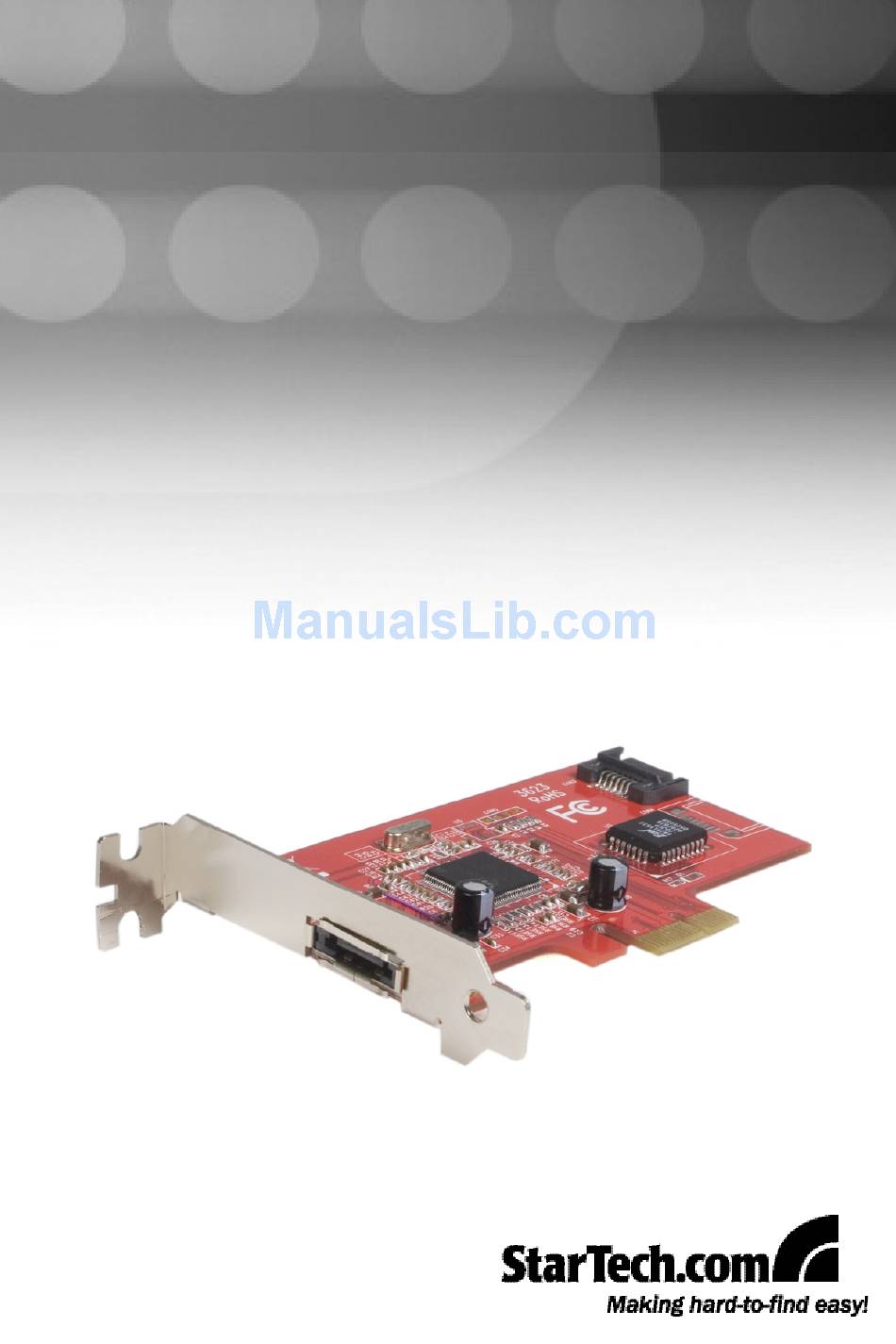

- Page 1 SATA PCI Express Adapter PEXESATA2I...
- Page 2 Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Instruction Manual Instruction Manual Table of Contents Introduction ................... 1 Package contents ................1 System Requirements ..............1 Installation ..................2 Driver Installation (Non-boot drives) ..........3 Verifying Successful Driver Installation ........3 Windows Vista™ Fresh Installation ..........4 Windows 2000/XP/2003 Server Fresh Installation ......5 Installation Without a Floppy Drive ..........7 Specifications ................ -
Page 4: Introduction
Instruction Manual Introduction Thank you for purchasing a StarTech.com SATA II PCI Express Adapter. Supporting SATA II data transfer speeds of up to 3.0 Gbps, this dual port eSATA/SATA II PCI Express Card offers users a cost-effective solution for connecting additional SATA II drives and provides RAID capable operation. -
Page 5: Installation
Please note: If you are performing a new operating system installation and wish to boot from one of the drives being connected to PEXESATA2I, please copy the following files from the included Driver CD to a blank floppy disk that can be used during OS installation: jgogo.sys... -
Page 6: Driver Installation (Non-Boot Drives)
Instruction Manual your computer at the time of purchase. Locate an empty PCI Express slot, removing the metal bracket covering the accompanying empty port/socket on the rear panel of the computer chassis. Position the card above the open PCI Express slot, ensuring that the card is properly aligned with the slot. -
Page 7: Windows Vista™ Fresh Installation
(if necessary, please consult documentation that accompanied purchase of computer). Attach PEXESATA2I to the Serial ATA drive, using a SATA (data) cable. Similarly, attach an available SATA power connector (provided by computer power supply) to the drive. -
Page 8: Windows 2000/Xp/2003 Server Fresh Installation
Browse to specify the location of the files. Then, click Next. Windows Vista™ will then install the necessary files, after which the drive connected to PEXESATA2I will be recognized as a usable drive. Select the drive on which you wish to install the operating system,... - Page 9 (if necessary, please consult documentation that accompanied purchase of computer). If a floppy drive is available on the host system, attach PEXESATA2I to the Serial ATA drive(s), using a SATA (data) cable. If no floppy drive is available, please skip to the section entitled Installation Without a Floppy Drive.
-
Page 10: Installation Without A Floppy Drive
Once you have established that the driver installation was successful, power down the computer, connect the intended hard disk to PEXESATA2I and power up the computer. The computer can now be configured to boot from a drive connected to PEXESATA2I. -
Page 11: Specifications
Instruction Manual Specifications Chipset JMicron JMB363 1 x SATA II port (internal) Connectors 1 x eSATA port (external) Maximum Data Transfer Rate 3Gbps OS Support OS Support: Windows® 2000, XP, Vista™ Regulatory Certifications CE/FCC/ROHS Product Weight 44.2 g (1.42 oz ) 102 x 120 x 20mm (L x W x H) Product Dimensions (1.7 x 4.74 x .78”) -
