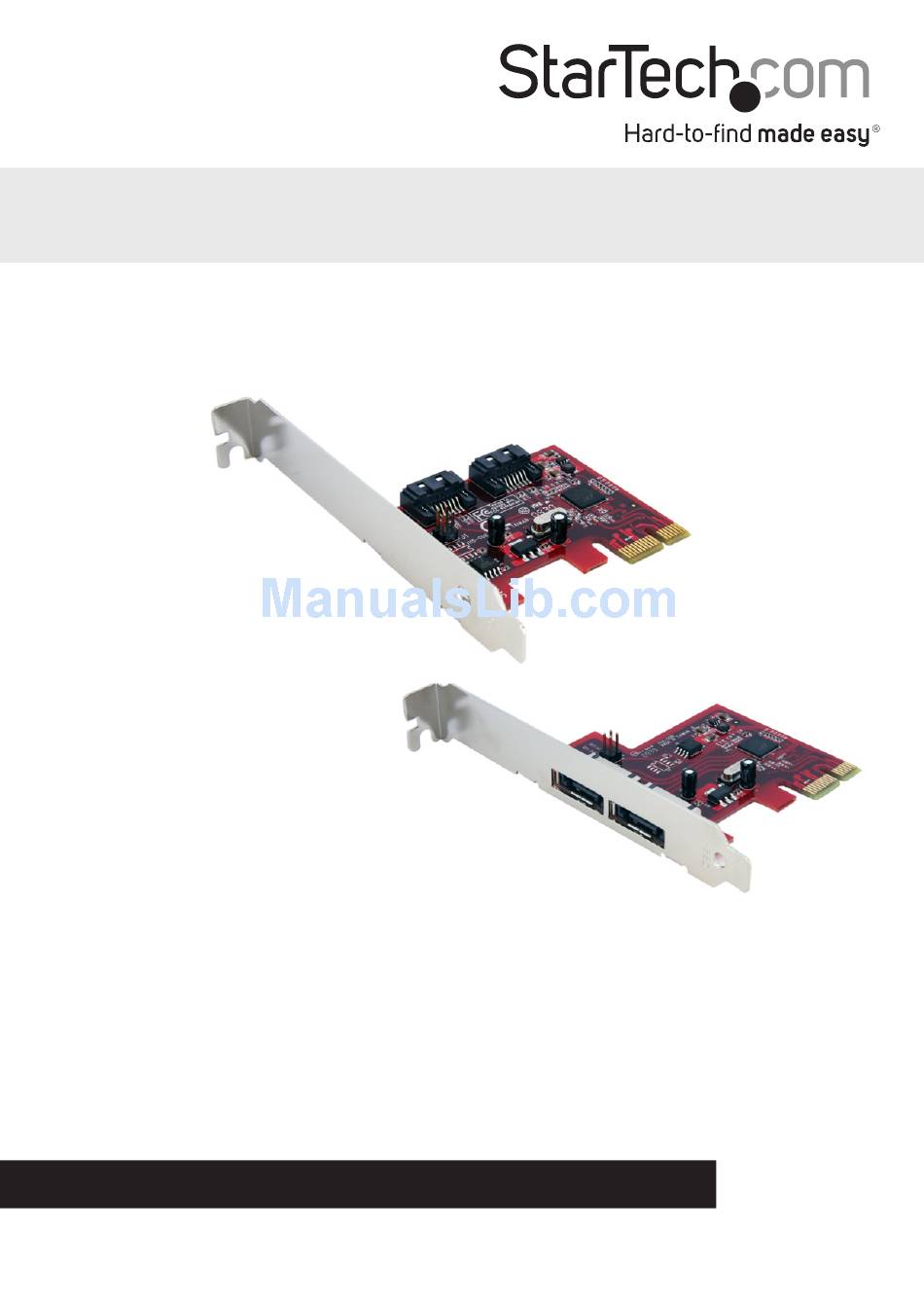

- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 07/11/2011...
-
Page 2: Fcc Compliance Statement
StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby... -
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Packaging Contents ..........................1 System Requirements ..........................1 PEXSAT32 View ............................2 PEXESAT32 View ............................2 Installation ....................3 Hardware Installation ..........................3 Driver Installation ............................3 Verifying Installation ..........................4 How to Use ....................5 RAID Configuration ..........................5 Specifications ..................6... -
Page 4: Introduction
Introduction The StarTech.com 2-Port PCI Express 6Gbps eSATA or SATA Controller Cards offers simple connectivity between a host computer system and eSATA or SATA revision 3.0 devices. A cost-effective solution for connecting high RPM hard drives and Solid State Drives (SSD), which in turn allows for easier data backups and archiving. With full support for SATA revision 3.0 hard drives and data transfer speeds of up to 6 Gbps, as... -
Page 5: Pexsat32 View

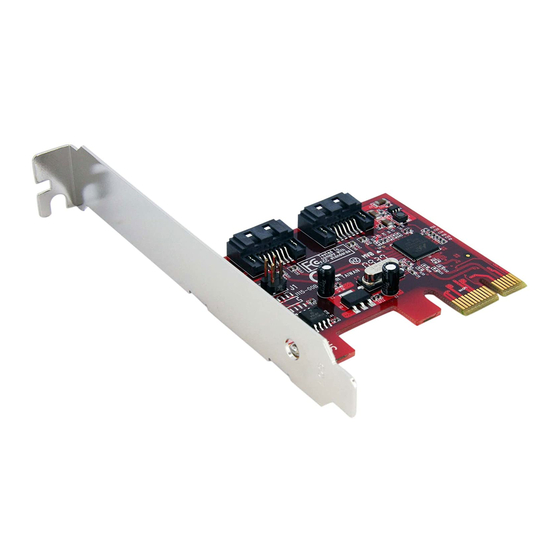

PEXSAT32 View PEXESAT32 View Instruction Manual... -
Page 6: Installation
WARNING! PCI Express cards, like all computer equipment, can be severely damaged by static electricity. Be sure that you are properly grounded before opening your computer case or touching your PCI Express card. StarTech.com recommends that you wear an anti-static strap when installing any computer component. -
Page 7: Verifying Installation
4. Once Windows has located the drivers and installed them, the card should be ready for use. Windows 7 No driver installation is required for Windows 7, as the controller card is natively supported, so the drivers are already installed. Verifying Installation Windows XP/Server 2003/Vista/Server 2008 R2/7 From the main desktop, right-click on “My Computer”... -
Page 8: How To Use
How to Use RAID Configuration To setup a RAID array using the drives connected to the SATA controller card, the BIOS level configuration menu must be accessed. To access the configuration menu, during POST (computer startup), the status display for the controller card will display. When prompted, pressing [CTRL] + [m] will enter the configuration menu. -
Page 9: Specifications
Form Factor Full/Low Profile Chipset ID Marvell 9128 2 x 7-pin eSATA (PEXESAT32) Connectors 2 x 7-pin SATA (PEXSAT32) Maximum Data Transfer Rate SATA: 6 Gbps RAID Support 0, 1, JBOD (single) Operating Temperature 5°C ~ 50°C (41°F ~ 122°F) Storage Temperature -25°C ~ 70°C (-13°F ~ 158°F) -
Page 10: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 11 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
