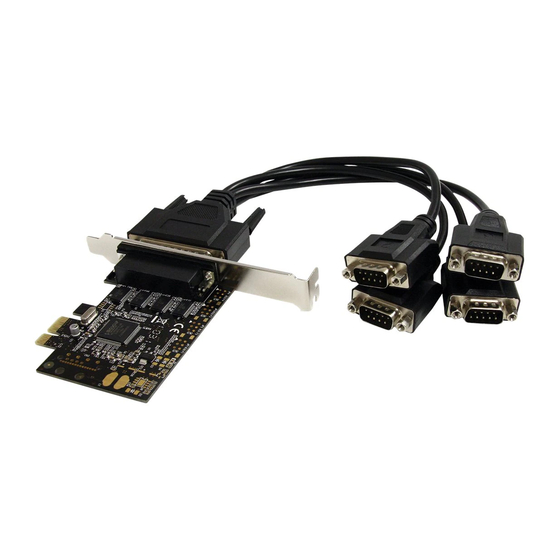

4 Port RS232 PCI Express Serial Card w/
Breakout Cable
PEX4S553B
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 06/10/2021
*actual product may vary from photos
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for StarTech.com PEX4S553B
Summary of Contents for StarTech.com PEX4S553B
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 06/10/2021...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Packaging Contents ..........................1 System Requirements ..........................1 Installation ....................1 Hardware Installation ..........................1 Driver Installation ............................2 Verifying Installation ..........................2 Specifications ..................3 Technical Support ..................4 Warranty Information ................4 Instruction Manual... -
Page 4: Introduction
Introduction Packaging Contents • PCI Express serial card • DB9 Breakout Cable • Full Profile bracket • Driver CD • Instruction Manual System Requirements • PCI Express enabled computer with available PCIe slot ® ® • Microsoft Windows 98SE/2000/XP/Server 2003/Vista/Server 2008 R2/7 (32/64 bit), Windows XP Embedded/CE5.0/CE6.0, ®... -
Page 5: Driver Installation
Driver Installation Windows 2000/XP/Server 2003 1. When the Found New Hardware wizard appears on the screen, insert the Driver CD into your CD-ROM drive. If you are prompted to connect to Windows Update, please select the “No, not this time” option and click Next. 2. -
Page 6: Specifications
Specifications PCI Express 1.0a Bus Interface (x1 slot connector) Form Factor Full/Low Profile Chipset ID ASIX MosChip MCS9904CV-AA 4 x DB9 male External Connectors (via included breakout cable) UART 16C550 Serial Protocol RS-232 Maximum Data Transfer Rate 250 Kbps (per port) Operating Temperature 0°C ~ 70°C (32°F ~ 158°F) Storage Temperature... -
Page 7: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 8 Hard-to-find made easy. At StarTech.com, that isn’t a slogan. It’s a promise. StarTech.com is your one-stop source for every connectivity part you need. From the latest technology to legacy products — and all the parts that bridge the old and new — we can help you find the parts that connect your solutions.
