Summary of Contents for StarTech.com PEXESATA2

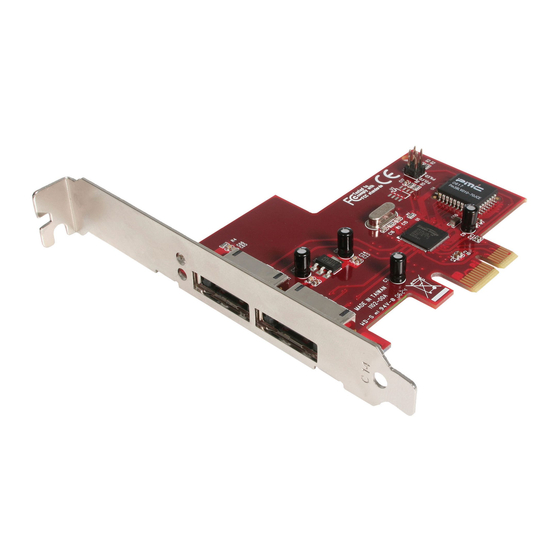

- Page 1 PEXESATA2 Instruction Manual PCI Express eSATA Controller Card 2 Port PCI Express eSATA Controller Adapter Card...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an en- dorsement of the product(s) to which this manual applies by the third-party company in question.
-
Page 3: Table Of Contents
Table of Contents Introduction ..............1 Packaging Contents..............1 System Requirements ..............1 Installation ............... 1 Hardware Installation ..............1 Driver Installation .................2 Verifying Successful Installation ..........3 Updating Driver Files ..............3 Specifications ..............5 Technical Support ............6 Warranty Information ............6... -
Page 4: Introduction
Introduction Packaging Contents • 1 x PCI Express eSATA Card • 1 x Low profile bracket • 1 x Instruction Manual • 1 x Driver CD System Requirements • A CD/DVD-ROM drive (for driver installation) • An eSATA drive to be connected to the host computer ®... -
Page 5: Driver Installation
‘Silicon Image SiI 3132 SATALink Controller’. Vista: When prompted to select a drive, Click the Load Drivers button and then insert the Driver CD (included with PEXESATA2) into the CD/DVD-ROM drive. Press ‘Enter’ and select ‘Silicon Image SiI 3132 SATALink Controller’. -
Page 6: Updating Driver Files
After setup examines your disks, it will copy files from the CD to the hard drive selected above and restart the system. After restart the setup process will resume installation, until complete. Adding PEXESATA2 to an Existing Windows ® 2000/XP/Server 2003/Vista installation During OS boot up, Windows will display the ‘Found New Hardware... -
Page 7: Verifying Successful Installation
Verifying Successful Installation Windows ® 2000/XP/Server 2003/Vista Right click on the ‘My Computer’ icon, select ‘Properties’, left click on the ‘Hardware’ tab, and then on the ‘Device Manager’ button. Double click on ‘SCSI and RAID Controllers’, If there is no yellow ! or ? in front of ‘Silicon Image SiI 3132 SATALink Controller’, the driver is functioning correctly. -
Page 8: Specifications
Specifications PCI Express 1.1 Bus Interface (x1 slot connector) Chipset ID Silicon Image SiI3132 Connectors 2 x eSATA Maximum Data Transfer Rate 3.0 Gbps ® Windows 2000/XP/Server 2003/ Operating System Support Vista... -
Page 9: Technical Support
Technical Support StarTech.com’s lifetime technical support is an integral part of our com- mit-ment to provide industry-leading solutions. If you ever need help with your product, visit www.startech.com/support and access our com- prehensive selection of online tools, documentation, and downloads. - Page 10 StarTech.com has been making “hard-to-find easy” since 1985, providing high quality solutions to a diverse IT and A/V customer base that spans many channels, including government, education and industrial facilities to name just a few. We offer an unmatched selection of computer parts, cables, A/V products, KVM and Serv-...
