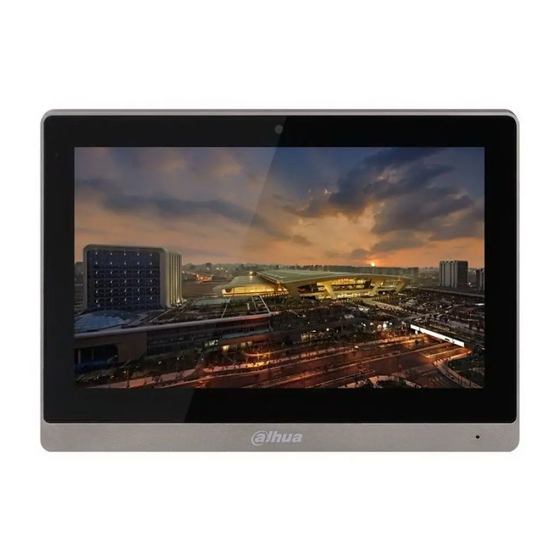

Dahua VTH16 Series User Manual
  1. Manuals
  2. Brands
  3. Dahua Manuals
  4. Monitor
  5. VTH16 Series
  6. User manual

Dahua VTH16 Series User Manual

Hide thumbs Also See for VTH16 Series:
Table of Contents

Advertisement

Quick Links

Download this manual
VTH16 Series User's Manual
V1.0.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VTH16 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dahua VTH16 Series

Summary of Contents for Dahua VTH16 Series

  • Page 1 VTH16 Series User’s Manual V1.0.0...

  • Page 2: Table Of Contents

    Table of Contents 1 General Introduction ......................4 1.1 Model List ......................4 1.2 Front Panel ......................4 1.3 Rear Panel ......................5 2 Product Function ........................ 7 2.1 Basic Function ....................7 2.1.1 Main Menu ....................7 2.1.2 Video Talk ....................8 2.1.3 Security ......................
  • Page 3 Important Safeguards and Warnings Please read the following safeguards and warnings carefully before using the product in order to avoid damages and losses. Note: Do not expose the device to lampblack, steam or dust. Otherwise it may cause fire or ...

  • Page 4: General Introduction

    1 General Introduction 1.1 Model List This manual is for the following product models; please carefully check your model and corresponding functions. VTH16 Series Model Front Screen SD Card Camera VTH1660CH Not support Capacitive Support touch screen VTH1660CH-C Support Capacitive...

  • Page 5: Rear Panel

    Figure 1- 2 VTH1660CH-C Model Component Note Indicator Power and info. Screen Display interface. For talk. For video call among users. Only VTH1660CH-C supports Camera this function. 1.3 Rear Panel Rear panels of VTH1660CH and VTH1660CH-C are the same. Figure 1- 3 VTH1660CH/VTH1660CH-C Model Name Note...
  • Page 6 Name Note Network port Plug in network cable. Port Connect to power, and reserve for RS485. Alarm port 8-ch alarm, please refer to tag. Debug port For installation staff use only.

  • Page 7: Product Function

    2 Product Function 2.1 Basic Function 2.1.1 Main Menu The product main interface has four menus: Video Talk, Security, Message, and Settings. See Figure 2- 1. Figure 2- 1 VTH15 series Icon Name Note Network It means network connection is normal. connection icon It means device does not connect to any connected...

  • Page 8: Video Talk

    2.1.2 Video Talk 2.1.2.1 Call User This function is used for VTH to call VTH. Step 1. Click on , Input room no. of user to call (i.e. Building 1, Unit 1, Room 101 is 1-1-101), press icon to call. When the user being called answers the call, user can have a bidirectional talk.
  • Page 9 Figure 2- 3 2.1.2.3 Call History Click on , you can view missed call, answered call and called call. See Figure 2- 4. Figure 2- 4...

  • Page 10: Security

    2.1.2.4 Management Center Click on or press Emergency button, and it is to call MGT center. 2.1.3 Security In homepage, click on Security to enter Security interface. 2.1.3.1 Armed zone Step 1. Click on , interface shows current 8-ch area status, including Area Type, Current Status, and Delay Time.
  • Page 11 Figure 2- 6 You can set bypass and delete for 4~8 channels to disable area for one time or long-term. 2.1.3.2 Alarm History Click on , and it records alarm time, area no., and event. Meantime, alarm info will be simultaneously uploaded to management platform. When each channel has alarm, there will be a 15s alarm locally, plus a pop-up alarm interface.

  • Page 12: Info Search

    Figure 2- 7 Note: Password to enter mode setup page is the user password, and default password is 123456. Refer to Ch 2.1.5. 2.1.4 Info Search In homepage, click on Info Search, to enter Info Search interface. 2.1.4.1 Publish Info Click on , you can view, delete and clear information published.
  • Page 13 Figure 2- 8 2.1.4.2 Guest Message Click on , user can view guest message with time and location on VTH. 2.1.4.3 Video Pictures Step 1. Click on , user can view video and picture during monitoring and talk on VTH. Step 2.
  • Page 14 Figure 2- 9 Step 3. Click on View to play record. See Figure 2- 10. Figure 2- 10 Step 4. Click on file to view, delete or clear pictures. Note: On VTH project setting interface, enable function. When VTO calls VTH, VTH will take three photos automatically and save them to local SD card. (Only Some models support this function)

  • Page 15: System Settings

    2.1.5 System Settings In System Settings interface, user can set screen brightness, incoming ring, alarm ring, talk time, DND time and etc. The following introduces the most commonly used functions. User 2.1.5.1 User Settings Click on , you can set password, ring, talk, DND, local IPC, clean, touch ring, SD card and snapshot plus restore default settings.
  • Page 16 Figure 2- 12  User password initially is 123456.  Unlock password initially is null.  Arm password initially is 123456.  Disarm password initially is 123456.  Anti-hijack password initially is 654321. Note: Some series has the same password for arming and disarming. Step 2.
  • Page 17 Figure 2- 13 Step 2. Click on to increase time, click on to decrease time. Unit is second. Step 3. Click on OK. Click on DND to set do not disturb time. Unit is hour. Local IPC Step 1. Click on Local IPC. You can set IPC name, address, username and password. See Figure 2- 14.
  • Page 18 Figure 2- 14 Step 2. Click on Save. Step 3. In homepage, click on talk to view added IPC video. Clean Click on Clean to lock screen and now you can clean the screen. Default Click on Default to restore system default settings. SD card Click on SD Card, you can view SD card free space or format SD card.

  • Page 19: Unlock

    2.1.5.2 Project Settings Click on , this function is for installer user only. The entry password is 002236. 2.1.5.3 Introduction Click on , you can view this product and problems might encounter during usage. See Figure 2- 15. Figure 2- 15 2.2 Unlock When VTH is being called, monitored, in call status, press unlock button or unlock icon on VTH to remotely unlock door.
  • Page 20 Figure 2- 16  If you select delay, then system will enter armed status after the delay period.  If you select immediate arm, then system will enter armed status when audio prompt ends. Arm Status Press disarm icon in the lower right corner of homepage. Input disarm password (default password is 123456.).

  • Page 21: Appendix 1 Technical Specification

    Appendix 1 Technical Specification VTH16 Series VTH1660CH VTH1660CH-C Model System Main Built-in microcontroller Processor Operating Built-in LINUX system System Video Video Compression H.264 Standard Video 800x480 Resolution Front 3.0 megapixel Camera Audio Input All-direction microphone Output Built-in loudspeaker Bidirectional Support bidirectional talk Talk Display Screen...
  • Page 22 Weight 0.8 kg Note: This manual is for reference only. Slight difference may be found in user  interface.  All the designs and software here are subject to change without prior written notice. All trademarks and registered trademarks are the properties of their respective ...

This manual is also suitable for:

Vth1660chVth1660ch-c
