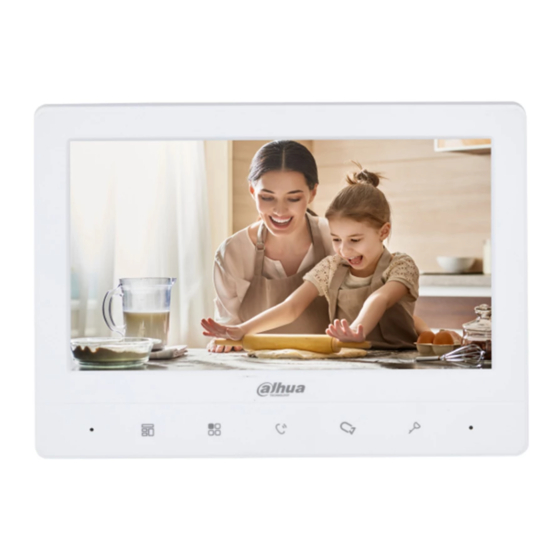

Dahua VTH Series Quick Start Manual
  1. Manuals
  2. Brands
  3. Dahua Manuals
  4. Monitor
  5. Digital VTH Series
  6. Quick start manual

Dahua VTH Series Quick Start Manual

Hide thumbs Also See for VTH Series:
Table of Contents

Advertisement

Quick Links

Digital VTH
(Version 4.2)
Quick Start Guide
V1.0.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VTH Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dahua VTH Series

Summary of Contents for Dahua VTH Series

  • Page 1 Digital VTH (Version 4.2) Quick Start Guide V1.0.0...

  • Page 2: Foreword

    Foreword General This document mainly introduces structure, installation process, commissioning, and verification process of digital VTH products. Safety Instructions The following categorized signal words with defined meaning might appear in the manual. Signal Words Meaning Indicates a potential risk which, if not avoided, could result in property damage, data loss, lower performance, or unpredictable result.

  • Page 3: Important Safeguards And Warnings

    Important Safeguards and Warnings The following description is the correct application method of the device. Please read the Guide carefully before use to prevent danger and property loss. Strictly conform to the Guide during application and keep it properly after reading. Operating Requirement ...

  • Page 4: Table Of Contents

    Table of Contents Foreword ..............................I Important Safeguards and Warnings ..................... II 1 Rear Panel Port ............................1 VTH5421E-H ..........................1 VTH5421CHM ..........................1 2 Installation and Configuration ......................2 Installation ............................. 2 2.1.1 Surface Installation ......................2 2.1.2 Installation with 86 Box ....................... 2 2.1.3 Desktop Installation ......................

  • Page 5: Rear Panel Port

    Rear Panel Port VTH5421E-H Figure 1-1 Rear panel of VTH5421E-H VTH5421CHM Figure 1-2 Rear panel of VTH5421CHM Rear Panel Port...

  • Page 6: Installation And Configuration

    Installation and Configuration Installation  Do not install VTH in harsh environment with condensation, high temperature, dust, corrosive substance and direct sunlight. In case of abnormality after power on, unplug network cable and cut off power supply at  once. Power on after troubleshooting. Engineering installation and debugging shall be done by professional teams.

  • Page 7: Desktop Installation

    Figure 2-2 Installation with 86 box 2.1.3 Desktop Installation Install the device with bracket on the desktop, which only applies to handset VTH. Take VTH5221E-H as an example. Step 1 With two M3×6 cross recessed countersunk head screws, tighten the metal bracket onto the top two nuts of desktop bracket.

  • Page 8: Configuration

    Figure 2-3 Desktop installation Configuration Before commissioning, check whether the following work has been completed. Check whether there is short circuit or open circuit. Power on the device only after the  circuit is confirmed to be normal. IP and No. of each VTO and VTH have been planned. ...
  • Page 9 Figure 2-4 Device initialization Step 2 Enter password and confirm password, and then click Next. Step 3 Select Email, and then enter your email address. This email address is used to reset the password Step 4 Enter default address in the browser to log in to the web interface. Default username is admin.
  • Page 10 Figure 2-6 Device properties Select TCP/IP from the System Type drop-down list. Click OK to save the settings. Restart the device manually, or wait for the device to restart automatically, and then the settings can be valid. Step 8 Log in to the web interface again, and then select Network Setting > SIP Server. The SIP Server interface is displayed.
  • Page 11 Figure 2-8 SIP server (2) This VTO works as SIP server.  Select SIP Server Enable, and click OK to save the configuration. The VTO will restart automatically.  Another VTO or platform works as SIP server. Set parameters according to Table 2-1 and click OK. The VTO will restart automatically.
  • Page 12 Figure 2-9 VTO No. management Step 11 Click Add, set outdoor station parameters according to Table 2-2 and click OK. Repeat this step to add other outdoor stations in the group. Table 2-2 VTO No. management description Parameter Description VTO No. VTO number.

  • Page 13: Vth Settings

    Parameter Description VTH room number consists of 1–6 numbers, letters, or  their combinations. It shall be consistent with room number configured at VTH. When there are master VTH and extensions, to realize  group call function, master VTH short no. shall end with “#0”, whereas extension VTH short no.
  • Page 14 Figure 2-12 WLAN Figure 2-13  Enter local IP, subnet mask, and gateway, and then tap OK. Or tap to enable DHCP function and obtain IP info automatically. If the device has WLAN function, tap WLAN to set it. WLAN ...
  • Page 15 Figure 2-14 Wi-Fi list Connect Wi-Fi. The system has 2 access ways. On WLAN interface, select Wi-Fi, tap Wireless IP to enter local IP, subnet ◇ mask, and gateway, and then tap OK. At WLAN interface, select Wi-Fi, tap Wireless IP, tap to enable ◇...
  • Page 16 Enter Room No. (such as 9901 or 101#0) and tap OK to save.  Room No. shall be the same with VTH Short No., which is set when adding VTH at web interface. Otherwise, it will fail to connect VTO. ...
  • Page 17 Parameter Description Registration domain of SIP server, which can be null. Domain When VTO works as SIP server, registration domain of SIP server shall be VDP. User Name User name and password to log in to SIP server. Login Pwd Set Enable Status to be Tap OK to save settings.

  • Page 18: Debugging

    Debugging 2.3.1 VTO Calls VTH Dial VTH room No. (such as 101) at VTO to call VTH. VTH pops up monitoring image and operating icon, see Figure 2-18. The following figure means that SD card has been inserted into VTH. If SD card is not inserted, recording and snapshot icons are gray.
  • Page 19 Figure 2-19 Door Figure 2-20 Monitoring image Installation and Configuration...

  • Page 20: Appendix 1 Cybersecurity Recommendations

    Appendix 1 Cybersecurity Recommendations Cybersecurity is more than just a buzzword: it’s something that pertains to every device that is connected to the internet. IP video surveillance is not immune to cyber risks, but taking basic steps toward protecting and strengthening networks and networked appliances will make them less susceptible to attacks.
  • Page 21 Change Default HTTP and Other Service Ports We suggest you to change default HTTP and other service ports into any set of numbers between 1024~65535, reducing the risk of outsiders being able to guess which ports you are using. Enable HTTPS We suggest you to enable HTTPS, so that you visit Web service through a secure communication channel.
  • Page 22  The network should be partitioned and isolated according to the actual network needs. If there are no communication requirements between two sub networks, it is suggested to use VLAN, network GAP and other technologies to partition the network, so as to achieve the network isolation effect. ...
