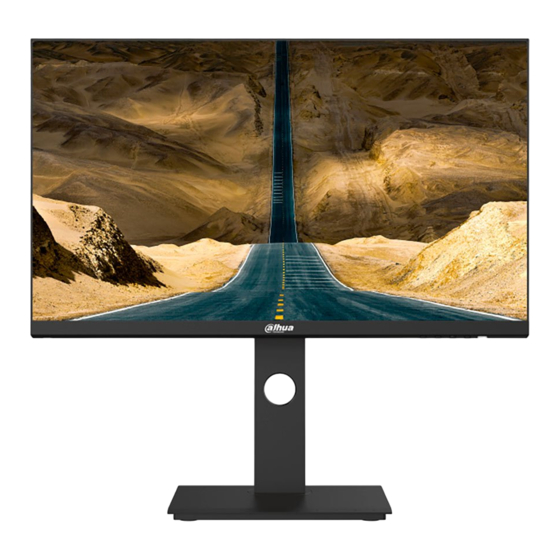

- Page 1 P300 Series Displays User’s Manual ZHEJIANG DAHUA VISION TECHNOLOGY CO., LTD. V1.0.0...
-
Page 2: Foreword
(hereinafter referred to as "the Device"). Read carefully before using the device, and keep the manual safe for future reference. Models This manual applies to Dahua P300 series monitoring models. These include: DHI-LM24-P300, DHI- LM24-P300A, DHI-LM27-P300, DHI-LM27-P300A, DHI-LM32-P300, DHI-LM32-P300A. Safety Instructions The following signal words might appear in the manual. - Page 3 User’s Manual About the Manual The manual is for reference only. Slight differences might be found between the manual and the product. We are not liable for losses incurred due to operating the product in ways that are not in ...
-
Page 4: Important Safeguards And Warnings
User’s Manual Important Safeguards and Warnings This section introduces content covering the proper handling of the device, hazard prevention, and prevention of property damage. Read carefully before using the device, and comply with the guidelines when using it. Operation Requirements WARNING Do not tread on or squeeze the power line, especially the plug or connection point of the power ... - Page 5 User’s Manual If the product is installed on the wall, please make sure the wall's load bearing capacity is sufficient. To avoid falling and injuring people, install according to the included instructions with mounting hardware. Do not put the product in flammable or corrosive gaseous environment, which may cause fire or ...
- Page 6 User’s Manual Only qualified service people can maintain. If the product gets any kind of damage, such as damage to the plug, foreign matter or liquid into the unit, exposure to rain or humidity, loss of function, or dropped, please contact dealer or after-sales service center. Be careful during maintenance of product even if the power is off.
-
Page 7: Table Of Contents
User’s Manual Table of Contents Foreword ................................I Important Safeguards and Warnings ......................III 1 Packing List ..............................1 2 Monitor Adjustment ............................4 3 Button Description ............................6 4 Cable Connection ............................8 5 Menu Description ............................9 6 Brightness and Contrast Adjustment ......................12 7 Operation Menu (OSD) Function Descriptions .................. -
Page 8: Packing List
User’s Manual Packing List The packing list varies depending on the model you purchase. The packing lists in this section are for reference only. The components that come with the Device might be slightly different from those in the figures. Packing list (DHI-LM24-P300/DHI-LM27-P300) Table 1-1 Packing list description (1) Name... - Page 9 User’s Manual Table 1-2 Packing list description (2) Name Display screen Base/Stand Signal cable Power cord Mount stud User's manual Legal and regulatory information Packing list (DHI-LM32-P300) Table 1-3 Packing list description (3) Name Display screen Base/Stand Power adapter Signal cable Power cord Mount stud KM 4 ×...
- Page 10 User’s Manual Packing list (DHI-LM32-P300A) Table 1-4 Packing list description (4) Name Display screen Base/Stand Power adapter Signal cable Power cord Mount stud KM 4 × 12 screw bolts CM 4 × 23 screw bolts Base decorative cover User's manual Legal and regulatory information...
-
Page 11: Monitor Adjustment
User’s Manual Monitor Adjustment The adjustment functions of the display screen include tilt angle adjustment, screen vertical rotation angle adjustment, left and right rotation angle adjustment and height adjustment, as shown in the following figures. Different types of displays have different adjustment functions. Some displays have one or more of the adjustment functions, and some displays are not adjustable. - Page 12 User’s Manual Tilt angle adjustment Height adjustment When adjusting the angle of the monitor, be sure not to touch or press the area of the screen. The above figures are for reference only, and everything is subject to the actual adjustment ...
-
Page 13: Button Description
User’s Manual Button Description Indicator and buttons (DHI-LM24-P300/DHI-LM24-P300A/DHI-LM27-P300/DHI-LM27-P300A) Table 3-1 Button description Name Description LED indicator light/Power A solid white light indicates that the power supply is button normal. The light is red when the screen enters energy saving mode. The light is off when the screen is turned off. - Page 14 User’s Manual Indicator and buttons (DHI-LM32-P300/DHI-LM32-P300A) Table 3-3 Button description Name Description OSD buttons Operate the OSD menu. LED indicator light The blue light indicates that the power supply is normal and the monitor is running normally. Flashing blue light indicates no video source, no horizontal or vertical signals, or too low a voltage.
-
Page 15: Cable Connection
User’s Manual Cable Connection Input and output ports Table 4-1 Port description Port Function Used to connect power adopters. Use the DP cable to connect to a desktop PC. Use the HDMI cable to connect the HDMI IN interface of the product to the HDMI HDMI OUT interface of a PC. -
Page 16: Menu Description
User’s Manual Menu Description The color and shape of the OSD menu of the actual computer may be slightly different from them shown in the figure, and everything that has been actually displayed shall prevail. Specifications of the OSD menu may change with improvements of functions without prior notice. ... - Page 17 User’s Manual Table 5-1 Icon function Icon Function Confirm and enter the main menu. Adjust the brightness Adjust the contrast. Switch port input signal. Power switch. Press to enter the OSD screen. OSD screen Press to browse through the functions. Select the desired function, then press to enter the submenu.
- Page 18 User’s Manual Press to select an option, then press to confirm the setting and exit the current menu. Press to exit the menu interface.
-
Page 19: Brightness And Contrast Adjustment
User’s Manual Brightness and Contrast Adjustment Press any one of the buttons ( ) to activate the navigation window. Navigation window to quickly open the Adjust Brightness window and then press the Press or select button to adjust the brightness that suits you best. Brightness adjustment window Press or select... -
Page 20: Operation Menu (Osd) Function Descriptions
User’s Manual Operation Menu (OSD) Function Descriptions Functions of the monitor vary with models, and the functions in this manual are for reference only. Table 7-1 Menu description Menu Sub Menu Value Range Standard Mode Off/On RTS/RPG Mode Off/On FPS Arena Mode Off/On MOBA Arena Mode Off/On Adaptive-Sync... - Page 21 User’s Manual PIP Position Top Right/Top Left/Bottom Right/Bottom Left PIP Size Small/Medium/Large Window Swap — 简体中文/ENGLISH /한국어//ﯩﺑرعPortugues do Brasilazil/Deutsch/Nederland/Suomi/Français/Ελληνικά/Ind Language onesia/Italiano/日本語 /Malaysia/Polskie/Português/Pусский/Español/ไทย/Українс ька/Tiếng Việt/繁體中文/Türkçe OSD Time Out 0–60 OSD H-Position 0–100 OSD V-Position 0–100 OSD Settings OSD Transparency 0–5 OSD Rotation Normal/90/180/270 OSD Lock Off/On...
-
Page 22: Product Specifications
User’s Manual Product Specifications Table 8-1 Product specifications (1) Product model DHI-LM24-P300 DHI-LM27-P300 DHI-LM32-P300 Screen Size 24" 27" 31.5" Aspect Ratio 16:9 16:9 16:9 Viewing Angle 178°(H)/178°(V) 178°(H)/178°(V) 178°(H)/178°(V) Contrast ratio 1000:1 (TYP) 1000:1 (TYP) 1200:1 (TYP) Colors 16.7M 16.7M 16.7M Resolution 2560 ×... - Page 23 User’s Manual Height range 125 mm (± 5 mm) 125 mm (± 5 mm) 125 mm (± 5 mm) –45 °C (±2.0 °C) to –45 °C (±2.0 °C) to –45 °C (±2.0 °C) to Rotation angle +45 °C (±2.0 °C) +45 °C (±2.0 °C) +45 °C (±2.0 °C) –90 °C (±2.0 °C) to...
-
Page 24: Troubleshooting
User’s Manual Troubleshooting Appendix Table 1-1 FAQ Faults Occurring Possible Solutions Check if the power is on. The power indicator light is not on Check if the power cord is connected. Check if the function of plug-and-play of the device is compatible with PC. - Page 25 User’s Manual...
