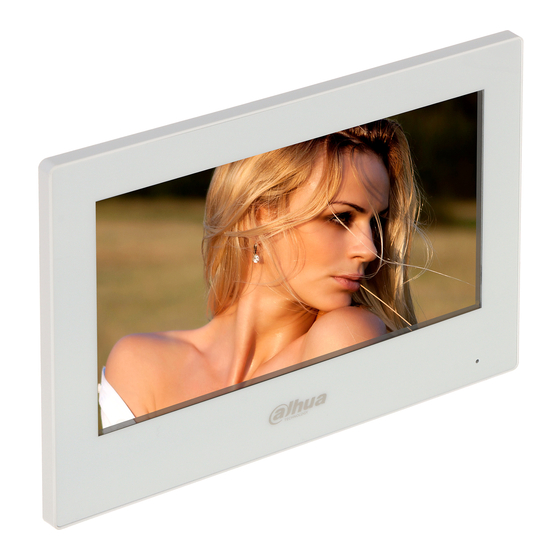

Digital Indoor Monitor (Model G)
Quick Start Guide
V1.0.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G Series and is the answer not in the manual?

Questions and answers

Related Manuals for Dahua G Series

Summary of Contents for Dahua G Series

  • Page 1 Digital Indoor Monitor (Model G) Quick Start Guide V1.0.1...

  • Page 2: Foreword

    Foreword General This manual introduces basic operations of the digital indoor monitor (hereinafter referred to as "VTH"). Models Non 2-wire VTH that supports both Wi-Fi and PoE.  Non 2-wire VTH that only supports PoE.  2-wire VTH that supports Wi-Fi. ...
  • Page 3 About the Manual The manual is for reference only. Slight differences might be found between the manual and the  product. We are not liable for losses incurred due to operating the product in ways that are not in  compliance with the manual.

  • Page 4: Important Safeguards And Warnings

    Important Safeguards and Warnings This section introduces content covering the proper handling of the device, hazard prevention, and prevention of property damage. Read carefully before using the device, comply with the guidelines when using it, and keep the manual safe for future reference. Operation Requirements ●...

  • Page 5: Table Of Contents

    Table of Contents Foreword ................................I Important Safeguards and Warnings ......................III 1 Structure ................................ 1 Front Panel ....................................1 Rear Panel (2-wire) ..................................2 Rear Panel (non 2-wire) ................................3 2 Installation ..............................4 Preparations ....................................4 Wall-mounted Installation ..............................4 3 VTO Configuration ............................

  • Page 6: Structure

    Structure The VTHs have the same front panel but differ in the ports in the rear panel. Some support 2-wire and others does not. Slight differences might be found in the ports of the actual product. Front Panel Figure 1-1 Front panel...

  • Page 7: Rear Panel (2-Wire)

    Rear Panel (2-wire) Figure 1-2 Rear panel for 2-wire model Table 1-1 Components Name Alarm port 2-wire port Network port...

  • Page 8: Rear Panel (Non 2-Wire)

    Rear Panel (non 2-wire) Figure 1-3 Rear panel for non 2-wire model Table 1-2 Components Name Alarm port Power input port Network port...

  • Page 9: Installation

    Installation Preparations Do not install the VTH in harsh environment with condensation, high temperature, dust,  corrosive substance and direct sunlight. In case of abnormality after powering on the VTH, cut off the power supply at once, and unplug  the network cable.

  • Page 10: Vto Configuration

    VTO Configuration This chapter provides a step-by-step configuration of the VTO. Follow the instructions below to get started. The snapshots are for reference only and slight differences might be found in the actual web page of the VTO depending on your model. Configuration Tool You can download the configuration tool VDPConfig and use it to configure and update multiple devices.
  • Page 11 Step 4 Select the Email checkbox and enter email address. This helps you to reset your password when your password is lost or forgotten. Figure 3-2 Set an email address Step 5 Click Next. Figure 3-3 Initialization successful Step 6 Click OK.

  • Page 12: Configuring Vto Number

    Configuring VTO Number Numbers can be used to distinguish each VTO, and we recommend you set it according to the unit or building number. You can change the number of a VTO when it is not working as the SIP server. ...

  • Page 13: Configuring Sip Server

    Figure 3-7 TCP/IP information Enter each parameter, and then click Save. Step 2 The VTO will automatically restart. You need to add the IP address of your PC to the same network segment as the VTO to log in again. Configuring SIP Server When connected to the same SIP server, all VTOs and VTHs can call each other.

  • Page 14: Configuring Call Number And Group Call

    The VTO will automatically restart, and then you can add other VTOs and VTHs to this VTO. If the current VTO does not work as the SIP server, do not enable SIP Server. Otherwise the connection with this VTO will fail. If other VTOs work as the SIP server, set Server Type as VTO, and then configure the ...

  • Page 15: Adding Vtos

    Adding VTOs You can add VTOs to the SIP server, and all the VTOs connected to the same SIP server can make video call to each other. This section is applicable when a VTO works as the SIP server, and if you are using other servers as the SIP server, see the corresponding manual for the detailed configuration.

  • Page 16: Adding Room Number

    Register Password Keep the default value. Build No. Available only when other servers work as the SIP server. Unit No. IP Address VTO IP address. Username VTO web page login username and password. Password Click Save. Step 4 Adding Room Number You can add room numbers to the SIP server, and then configure the room number on VTHs to connect them to the network.
  • Page 17 Figure 3-13 Add a single room number Step 3 Configure room information. Table 3-3 Room information Parameter Description First Name Last Name Information used to differentiate each room. Nick Name Room number. When there are multiple VTHs, the room number for the main VTH ...

  • Page 18: Vth Configuration

    VTH Configuration This chapter introduces the configuration of the VTH and how to achieve the intercom function. Follow the instructions below to get started. Before You Begin Make sure that there is no short or open circuit in the VTO and VTH. ...
  • Page 19 Figure 4-2 Quick configuration Step 4 Select First-time Config, and then tap OK. Figure 4-3 Config mode Select Static IP, enter your planned VTH IP, net mask and gateway, and then tap Next. Step 5 Step 6 On the Set VTH Password screen, enter and confirm the password, and enter the email address, and then tap Next.
  • Page 20 Figure 4-4 Set password for VTH On the Set VTO Password screen, enter the password of VTO and confirm it, and then tap Step 7 Next. Figure 4-5 Set password for VTO Step 8 Tap Initialize to complete the initialization of the VTO and the main VTH, and then tap Next. You need to make sure that the IP addresses of the VTH and VTO on the same network segment.

  • Page 21: Manual Configuration

    Figure 4-6 Initialize the devices Tap One-key Config to finish the configuration of the VTO and VTH, as well as the SIP server. Step 9 The status bar will suggest whether your configuration is successful. Manual Configuration You could manually configure the parameters you want to modify. 4.3.1 Configuring Network Parameters You can choose to connect the VTH to the network either through WLAN or LAN.

  • Page 22: Configuring Sip Server

    Figure 4-7 WLAN 4.3.1.2 LAN Step 1 Tap and hold Setting for about 3 seconds, and enter the password that you set for the VTH. Tap Network > LAN. Step 2 Step 3 Enter local IP subnet mask and gateway that you plan for the VTH. You can also tap to enable the DHCP function to obtain IP information automatically.

  • Page 23: Configuring Vth

    Tap SIP Server. Step 2 Figure 4-9 SIP server Step 3 Configure the SIP server parameters. Set Enable Status to Step 4 Tap OK. Step 5 Table 4-1 SIP server Parameter Description When the platform works as SIP server, server IP is the IP address of the ...

  • Page 24: Configuring Vto

    Figure 4-10 VTH configuration Step 3 Enter room number (such as 9901 or 101#0). If there is an extension VTH, room number must end with #0. Otherwise, it will fail to connect to VTO. Tap OK. Step 4 4.3.4 Configuring VTO Step 1 Tap and hold Setting for about 3 seconds, and enter the password that you set for the VTH.
  • Page 25 4.3.4.2 Adding Main VTO Step 1 Enter main VTO name, VTO IP address, username and password. Step 2 Set Enable Status to Step 3 Check whether the configuration is successful by checking the status bar at the top right corner. 4.3.4.3 Adding Sub VTO Step 1 Enter sub VTO name, sub VTO IP address, username, and password.

  • Page 26: Commissioning

    Commissioning After the basic configuration is complete, check whether the intercom function can work. VTO Calling VTH Step 1 Dial a room number on the VTO (for example, 9901). Step 2 on the VTH to answer the call. Figure 5-1 Call VTH from VTO VTH Monitoring VTO A VTH can monitor VTO.
  • Page 27 Figure 5-2 Door Figure 5-3 Monitoring device...

  • Page 28: Appendix 1 Cybersecurity Recommendations

    Appendix 1 Cybersecurity Recommendations Mandatory actions to be taken for basic device network security: Use Strong Passwords Please refer to the following suggestions to set passwords: The length should not be less than 8 characters;  Include at least two types of characters; character types include upper and lower case ...
  • Page 29 We recommend you to bind the IP and MAC address of the gateway to the device, thus reducing the risk of ARP spoofing. Assign Accounts and Privileges Reasonably According to business and management requirements, reasonably add users and assign a minimum set of permissions to them.

This manual is also suitable for:

Vth2622gw-wVth2621gw-wpVth2621g-pVth2621gw-p
