- Page 1 物料号码 750-00-02041 厂内型号 厂外型号 物料名称 说明书 品牌 材质 日期 2020/04/06 规格 A5成品大小 要求 A4纸4页,封面105铜版纸黑白，黑白书写纸黑白印刷 版本 设计 确认 核准 此页为说明，不印...
- Page 2 Commercial LED Display User Manual...
-
Page 3: Table Of Contents
Contents Important Information ........................2 Safety Warning ......................... 2 Notes ............................3 Introduction to the Product ......................4 Product Appearance ......................... 4 Performance Features ......................4 External Connections ........................4 Main Menu ............................6 Main Menu ..........................6 PC Menu ........................... 7 Picture Menu .......................... -
Page 4: Important Information
Important Information Safety Warning To use the product safely, correctly, and to keep users from suffering injury or property loss, please observe the following safety precautions when installing, using or maintaining. Please read this handbook before operating the product and keep the handbook for future reference. -
Page 5: Notes
Notes Please put the product in a flat, stable and dry place. Avoid direct sunlight, high temperature, humidity, dust, and corrosive gas. If the product is installed on the wall, please make sure the wall’s load bearing capacity is sufficient. -
Page 6: Introduction To The Product

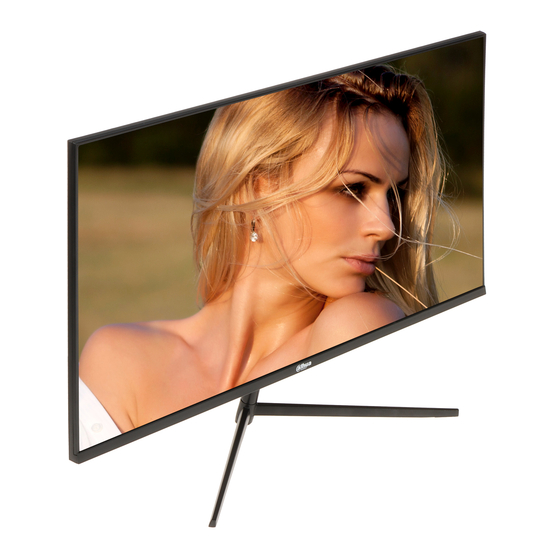

Introduction to the Product Product Appearance （Photos are for reference only） Performance Features Low energy consumption, long service life. High contrast ratio and high luminance. Automatically eliminates ghosting. Rapid response times, no trailing image. Thin and light. ... - Page 7 Port A： Port B： Port C： VGA INPUT: D-SUB 15 pins Connector HDMI INPUT: HDMI Connector AUDIO IN: 3.5mm audio port AUDIO OUT: 3.5mm audio port Attention Please turn off the power of the external device and the product when connecting.
-
Page 8: Main Menu
Main Menu Main Menu To activate, press the menu button on the bottom left of the bezel. The sub-menus of the main menu are: PC Menu, Picture menu, Audio menu, OSD menu and Function menu. Press the menu button to select the sub-menu item. The selected menu item will show a bordered wireframe. -
Page 9: Pc Menu
PC Menu（PC SOURCE） PC menu sets the contrast, brightness, backlight,color temperature and scale function. Press ▲▼ button to adjust value when item is selected, press menu button to exit. Picture Menu（HDMI SOURCE） Picture menu can set contrast, brightness, backlight, hue, saturation, sharpness, color temperature and scale function. -
Page 10: Osd Menu
OSD Menu OSD menu can adjust the sleep timer, enable / disable auto sleep, change the language, adjust H-position, adjust V-position, adjust duration, adjust transparency, and reset defaults. Press ▲▼ button to adjust value when item is selected, press menu button to exit. Function Menu（HDMI SOURCE）... -
Page 11: Geometry Menu
Geometry Menu（PC SOURCE） Geometry menu can adjust the H-position, V-position, clock, phase and auto adjust. Press ▲▼ button to adjust value when item is selected, press menu button to exit. Channel Selection “Source” menu can select channel (input). The options include VGA, HDMI. Press ▲▼ button to adjust value when item is selected, press menu button to exit. -
Page 12: How To Clean Product
How to Clean Product 1. Please wipe dust and other particles off with a clean soft towel. 2. If it is still not clean, please use a neutral cleaner along with the clean soft towel. Wipe dry after cleaning it. 3. - Page 13 Switch to another channel or input. Check whether the audio signal line is connected. Check whether the video signal line is connected. Interference from by other electric appliance may be present. Adjust fine tuning setting. Adjust luminance setting. Adjust contrast ratio setting. Adjust color setting.
