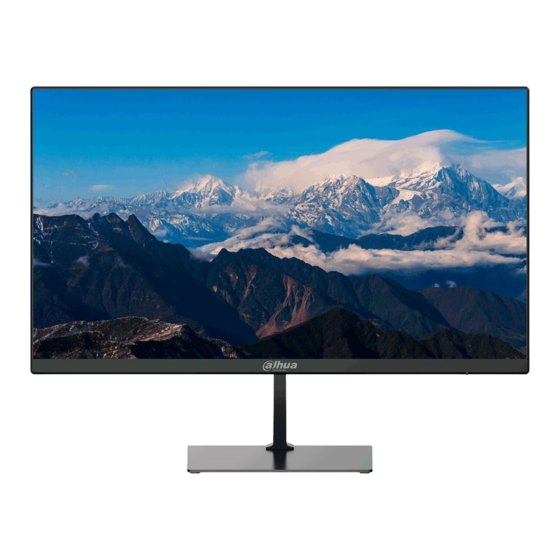

- Page 1 C200 Series Displays User’s Manual ZHEJIANG DAHUA VISION TECHNOLOGY CO., LTD. V1.0.0...
-
Page 2: Foreword
(hereinafter referred to as "the Device"). Read carefully before using the device, and keep the manual safe for future reference. Models This manual applies to Dahua C200 Series monitor models. For example: DHI-LM22-C200, DHI-LM24- C200, DHI-LM27-C200. Safety Instructions The following signal words might appear in the manual. - Page 3 User’s Manual About the Manual The manual is for reference only. Slight differences might be found between the manual and the product. We are not liable for losses incurred due to operating the product in ways that are not in ...
-
Page 4: Important Safeguards And Warnings
User’s Manual Important Safeguards and Warnings This section introduces content covering the proper handling of the device, hazard prevention, and prevention of property damage. Read carefully before using the device, and comply with the guidelines when using it. Operation Requirements WARNING Do not tread on or squeeze the power line, especially the plug or connection point of the power ... - Page 5 User’s Manual If the product is installed on the wall, please make sure the wall's load bearing capacity is sufficient. To avoid falling and injuring people, install according to the included instructions with mounting hardware. Do not put the product in flammable or corrosive gaseous environment, which may cause fire or ...
- Page 6 User’s Manual Only qualified service people can maintain. If the product gets any kind of damage, such as damage to the plug, foreign matter or liquid into the unit, exposure to rain or humidity, loss of function, or dropped, please contact dealer or after-sales service center. Be careful during maintenance of product even if the power is off.
-
Page 7: Table Of Contents
User’s Manual Table of Contents Foreword ................................I Important Safeguards and Warnings ......................III 1 Packing List ..............................1 2 Angle Adjustment ............................2 3 Button Description ............................3 4 Cable Connection ............................4 5 Menu Description ............................5 6 ECO Modes and Gameplus ..........................7 7 Operation Menu (OSD) Function Descriptions .................... -
Page 8: Packing List
User’s Manual Packing List Packing list Table 1-1 Packing list Name Power adapter Base/Stand Signal cable Screws User's manual Mount stud Mount adapter The above figure is for illustration only and the physical accessories shall govern. -
Page 9: Angle Adjustment
User’s Manual Angle Adjustment The screen can be adjusted by inclining forward and backward; however, the specific adjustment depends on the specific model of the device. Generally, it may be inclined 5±2° forward and 20±2° backward. Angle adjustment Tilting angle Forward angle Backward angle –5°... -
Page 10: Button Description
User’s Manual Button Description Angle adjustment Table 3-1 Button description Name Description LED indicator light The light is blue when the screen is turned on. The light is red when the screen enters energy saving mode. The light is off when the screen is turned off. OSD/Power button. -
Page 11: Cable Connection
User’s Manual Cable Connection Input and output ports The above ports are for explanation only, and the specific ports are subject to the actual display. Use the HDMI-DVI cable to connect the HDMI IN interface Use the HDMI cable to connect the HDMI IN interface of the product to the DVI OUT interface of a PC. -
Page 12: Menu Description
User’s Manual Menu Description The color and shape of the OSD menu of the actual computer may be slightly different from them shown in the figure. Specifications of the OSD menu may change with improvements of functions without prior notice. ... - Page 13 User’s Manual Press to select an option, then press to confirm the setting and exit the current menu. Press to exit the menu interface.
-
Page 14: Eco Modes And Gameplus
User’s Manual Modes and Gameplus Press any one of the buttons (M, , E, ) to activate the navigation window. Navigation window Press to select to switch ECO modes. These modes (STANDARD, MOVIE, RTS, FPS, GAME, and TEXT) can be used to optimize settings according to your activity. Standard mode is suitable for most activities. -
Page 15: Operation Menu (Osd) Function Descriptions
User’s Manual Operation Menu (OSD) Function Descriptions Functions of the monitor vary with models, and the functions in this manual are for reference only. Table 7-1 Menu description Menu Sub Menu Value Range BRIGHTNESS 0-100 CONTRAST 0-100 BRIGHTNESS STANDARD/GAME/RTS/FPS/MOVIE/TEXT ON/OFF H. -
Page 16: Product Specifications
User’s Manual Product Specifications Product model DHI-LM22-C200 DHI-LM24-C200 DHI-LM27-C200 Screen Size 21.45" 23.8" 27" Aspect Ratio 16:9 16:9 16:9 Viewing Angle 178°(H)/178°(V) 178°(H)/178°(V) 178°(H)/178°(V) Contrast ratio 3000:1（TYP） 3000:1（TYP） 3000:1（TYP） Colors 16.7M 16.7M 16.7M Resolution 1920 × 1080 1920 × 1080 1920 ×... -
Page 17: Troubleshooting
User’s Manual Troubleshooting Appendix Table 1-1 FAQ Faults Occurring Possible Solutions Check if the power is on. The power indicator light is not on Check if the power cord is connected. Check if the function of plug-and-play of the device is compatible with PC. - Page 18 User’s Manual...
