Summary of Contents for Harken Performa 30 STP

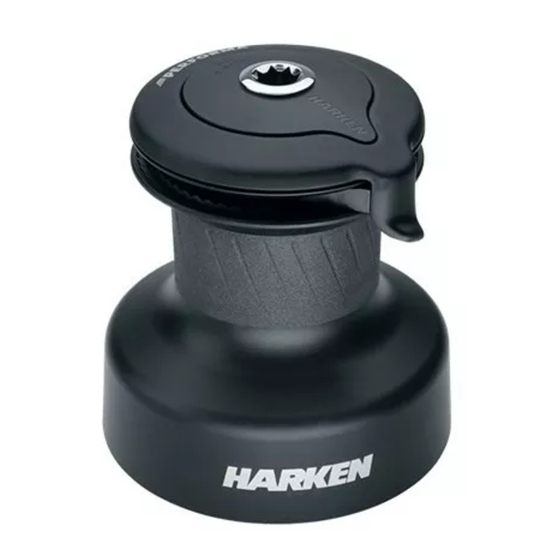

- Page 1 Installation and Maintenance Manual MRPW30.2 Performa Winch 30 STP ™...
-
Page 2: Table Of Contents
Outline Installation Installation procedure Positioning the self-tailing arm Maintenance Washing Maintenance table Disassembly procedure Exploded view with maintenance products Assembly Harken limited worldwide warranty ® Ordering spare parts Exploded view Parts list 30 STP Performa Winch ™ Installation and Maintenance Manual... -
Page 3: Introduction
® In case of doubt the Harken Tech Service is at your disposal at techservice@harken.it This Manual is available only in English. If you do not fully understand the English language, do not carry out the operations described in this Manual. -
Page 4: Installation
It is the installer's responsibility to carry out all structural tests needed to ensure that the deck can bear the load. ® Harken does not supply the screws needed to install the winch since these may vary depending on the deck on which it is to be installed. - Page 5 Procedure To install the winch, remove the drum and use Socket Head (SH) bolts. Tools needed One medium flat-bladed screwdriver To identify the various parts, refer to the exploded view at the end of this Manual. Torque to apply when assembling 3.
-
Page 6: Installation Procedure
B. Remove the winch and drill the five 6.2 mm diameter holes. ® C. Bolt the base of the winch to the deck using five M6 bolts (not supplied by Harken ), correctly chosen for the thickness and type of the boat deck. Consult the yard that built the boat in case of doubt. -
Page 7: Positioning The Self-Tailing Arm
Installation and maintenance of winches must be carried out exclusively by specialized personnel. ® In the case of doubt contact Harken Tech Service at techservice@harken.it Disassembly procedure Tools needed... - Page 8 Carry out procedure as shown in the paragraph on winch installation and then do the following: 7. Unscrew the five drum support screws 6. Remove the stripper arm support ( 20Nm/180 in-lb) 10. Slide out the central shaft; 8. Slide out the drum support 9.
- Page 9 If it is necessary to replace any jaws of the winch, proceed as follows: I. Unscrew the 3 screws II. Remove the jaws ( 4Nm/35 in-lb) Once the winch is completely disassembled, clean the parts with a degreasing that does not leave residues, proper to clean metal components;...
-
Page 10: Exploded View With Maintenance Products
Apply Harken grease: 1. on assy socket screw - 2. on drum gear ® NOTICE On every gear and every component that must be greased, apply Harken grease with a brush in a ® proper quantity as shown below: NOTICE... -
Page 11: Assembly
Hold the spring closed and slide the pawl into its housing. Once in position, check that the pawls can be easily opened and closed with a finger. In case of doubt concerning the assembly procedure contact Harken® Tech Service: techservice@harken.it 30 STP Performa Winch ™... -
Page 12: Harken Limited Worldwide Warranty
® Harken ® limited worldwide warranty Refer to the Harken ® Limited Worldwide Warranty in the Harken® Catalogue and on the website www.harken.com Ordering spare parts Spare parts can be requested from Harken ® as described in the Harken® Limited Worldwide... -
Page 13: Exploded View 1/2
Exploded view 1/2 30 STP Performa Winch ™ Installation and Maintenance Manual... - Page 14 Exploded view 2/2 30 STP Performa Winch ™ Installation and Maintenance Manual...
-
Page 15: Parts List
Bushing Ø55xØ62x34 M0634803 Screw M 6x18 - A4 UNI 5931:2003 S413330085 Bushing Ø12xØ14x11 M0604394 Bush 1214-12 S413120002 Washer Ø22.5xØ45x1 S675530083 Roller Ø5x15 *Available with service kit; see website www.harken.com **Winch product sticker 30 STP Performa Winch ™ Installation and Maintenance Manual...
