Summary of Contents for Harken Performa 30.2 PTP

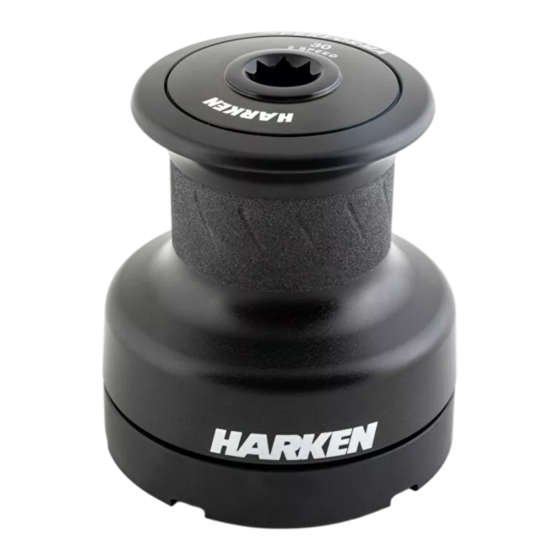

- Page 1 Installation and Maintenance Manual MRPW30 Performa Winch 30.2 PTP ™...
- Page 2 Maximum working load Outline Installation Installation procedure Maintenance Washing Maintenance table Disassembly procedure Exploded view with maintenance products Assembly Harken limited worldwide warranty ® Ordering spare parts Exploded view Parts list 30.2 PTP Installation and Maintenance Manual Performa Winch ™...
-
Page 3: Technical Characteristics
Harken accepts no responsibility for defective installation or reassembly of its winches. In case of doubt the Harken Tech Service is at your disposal at techservice@harken.it This Manual is available only in English. If you do not fully understand the English language, do not carry out the operations described in this Manual. -
Page 4: Installation
It is the installer's responsibility to carry out all structural tests needed to ensure that the deck can ® bear the load. Harken does not supply the screws needed to install the winch since these may vary depending on the deck on which it is to be installed. -
Page 5: Installation Procedure
Installation procedure To install the winch, remove the drum and use 5x M6 socket head (SH) bolts. Tools needed One medium flat-bladed screwdriver Hex key: size 4 To identify the various parts, refer to the exploded view at the end of this Manual. Torque to apply when assembling Install the winch on the deck in the position you have chosen, keeping in mind the limits described on page 3. - Page 6 B. Remove the winch and drill the five 6.2 mm diameter holes. C. Bolt the base of the winch to the deck using 5x M6 bolts (not supplied by Harken), correctly chosen for the thickness and type of the boat deck. Consult the yard that built the boat in case of doubt.
-
Page 7: Maintenance
Installation and maintenance of winches must be carried out exclusively by specialized personnel. ® In the case of doubt contact Harken Tech Service at techservice@harken.it Disassembly procedure Tools needed... - Page 8 Maintenance Carry out the procedure as shown in the paragraph on winch installation and then do the following: 7 . Slide out the drum support 8. Slide out the central shaft, 6. Unscrew the 5x M6 screws the pawls and their springs Hex key size: 5 ( 10Nm/88,5 in-lb) 9.
- Page 9 Once the winch is completely disassembled, clean the parts with a degreasing that does not leave residues, proper to clean metal components; rinse plastic parts in fresh water. Once you have done this, dry the parts with cloths that do not leave residue. Inspect gears, bearings, pins and pawls for any signs of wear or corrosion.
- Page 10 Apply Harken grease: 1. on assy socket screw - 2. on drum gear ® NOTICE On every gear and every component that must be greased, apply Harken grease with a brush in a proper ® quantity as shown below: NOTICE...
-
Page 11: Ordering Spare Parts
Once in position, check that the pawls can be easily opened and closed with a finger. ® In case of doubt concerning the assembly procedure contact Harken Tech Service: techservice@harken.it ® Harken limited worldwide warranty ®... - Page 12 Manufacturer Harken Italy S.p.A. ® Tech Service Via Marco Biagi, 14 Email: techservice@harken.it 22070 Limido Comasco (CO) Italy Tel: (+39) 031.3523511 Customer Service Fax: (+39) 031.3520031 Tel: (+39) 031.3523511 Email: info@harken.it Email: info@harken.it Web: www.harken.com Headquarters Harken , Inc. ®...
-
Page 13: Exploded View
Exploded view 1/2 30.2 PTP Installation and Maintenance Manual Performa Winch ™... - Page 14 Exploded view 2/2 30.2 PTP Installation and Maintenance Manual Performa Winch ™...
-
Page 15: Parts List
Socket support Winch 20 PT S760690053 Top plate W30.2P S760700052 Handle socket W30.2P M0638803 Screw M5x14 UNI 5931 M0601903 Screw M6x16 UNI1207 S678720082 Washer Ø56.5xØ75x1.5 *Available with service kit; see website www.harken.com **Winch product sticker 30.2 PTP Installation and Maintenance Manual Performa Winch ™...
