32.2

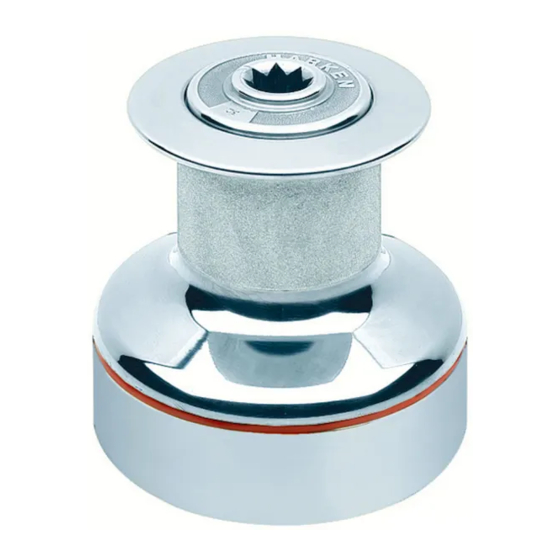

Two Speed Winch
Winch Parts
Installation
Service
Required Tools
Screwdriver
Plastic Head Hammer or Mallet
Small Knife
Brush
Rags
Solvent
Oil
Grease
Parts List
008
Pawl
038
Pawl Spring
6143
Top Screw
27006
Bearing Spacer
27215
Center Stem
27218
Spindle
27219
Ratchet Gear
27222
Gear Shaft
27560
Pawl Gear
27791
Plastic Washer
27908
Washer
27909
Cover Plate
28168
Red Line Ring
30608
Ratchet Head
703192
Bearing
726073
Bearing
927216
Aluminum Drum
928534
Bronze Drum
Suggested Service Kits
BK4512
10
008 Pawls
10
038 Springs
BK4513
100 ml Grease
When ordering parts, please
include a "B" before each
number (i.e. B008)
