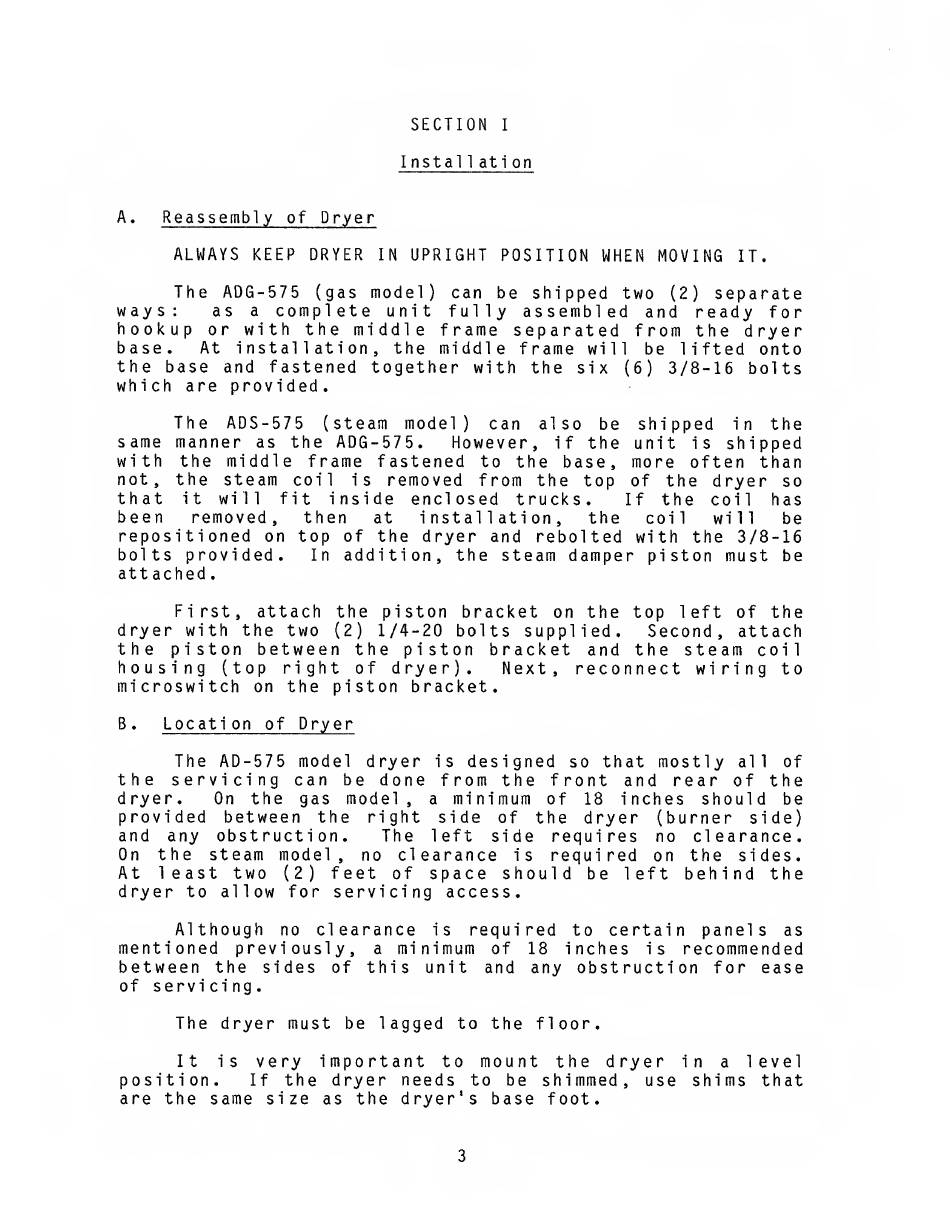

SECTION I
Instal1 ation
A.
Reassembly of Dryer
ALWAYS KEEP DRYER IN UPRIGHT POSITION WHEN MOVING IT.
The ADG-575 (gas model) can be shipped two (2) separate
ways:
as
a complete
unit
fully assembled
and
ready for
hookup or with the middle frame separated from the dryer
base.
At installation, the middle frame will
be lifted onto
the base and fastened together with the six (6) 3/8-16 bolts
which are provided.
The
ADS-575
(steam
model)
can
also
be
shipped
in
the
same manner as the ADG-575.
However, if the unit is shipped
with
the middle frame fastened to the base, more often than
not, the steam coil
is removed from the top of the dryer so
that
it will
fit
inside
enclosed
trucks.
If the
coil
has
been
removed,
then
at
installation,
the
coil
will
be
repositioned on top of the dryer and rebolted with the 3/8-16
bolts provided.
In addition, the steam damper piston must be
attached.
First, attach the piston bracket on the top left of the
dryer with the two (2) 1/4-20 bolts supplied.
Second, attach
the
piston between the piston bracket
and the steam coil
housing
(top right of dryer).
Next,
reconnect wiring to
microswitch on the piston bracket.
B.
Location of Dryer
The AD-575 model dryer is designed so that mostly all
of
the
servicing can be done from the front and rear of the
dryer.
On
the
gas model,
a minimum of
18
inches
should
be
provided
between
the
right
side
of
the
dryer
(burner
side)
and
any
obstruction.
The
left
side
requires
no
clearance.
On
the
steam model,
no clearance
is
required on the
sides.
At
least two
(2)
feet of space should be left behind the
dryer to allow for servicing access.
Although
no
clearance
is
required to certain
panels
as
mentioned
previously,
a minimum of
18
inches
is
recommended
between the sides of this unit
and any obstruction for ease
of servicing.
The dryer must be lagged to the floor.
It
is
very
important
to mount
the dryer
in
a
level
position.
If the dryer needs to be shimmed,
use shims that
are the same size as the dryer's base foot.
