ADC AD-310 Installation Manual

Phase 7 tilting (with tilting options - natural gas only)
Hide thumbs Also See for AD-310:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Service Manual

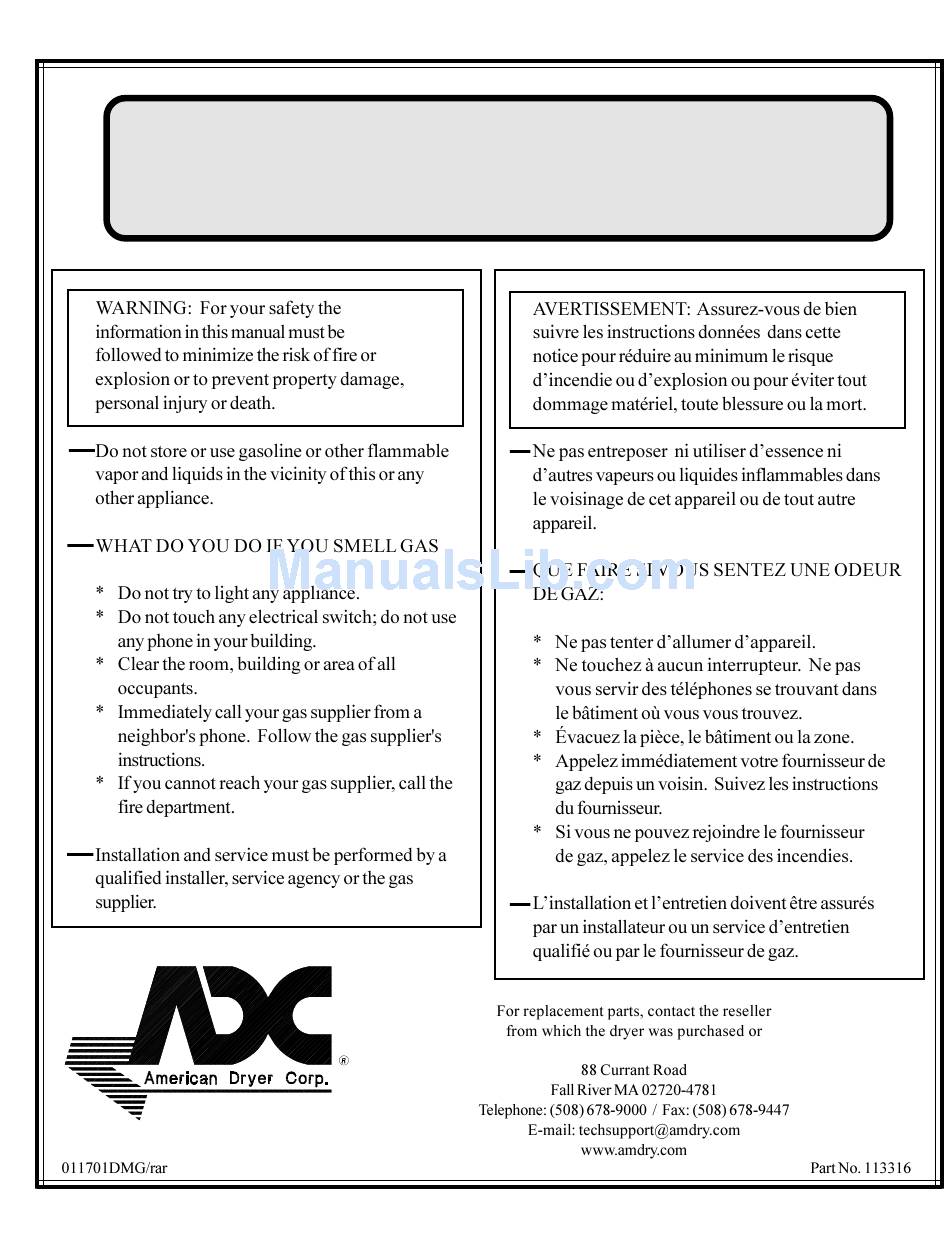

AD-310 Phase 7
(with Tilting Options - Natural Gas Only)
Installation Manual
American Dryer Corporation
ADC

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AD-310 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ADC AD-310

Summary of Contents for ADC AD-310

  • Page 1 AD-310 Phase 7 (with Tilting Options - Natural Gas Only) Installation Manual American Dryer Corporation...
  • Page 2 The following “FOR YOUR SAFETY” caution must be posted near the dryer in a prominent location. Important For your convenience, log the following information: AD-310 Phase 7 Tilting DATE OF PURCHASE _____________________________ MODEL NO. __________________________________________ RESELLER’S NAME _______________________________________________________________________________________...
  • Page 3 IMPORTANT CAUTION WARNING FOR YOUR SAFETY WARNING...
  • Page 4 WARNING must never be WARNING MUST NEVER BE IMPORTANT must not be...

  • Page 5: Table Of Contents

    Table of Contents SECTION I IMPORTANT INFORMATION ................3 SECTION II SPECIFICATIONS/DIMENSIONS and COMPONENT IDENTIFICATION/ LOCATION ......................... 6 SECTION III INSTALLATION PROCEDURES ................. 10 SECTION IV SERVICE/PARTS INFORMATION ..............39 SECTION V WARRANTY INFORMATION ................40...
  • Page 6 SECTION VI ROUTINE MAINTENANCE .................. 42 SECTION VII COMPONENT SYSTEM DESCRIPTIONS ............45 SECTION VIII BURNER and BASKET (TUMBLER)/LINT CHAMBER MANUAL RESET HI-LIMIT INSTRUCTIONS ................... 48 SECTION IX DATA LABEL LOCATION/INFORMATION ............49 SECTION X PROCEDURE FOR FUNCTIONAL CHECK OF REPLACEMENT COMPONENTS .......................

  • Page 7: Section I

    ADC assumes no responsibility for freight claims or damages. 6. If you need assistance in handling the situation, please contact the ADC Traffic Manager at (508) 678-9000. IMPORTANT: The basket (tumbler) section of the dryer must be transported and handled in an...
  • Page 8 4. Installation and service must be performed by a qualified installer, service agency, or gas supplier. 5. Dryer(s) must be exhausted to the outdoors. 6. Although ADC produces a very versatile dryer, there are some articles that, due to fabric composition or cleaning method, should not be dried in it.
  • Page 9 WARNING: DO NOT use heat for drying articles that contain plastic, foam, sponge rubber, or similarly textured rubber materials. Drying in a heated basket (tumbler) may damage plastics or rubber and also may be a fire hazard. 7. A program should be established for the inspection and cleaning of lint in the heating unit area, exhaust ductwork, and inside the dryer.

  • Page 10: Specifications/Dimensions And Component Identification

    NOTE: Dryers must be provided with a clean, dry, and regulated 80 PSI +/- 10 PSI (5.51 bars +/- 0.68 bars) air supply (equivalent volume = 11 cfh [0.31 cmh]). NOTE: ADC reserves the right to make changes in specifications at any time without notice or obligation.

  • Page 11: Location

    B. DIMENSIONS and COMPONENT IDENTIFICATION/LOCATION NOTE: ADC reserves the right to make changes in specifications at any time without notice or obligation.
  • Page 12 NOTE: ADC reserves the right to make changes in specifications at any time without notice or obligation.
  • Page 13 NOTE: ADC reserves the right to make changes in specifications at any time without notice or obligation.

  • Page 14: Installation Procedures

    SECTION III INSTALLATION PROCEDURES Installation should be performed by competent technicians in accordance with local and state codes. In the absence of these codes, the installation must conform to applicable American National Standards: ANSI Z223.1- LATEST EDITION (National Fuel Gas Code) or ANSI/NFPA NO. 70-LATEST EDITION (National Electrical Code) or in Canada, the installation must conform to applicable Canadian Standards: CAN/CGA-B149.1-M91 (Natural Gas) or CAN/CGA-B149.2-M91 or LATEST EDITION (for General Installation and Gas Plumbing) or Canadian Electrical Codes Parts 1 &...
  • Page 15 1. Reassembly Instructions For Gas Dryer Shipped In Two (2) Pieces 310 Gas - 1 Door/Forward Tilt NOTE: ADC reserves the right to make changes in specifications at any time without notice or obligation.
  • Page 16 310 Gas - 1 Door/Forward Tilt...
  • Page 17 a. Reassembly Instructions For Tilting Gas Dryers: Lift the basket (tumbler) section onto the base. 1) Forward tilt dryers have two (2) tilting pistons in the rear of the base. On the top of each piston is a clevis block. Use the four (4) 1/2” x 1-1/8” long hex head bolts with lock washers to secure each piston clevis block to the bottom of the basket (tumbler) section.
  • Page 18 2. Reassembly Instructions For Gas Dryer Shipped In Two (2) Pieces 310 Gas - 1 Door/2-Way Tilt NOTE: ADC reserves the right to make changes in specifications at any time without notice or obligation.
  • Page 19 310 Gas - 1 Door/2-Way Tilt...
  • Page 20 a. Reassembly For 1 Door/2-Way Tilt Gas Dryers: Lift the basket (tumbler) section onto the base. 1) 2-Way tilt dryers have four (4) tilting pistons in the base, one (1) on each corner. On the top of each piston is a clevis block to the bottom of the basket (tumbler) section. (Refer to [top] View 1 on the previous page.) 2) The flexible gas hose union is disconnected when the dryer is shipped in two (2) pieces.
  • Page 21 3. Reassembly Instructions For Gas Dryer Shipped In Two (2) Pieces 310 Gas - 2 Door/Rear Tilt (Pass Thru) NOTE: ADC reserves the right to make changes in specifications at any time without notice or obligation.
  • Page 22 310 Gas - 2 Door/Rear Tilt (Pass Thru)
  • Page 23 a. Reassembly For 2 Door/Rear Tilt (Pass Thru) Gas Dryers: Lift the basket (tumbler) section onto the base. 1) Rear tilt dryers have two (2) tilting pistons. The two (2) pistons are in the front corners of the base and there are two (2) piston posts in the rear corners of the base. On the top of both tilting pistons and both piston posts are clevis blocks.
  • Page 24 B. LOCATION REQUIREMENTS The tilt model dryer requires 18-inches (45.72 cm) on the right side of the dryer for ease of service. For the left side clearance on a 1 door dryer is 18-inches (45.72 cm), and for a 2 door dryer 36-inches (91.44 cm) is required due to the side exhaust.
  • Page 25 C. FRESH AIR SUPPLY REQUIREMENTS When the dryer is operating, it draws in room air, heats it, passes this air through the basket (tumbler), and exhausts it out of the building. Therefore, the room air must be continually replenished from the outdoors. If the make-up air is inadequate, drying time and drying efficiency will be adversely affected.
  • Page 26 D. EXHAUST REQUIREMENTS NOTE: For 1 door dryers, the 24-inch (60.96 cm) diameter exhaust duct exits from the rear of the base. For 2 door dryers, the 24-inch (60.96 cm) diameter exhaust duct exits from the left side of the base. 1.
  • Page 27 The internal dimensions of the dryer’s rectangular exhaust vent ductwork is 8-1/2” x 21-inches (20.6 cm x 53.5 cm). A transition piece to 24-inches (60.96 cm) in diameter round is supplied. The location’s exhaust duct must be at least 24-inches (60.96 cm) in diameter or, for a rectangular duct, have a cross-sectional area of 452 square inches (2,916 square centimeters).
  • Page 30 a. Outside Ductwork Protection 1) To protect the outside end of horizontal ductwork from the weather, a 90º elbow bent downward should be installed where the exhaust exits the building. If the exhaust ductwork travels vertically up through the roof, it should be protected from the weather by using a 180º turn to point the opening downward.
  • Page 31 E. COMPRESSED AIR SUPPLY SYSTEM The compressed air supply system of the tilting dryer consists of a number of pneumatic pistons located throughout the dryer. The pistons are actuated by solenoid and flow control valves that are under computer control. The pneumatic pistons are used to: -Tilt the Dryer For Loading and Unloading -Open and Close The Load and Unload Doors...
  • Page 32 3. Optional Automatic (Piston Operated) Load/Unload Doors If the dryer is equipped with the automatic door option then the loading doors are operated by two (2) pneumatic pistons located above the load doors. On 2 door dryers, the unloading doors on the back of the dryer will also be controlled by two (2) pistons, located above the unload doors.
  • Page 33 F. ELECTRICAL INFORMATION 1. Electrical Requirements It is your responsibility to have ALL electrical connections made by a properly licensed and competent electrician to assure that the electrical installation is adequate and conforms to local and state regulations or codes. In the absence of such codes, ALL electrical connections, material, and workmanship must conform to the applicable requirements of the National Electrical Code ANSI/NFPA NO.
  • Page 34 WARNING: 208 VAC and 230 VAC ARE NOT THE SAME. Any damage done to dryer components due to improper voltage connections will automatically VOID THE WARRANTY. NOTE: ADC reserves the right to make any changes in specifications at any time without notice or obligation.
  • Page 35 3. Electrical Connections NOTE: A wiring diagram is included with each dryer and is located in the blueprint pocket inside the left side control cabinet. The main electrical input connections to the dryer are the 3-phase (3ø) power leads (L1, L2, and L3), GROUND, and in the case of 4 wire service, the Neutral.
  • Page 36 The adjustment of the dryers in the field for elevations over 2,000 feet (609.6 meters) are made by changing each burner orifice. If this conversion is necessary, contact the reseller who sold the dryer or contact the ADC factory.
  • Page 37 2. Technical Gas Data a. Gas Specifications Natural Gas Manifold Pressure* 3.5 inches W.C. Inline Pressure - 12.0 inches - 29.9 mb 6.0 inches W.C. 14.92 mb Shaded areas are stated in metric equivalents * Measured at gas valve pressure taps when the gas valves are on. b.
  • Page 38 Consistent gas pressure is essential at ALL gas connections. It is recommended that a 2-inch (5.08 cm) pipe gas loop be installed in the supply line servicing a bank of dryers. An in-line pressure regulator must be installed in the gas supply line (header) if the (natural) gas pressure exceeds 12.0 inches (29.9 mb) of water column (W.C.) pressure.
  • Page 39 IMPORTANT: The dryer and its individual shutoff valve must be disconnected from the gas supply piping system during any pressure testing of that system at test pressures in excess of 1/2 psig (3.5 kPa). NOTE: The dryer must be isolated from the gas supply piping system by closing its individual manual shutoff valve during any pressure testing of the gas supply piping system at test pressures equal to or less than 1/2 psig (3.5 kPa).
  • Page 40 7. When the programmed drying time has expired, the Phase 7 OPL microprocessor controller (computer) will proceed into the Cool Down Cycle (Mode). 8. Once the Cool Down Cycle begins at the end of the heat cycle the L.E.D. display will read COOL DOWN TEMP ___/___MINUTE REMAINING.
  • Page 41 If one (1) burner lights and the other does not, then the system will shut both burners off and the burner fault code will be displayed showing which of the two (2) burners failed to ignite. NOTE: During the purging period, verify that ALL gas shutoff valves are open. 3) Once ignition is established, a gas pressure test should be taken at each gas valve pressure tap of the dryer to assure that the water column (W.C.) pressure is correct and consistent.
  • Page 42 4. GAS MODELS - The sail switch damper assembly was installed and adjusted at the factory prior to shipping. However, each sail switch adjustment must be checked to assure that this important safety control is functioning. 5. GAS MODELS - Be sure that ALL gas shutoff valves are in the open position. 6.

  • Page 43: Service/Parts Information

    1. Replacement parts should be purchased from the reseller from whom the ADC equipment was purchased. If the reseller cannot be contacted or is unknown, contact the ADC Parts Department for a reseller in your area. Parts may also be purchased directly from the factory by calling the ADC Parts Department at (508) 678-9000 or you may FAX in your order at (508) 678-9447.

  • Page 44: Warranty Information

    A. RETURNING WARRANTY CARD(S) 1. Before any dryer leaves the ADC factory test area, a warranty card is placed on the back side of the main door glass. These warranty cards are intended to serve the customer where we record the individual installation date and warranty information to better serve you should you file a warranty claim.
  • Page 45 IMPORTANT: No replacements, credits, or refunds will be issued for merchandise damaged in transit. 5. ALL returns should be shipped to the ADC factory in such a manner that they are insured and a proof of delivery can be obtained by the sender.

  • Page 46: Routine Maintenance

    Maximum operating efficiency is dependent upon proper air circulation. The accumulation of lint can restrict this airflow. If the guidelines in this section are met, an ADC dryer will provide many years of efficient, trouble-free, and most importantly, safe operation.
  • Page 47 MONTHLY Empty the compressed air filter bowl. EVERY THREE MONTHS Re-grease the two (2) 1-3/8” bearings that support the impellor/fan shaft. Use Shell Alvania #2 grease or its equivalent. Impellor/fan shaft bearings must be lubricated. Apply a hi-temperature grease to the four (4) 1-1/2” diameter basket (tumbler) drive shaft pillow block bearings. (Use Shell Alvania #2 grease or its equivalent.) Retighten setscrews in the collars of the four (4) 1-1/2”...
  • Page 48 B. ADJUSTMENTS 7 DAYS AFTER INSTALLATION and EVERY 6 MONTHS THEREAFTER Inspect bolts, nuts, screws (bearing setscrews), and nonpermanent gas connections (unions, shutoff valves, orifices, and grounding connections). Motor and drive belts should be examined. Cracked or seriously frayed belts should be replaced. Tighten loose V-belts when necessary. Complete operational check of controls and valves.

  • Page 49: Component System Descriptions

    SECTION VII COMPONENT SYSTEM DESCRIPTIONS A. BASKET (TUMBLER) DRIVE SYSTEM The basket (tumbler) is supported and driven by four (4) 11-inch (27.94 cm) diameter drive wheels. Two (2) of these wheels are attached to a 1-1/2” (3.81 cm) diameter idler shaft, while the other two (2) are attached to a 1-1/2”...
  • Page 50 B. BASKET (TUMBLER) The basket (tumbler) is made of 14-gauge stainless steel perforated panels, four (4) stainless steel ribs, and two (2) outer basket (tumbler) rings made of rolled steel angle iron that has been turned on a lathe for smoothness. The basket (tumbler) is a completely welded assembly so the perforated panels are not removable.
  • Page 51 5. Sail Switches (for Gas Dryers Only) The sail switches are located in the front and back of the burner boxes. A sail switch consists of a round damper plate on a lever arm, which is in contact with an electric switch. When the air blower comes on, it draws air through the gas burners.

  • Page 52: Burner And Basket (Tumbler)/Lint Chamber Manual Reset

    WARNING: Discontinue power to the dryer before attempting to reset hi-limit. IMPORTANT This dryer is equipped with a burner hi-limit and tumbler/lint chamber hi-limit thermostat which must be reset manually. WARNING: Discontinue power to dryer before attempting to reset hi-limit. ADC P/N: 114093...

  • Page 53: Data Label Location/Information

    When contacting ADC, certain information is required to insure proper service/parts information from ADC. This information is on the dryer data label affixed to the back panel of the main electrical cabinet located in the right hand electrical enclosure. When contacting ADC please have the model number and serial number available.
  • Page 54 THE DATA LABEL 1. MODEL NUMBER The model number is an ADC number, which describes the size of the dryer and the type of heat (gas, electric, or steam). 2. SERIAL NUMBER The serial number allows ADC to gather information on your particular dryer.

  • Page 55: Procedure For Functional Check Of Replacement

    SECTION X PROCEDURE FOR FUNCTIONAL CHECK OF REPLACEMENT COMPONENTS 1. For Models With Johnson Controls Direct Spark Ignition (DSI) Module (G760) Theory Of Operation: Start the drying cycle. When the gas burner ignites within the chosen trial for ignition time (6-seconds), the flame sensor detects gas burner flame and signals the DSI module to keep the gas valve open...as long as there is a call for heat.
  • Page 56 2. For Direct Spark Ignition (DSI) System Models Manufactured With ADC Module Part No. 880815 a. Upon completing installation of the replacement DSI module, reestablish power to the dryer. b. Starting the drying cycle. c. The ignition DSI module’s light emitting diode (L.E.D.) indicator will light “red”...

  • Page 57: Phase 7 Opl System Diagnostics

    SECTION XI PHASE 7 OPL SYSTEM DIAGNOSTICS IMPORTANT: YOU MUST DISCONNECT and LOCKOUT THE ELECTRIC SUPPLY and THE GAS SUPPLY BEFORE ANY COVERS or GUARDS ARE REMOVED FROM THE MACHINE TO ALLOW ACCESS FOR CLEANING, ADJUSTING, INSTALLATION, or TESTING OF ANY EQUIPMENT per OSHA (Occupational Safety and Health Administration) STANDARDS.
  • Page 58 CALL FOR SERVICE - Indicates a board failure. FRONT DOOR NOT CLOSED - A front door is open when it should be closed. REAR DOOR NOT CLOSED - A rear door is open when it should be closed. CHECK CONTROL POWER - Indicates control power is off. EXHAUST HIGH TEMP FAULT - Indicates the temperature in the basket (tumbler) is above 225º...
  • Page 59 B. I/O BOARD INPUT and OUTPUT L.E.D. INDICATORS...
  • Page 60 INPUTS: (RED) OUTPUTS: (GREEN) FDRC - Front Door Closed R_HEAT - Rear Heat FDRO - Front Door Open AUDIO ALERT - Horn On TBOL - Basket (Tumbler) Overload FWD - Basket (Tumbler) Forward FNOL - Fan Overload REV - Basket (Tumbler) Reverse RDWN - Rear Down AIR JET - Air Jet On FDWN - Front Down...
  • Page 61 RDRO – (RED L.E.D.) This L.E.D. will indicate the status of the Rear Doors. If the doors are open, then the L.E.D. is ON. FAN – (RED L.E.D.) This L.E.D. will indicate the status of the Blower Fan. If the fan is on, then the L.E.D.
  • Page 62 Input/Output (I/O) Board Output Description (“Green” light emitting diode [L.E.D.]) R_HEAT – (GREEN L.E.D.) This L.E.D. will indicate the status of the Rear Heat output. If the request to turn on the Rear Burner is made, then the L.E.D. is ON. ALERT –...
  • Page 63 16. OCL5 – (GREEN L.E.D.) This L.E.D. will indicate the status of the Open Collector #5 output. If the request to turn on the Open Collector #5 is made, then the L.E.D. is ON. (Programmable and Defaulted to Rear Down.) 17.

  • Page 64: Troubleshooting

    SECTION XII TROUBLESHOOTING IMPORTANT: YOU MUST DISCONNECT and LOCKOUT THE ELECTRIC SUPPLY and THE GAS SUPPLY BEFORE ANY COVERS or GUARDS ARE REMOVED FROM THE MACHINE TO ALLOW ACCESS FOR CLEANING, ADJUSTING, INSTALLATION, or TESTING OF ANY EQUIPMENT per OSHA (Occupational Safety and Health Administration) STANDARDS.
  • Page 65 NOTE: SPRINKLER MUST HAVE POWER FOR THE DRYER TO OPERATE. B. Drive motor is not operating (does not start)... Microprocessor controller (computer) relay output indicator (either forward “FWD” or reverse “REV”) is on. 1. Blown drive motor contactor overloads. 2. Failed drive motor contactor. 3.
  • Page 66 f. V-belts are too tight. g. Dryer has an oversized load. h. Voltage to the dryer is incorrect...check dryer data label for specified voltage. 2. Failed overload protector... a. Incorrect overload setting. E. Impellor (fan) motor is not operating (does not start)... Microprocessor controller (computer) input/output (I/O) board “FAN”...
  • Page 67 2. Failed overload protector... a. Incorrect overload setting. 3. Blown drive motor and blower (fan and impellor) motor fuses or overloads. 4. Failed motors (both blower [fan and impellor] motor and drive motor). 5. Failed microprocessor controller (computer). G. Microprocessor controller (computer) display board light emitting diode (L.E.D.) display reads “BAD PROBE”...
  • Page 68 5. Front or rear doors are opened during cycle. 6. Failed microprocessor controller (computer) input/output (I/O) board. Microprocessor controller (computer) light emitting diode (L.E.D.) displays “Lint Drawer Open.” 1. Lint drawer is not closed ALL the way. 2. Lint drawer switch is out of proper adjustment. 3.
  • Page 69 2) Failure in drive motor circuit. b. Faulty rotation sensor. c. Broken wire or connection between rotation sensor and microprocessor controller (computer) display board. d. Failure in rotational sensor circuit, magnet missing, or gap too large. e. Basket (tumbler) rotation below 12 RPMS. Microprocessor controller (computer) reads “Exhaust High Temp Fault”...
  • Page 70 2. Impellor (fan/blower) out of balance... a. Excessive lint buildup on impellor (fan/blower)...check air jet. b. Failed impellor (fan/blower). 3. Loose motor mount. 4. Failed idler bearings or basket (tumbler) bearings. 5. V-belt(s) either too tight or too loose. 6. Basket (tumbler) drive wheels are worn or are loose. 7.

  • Page 71: Optional Sprinkler System Components

    SECTION XIII OPTIONAL SPRINKLER SYSTEM COMPONENTS OPTIONAL SPRINKLER CIRCUIT COMPONENTS AUTO “EMERGENCY STOP” (E-Stop) RELAY This device, located in the front right electrical enclosure, supplies the main control voltage to the dryer. The dryer’s sprinkler circuit supplies or removes 120 VAC to the coil of this relay for the “EMERGENCY STOP”...
  • Page 72 SPRINKLER AND MAIN POWER CONNECTIONS There are two (2) individual power connections to the dryer that includes the sprinkler system option. 1. Main dryer power (3-phase [3ø]). 2. Dedicated sprinkler system circuit power (single-phase [1ø]). Both of these connections are at the voltage rating of the dryer and can be installed in the front right base electrical enclosure.
  • Page 73 Sprinkler Option Temperature Controller Settings NOTE: Refer to Controller’s User’s Manual for further information on controller options. Message Message Settings Display Description FULL SECURITY - SET TO 110 (DISPLAYED AS 1) "VIEW ONLY" SECr SECURITY CODE NO SECURITY - SET TO 111 (DISPLAYED AS 4) "ALL FEATURES UNLOCKED"...
  • Page 75 ADC 113316 1- 02/09/01-15 2* 04/06/01-25...
