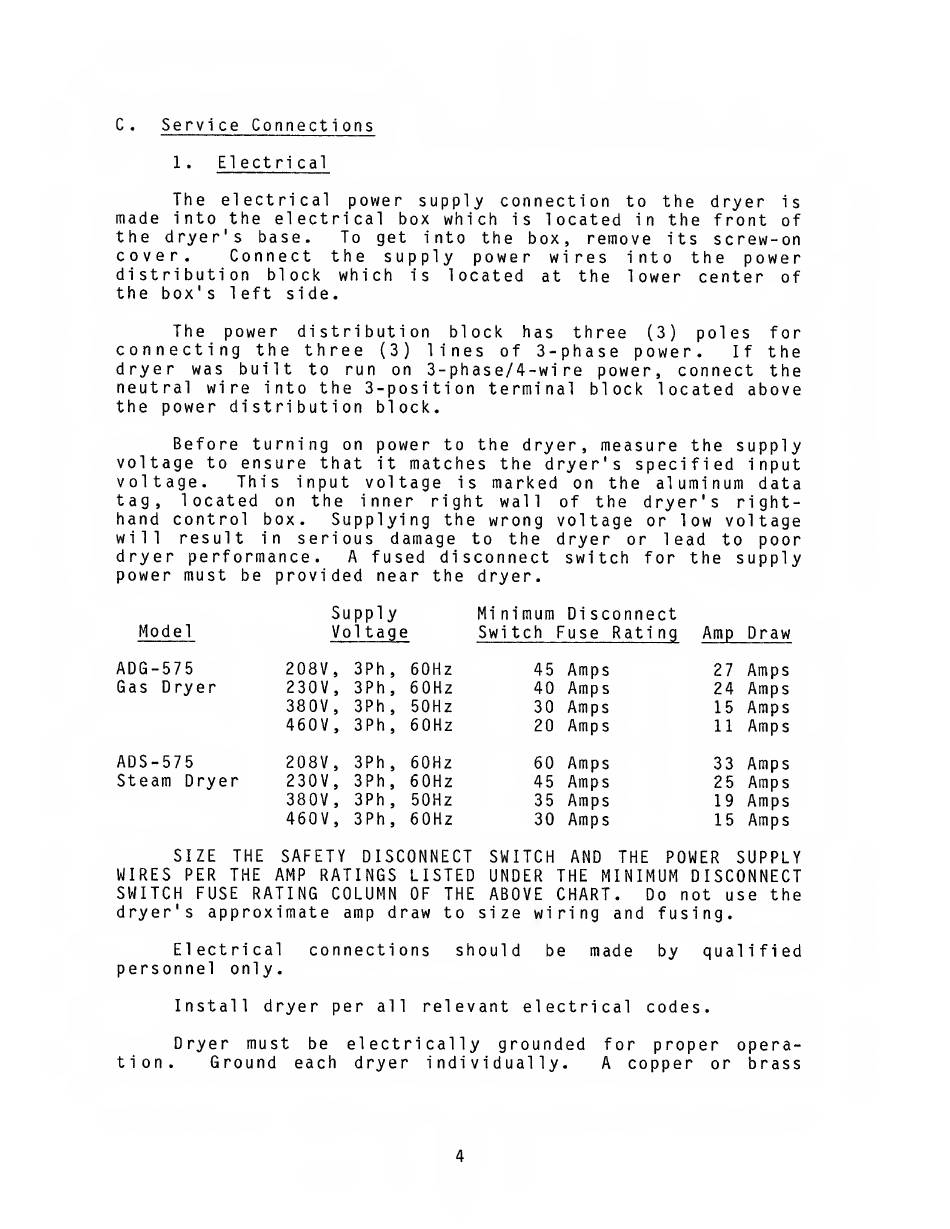

C. Service Connections
1. Electrical
The electrical power supply connection to the dryer is
made into the electrical box which is located in the front of
the dryer's base. To get into the box, remove its screw-on
cover. Connect the supply power wires into the power
distribution block which is located at the lower center of
the box's 1 eft side.
The power distribution block has three (3) poles for
connecting the three (3) lines of 3-phase power. If the
dryer was built to run on 3-phase/4-wire power, connect the
neutral wire into the 3-position terminal block located above
the power distribution block.
Before turning on power to the dryer, measure the supply
voltage to ensure that it matches the dryer's specified input
voltage. This input voltage is marked on the aluminum data
tag, located on the inner right wall of the dryer's right-
hand control box. Supplying the wrong voltage or low voltage
will result in serious damage to the dryer or lead to poor
dryer performance. A fused disconnect switch for the supply
power must be provided near the dryer.
Supply Minimum Di sconnect
Model
Voltag e Switch Fuse Rating
Amp Draw
ADG-575 208 V, 3Ph , 60Hz
45 Amps 27 Amps
Gas Dryer 230V, 3 P h , 6 0Hz
40 Amps
24 Amps
380V, 3Ph , 50Hz
30 Amps 15 Amps
460V, 3Ph , 60Hz
20 Amps 11 Amps
ADS - 57 5 208V, 3Ph , 60Hz
60 Amps 33 Amps
Steam Dryer 230 V, 3Ph , 60Hz
45 Amps
25 Amps
380V, 3 P h , 50Hz 35 Amps
19 Amps
460V, 3Ph , 60Hz
30 Amps 15 Amps
SIZE THE SAFETY
DISCONNECT SWITCH AND THE POWER SUPPLY
WIRES PER THE AMP RATINGS LISTED UNDER THE MINIMUM DISCONNECT
SWITCH FUSE RATING COLUMN OF THE ABOVE CHART. Do not use the
dryer's approximate amp draw to size wiring and fusing.
Electrical connections should be made by qualified
personnel only.
Install dryer per all relevant electrical codes.
Dryer must be electrically grounded for proper opera¬
tion. Ground each dryer individually. A copper or brass
4
