TC-610H Quantum
(
This manual contains important information on the correct operation, maintenance and safety information of
the compressor, all of which should be strictly adhered to. Failure to do so may cause damage of product
and/or potential hazards which are not covered under SPARMAX warranty.
Each SPARMAX compressor is tested and fully inspected to ensure its quality and performance are up to strict
standards at the time of factory dispatch.
IMPORTANT SAFETY INFORMATION
WARNING:
DO NOT apply voltage and frequency different from those specified on voltage label at the bottom of the unit.
CAUTIONS:
1. ONLY operate the compressor in dry, well-ventilated areas on a flat surface.
2. DO NOT leave the compressor in operation unattended.
3. DO NOT insert any foreign objects into the compressor or disassemble/modify/repair it in any way.
4. DO NOT touch the compressor during or soon after operation since it will become hot.
5. STOP and turn off the compressor immediately if burnt odor, white smoke, odd noises, or other abnormalities are detected.
NOTE: Emission of an oil-like odor during the first few uses of a new unit is normal. The odor will gradually lessen and disappear.

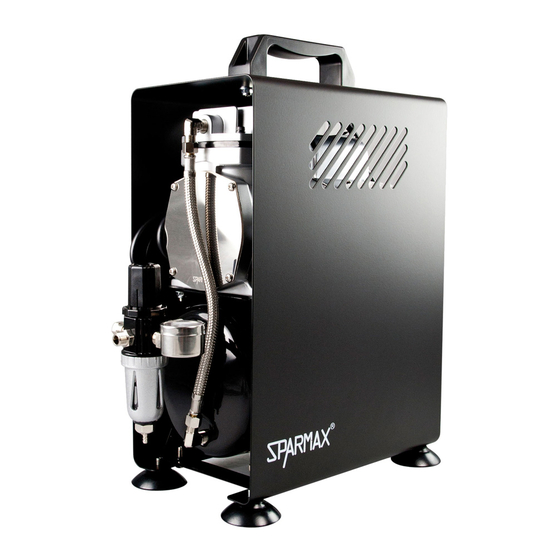

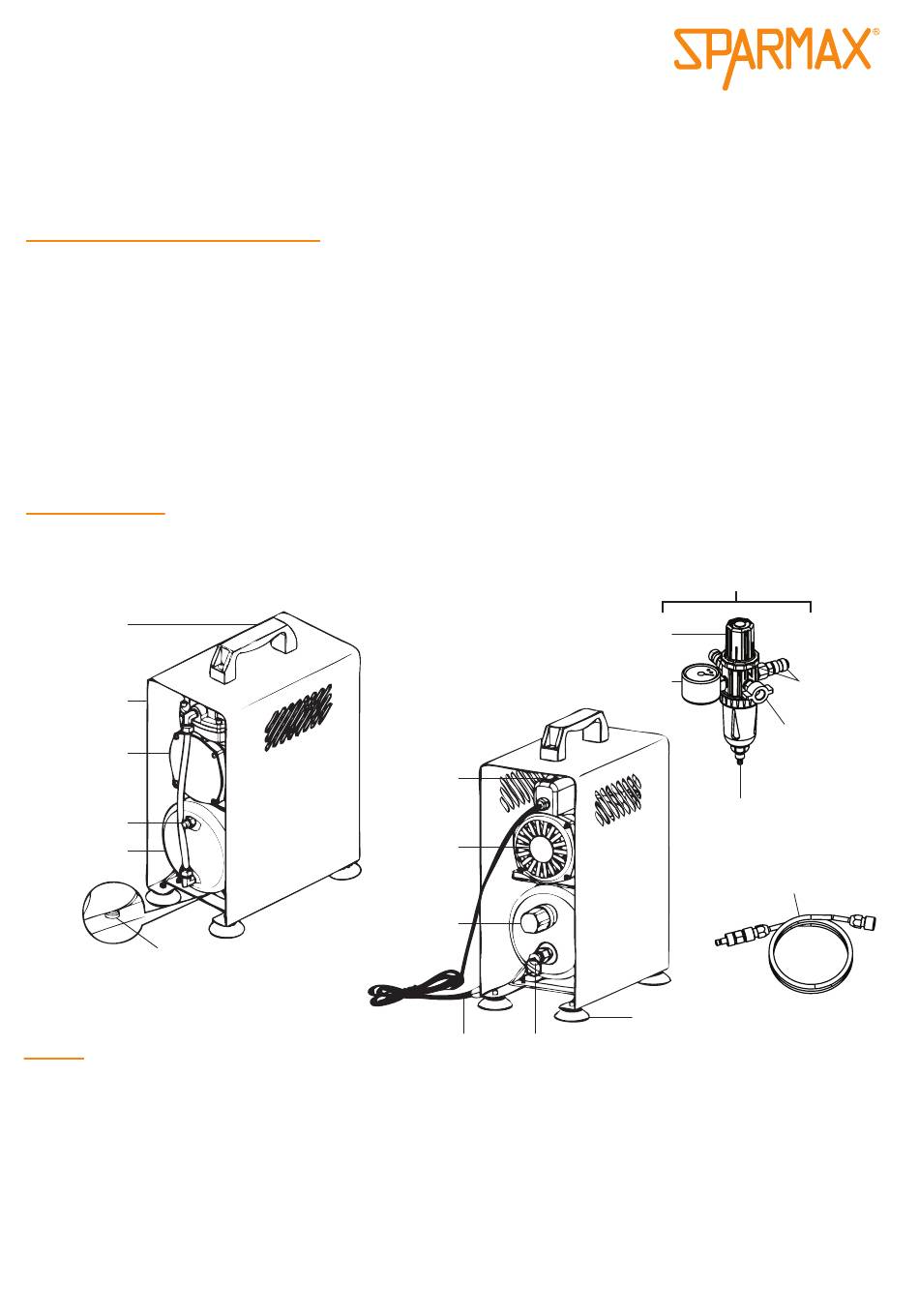

PARTS DIAGRAM
Check all parts are present and in good condition. Any transportation damages should be reported immediately to the original seller.
See voltage label at bottom of unit for specifications.
Handle
Steel Case
Compressor Motor
Air Tank Air Outlet
Air Tank
Air Tank Drain Valve
SET UP
1. Connect Detachable Connector of Regulator/Filter/Gauge Set to Air Tank Air Outlet.
2. The Pressure Regulator has 2 outlets with QD female and therefore allows simultaneous attachment of two airbrushes. Plug the hose end with QD male into the
QD female, and connect the other end to the airbrush. Make sure all connections are tight.
NOTE: If your airbrush fitting is not 1/8" PS, select from the Aztek, Badger and Paasche airbrush adaptors included for your convenience, and screw
onto the airbrush and hose.
3. To connect to a 2nd airbrush, plug the 2nd hose end with QD male into the QD female on the 2nd Outlet. Depending on the air consumption of the 2 airbrushes
connected, the compressor may or may not support the simultaneous use of both airbrushes.
Copyright © 2021 ANEST IWATA SPARMAX Co., Ltd. All rights reserved.
3510512A_TC610H_QUO_OR_manual_20210617
Manual
)
On/Off Switch
Fan Cover
Auto Stop
Pressure Switch
Plug
Regulator/Filter/Gauge Set
Pressure Regulator Knob
Pressure Gauge
Rubber Stands (4)
Air Tank Safety Valve
www.SPARMAXair.com
Air Outlets with
QD female (2)
Regulator
Air Inlet
(Detachable
Connector)
Filter Drain Valve
Braided Air Hose with QD male (2)
