Sparmax AC-500 User Manual

AC-500
User's Manual
This manual contains important information on product safety, set-up, operation, and maintenance. For optimum performance and safety,
read this manual carefully before using this product. Please keep this manual in a safe place for future reference.

IMPORTANT SAFETY INFORMATION

• When using electrical appliances, basic precautions should always be followed to reduce the risk of damage, fire, electric shock, personal injury
or property damage.
• Before connecting the compressor to a power outlet, check if the voltage indicated on the compressor corresponds to the mains voltage
(100-120 V or 220-240 V). Using the compressor with the wrong mains voltage could damage the unit, and could cause an electrical fire.
• Do not overload wall outlets, extension cords, or power strips beyond their capacity. This could cause a circuit breaker trip, insufficient voltage
supply, or an electrical fire.
• To avoid electric shock, never operate the compressor outdoors when raining, or in wet conditions.
• Always place the compressor on a flat and stable surface.
• Always remain in attendance when the compressor is in operation.
• Never place objects against, or on top of, the compressor. Operate the compressor in an open area without any obstructions that would restrict
the flow of fresh air into the compressor.
• Exceeding the pressure rating of pneumatic tools, such as airbrushes, spray guns, or air operated devices, could damage the tool and could also
cause serious personal injury. Never exceed the maximum allowable pressure rating recommended by your pneumatic tool's manufacturer.
• Do not insert any foreign objects into the openings of the compressor.
• Do not disassemble the compressor or attempt to modify the compressor in any way.

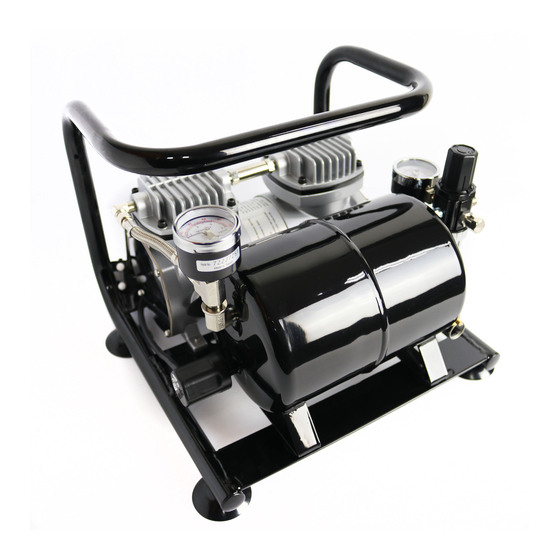

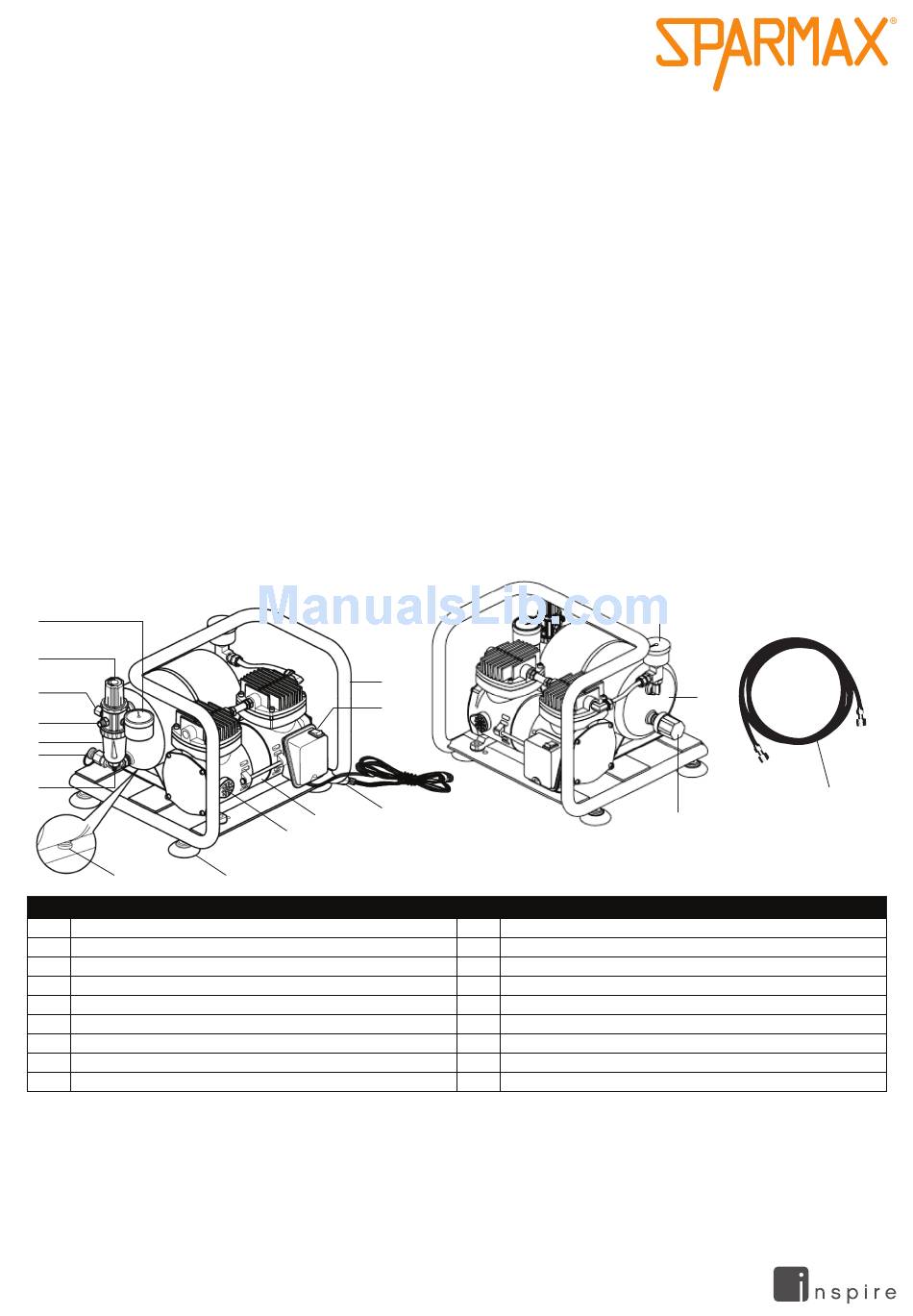

Product Overview

Front view
1
2
3
4
5
6
7
8
Parts List
1 Pressure Gauge
2 Pressure Regulator Knob
3 Outlet Cap
4 Air Outlets (2)
5 Moisture Trap
6 Air Tank Safety Valve
7 Moisture Trap Drain Valve
8 Air Tank Drain Valve
9 Rubber Stands (4)
Specifications
Motor: 1/6 HP AC
Air flow: 23 - 25 l/min (0.8 - 0.9 cfm) at open flow
Air tank: 2.5 liters with gauge
Auto on/ off: 2.8/ 4.1 bar (40/ 60 psi)
Dimensions: L29.5 x W29 x H24 cm
Weight: 8 kg / 17.6 lbs
Copyright © 2014 Ding Hwa Co., Ltd. All rights reserved.
SP_MAN_AC500_A4_20130409.1
14
13
12
11
10
9
Rear view
10 Filter Cover (Air Intake Filter behind Filter Cover)
11 Compressor Motor
12 Plug
13 On/Off Switch
14 Protective Frame
15 Air Tank Pressure Gauge
16 Air Tank
17 Auto Stop Pressure Switch
18 Braided Air Hoses (2)
www.SPARMAXair.com
Included Accessories
15
16
18
17
