TC-610H PLUS Manual
This manual contains important information on the correct operation, maintenance and safety information of
the compressor, all of which should be strictly adhered to. Failure to do so may cause damage of product
and/or potential hazards which are not covered under SPARMAX warranty.
Each SPARMAX compressor is tested and fully inspected to ensure its quality and performance are up to strict
standards at the time of factory dispatch.

IMPORTANT SAFETY INFORMATION

WARNING:
DO NOT apply voltage and frequency di erent from those speci ed on voltage label at the bottom of the unit.
CAUTIONS:
1. ONLY operate the compressor in dry, well-ventilated areas on a at surface.
2. DO NOT leave the compressor in operation unattended.
3. DO NOT insert any foreign objects into the compressor or disassemble/modify/repair it in any way.
4. DO NOT touch the compressor during or soon after operation since it will become hot.
5. STOP and turn o the compressor immediately if burnt odor, white smoke, odd noises, or other abnormalities are detected.
NOTE: Emission of an oil-like odor during the rst few uses of a new unit is normal. The odor will gradually lessen and disappear.

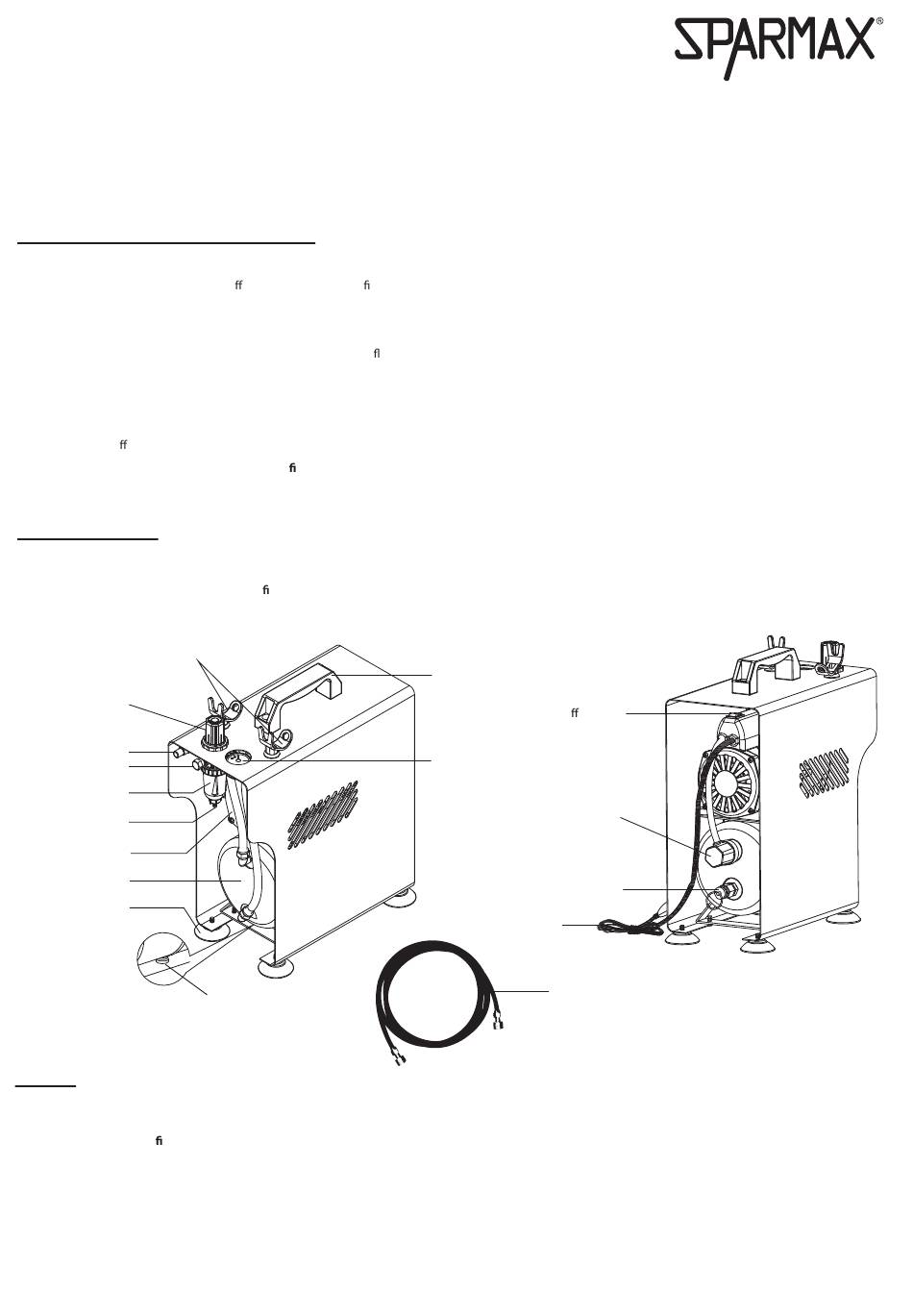

PARTS DIAGRAM

Check all parts are present and in good condition. Any transportation damages should be reported immediately to the original seller.
See voltage label at bottom of unit for speci cations.
Airbrush Holders (2)
Pressure Regulator
Knob
Air Outlets (2)
Outlet Cap
Filter
Filter Drain Valve
Compressor Motor
Air Tank
Rubber Stands (4)
Air Tank Drain Valve

SET UP

1. Screw the Braided Air Hose onto the airbrush and Air Outlet.
NOTE: If your airbrush tting is not 1/8" PS, select from the Aztek, Badger and Paasche airbrush adaptors included for your convenience, and screw
onto the airbrush and hose.
2. To connect to a 2nd airbrush, an additional hose not included is required. Remove the Outlet Cap and connect the 2nd hose. Depending on the air
consumption of the 2 airbrushes connected, the compressor may or may not support the simultaneous use of both airbrushes.
Copyright © 2021 ANEST IWATA SPARMAX Co., Ltd. All rights reserved.
TC610H_PLUS_manual_20210428
Handle
On/O Switch
Pressure Gauge
Auto Stop Pressure Switch
Air Tank Safety Valve
Plug
Braided Air Hose
www.SPARMAXair.com
