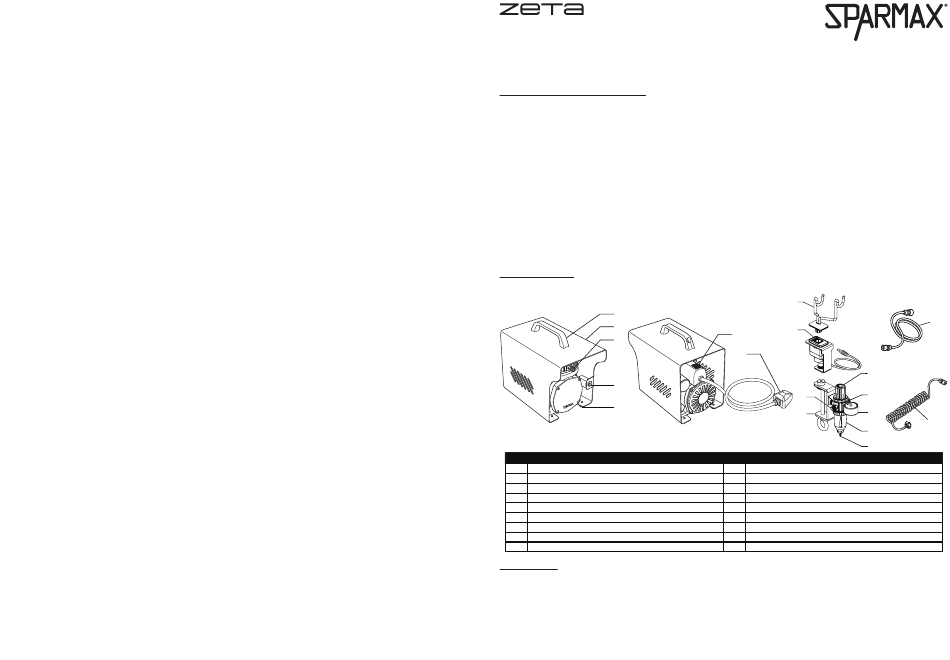

Sparmax Zeta User Manual

User's Manual
This manual contains important information on product safety, set-up, operation, and maintenance. For optimum performance and safety,
read this manual carefully before using this product. Please keep this manual in a safe place for future reference.
IMPORTANT SAFETY INFORMATION
• When using electrical appliances, basic precautions should always be followed to reduce the risk of damage, fire, electric shock, personal injury
or property damage.
• Before connecting the compressor to a power outlet, check if the voltage indicated on the compressor corresponds to the mains voltage
(100-120 V or 220-240 V). Using the compressor with the wrong mains voltage could damage the unit, and could cause an electrical fire.
• Do not overload wall outlets, extension cords, or power strips beyond their capacity. This could cause a circuit breaker trip, insufficient voltage
supply, or an electrical fire.
• To avoid electric shock, never operate the compressor outdoors when raining, or in wet conditions.
• Always place the compressor on a flat and stable surface.
• Always remain in attendance when the compressor is in operation.
• Never place objects against, or on top of, the compressor. Operate the compressor in an open area without any obstructions that would restrict
the flow of fresh air into the compressor.
• Exceeding the pressure rating of pneumatic tools, such as airbrushes, spray guns, or air operated devices, could damage the tool and could also
cause serious personal injury. Never exceed the maximum allowable pressure rating recommended by your pneumatic tool's manufacturer.
• Do not insert any foreign objects into the openings of the compressor.
• Do not disassemble the compressor or attempt to modify the compressor in any way.
• Do not disconnect the hanger switch plug when the on/off switch is on.

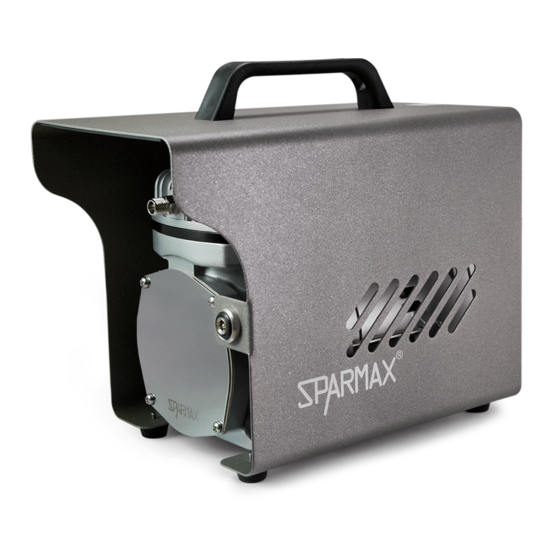

Product Overview
Front view
1
2
3
4
5
Parts List
1
Handle
2 Steel Case
3 Compressor Air Outlet
4 Jack
Foot (4)
5
On/Off Switch
6
7 Plug
8 Pressure Regulator Knob
9 Regulator Air Inlet
Specifications
Motor: 1/8 HP AC
Air flow: 14 - 18 l/min (0.49 - 0.64 cfm) at open flow
Preset maximum pressure: 60psi
Dimensions: L24 x W14 x H21.5 cm(9.4" x 5.5" x 8.5")
Weight: 4.6 kg / 10 lbs
Copyright © 2018 ANEST IWATA SPARMAX Co., Ltd. All rights reserved.
SP_MAN_Zeta_A4_20180817.1
www.SPARMAXair.com
Rear view Included Accessories
15
16
6
7
8
9
10
11
13
12
14
10 Regulator Air outlet
Pressure Gauge
11
12 Moisture Trap
13 Stand
14 Moisture Trap Drain Valve
15 Airbrush Hanger
16 Smart Stop Hanger Switch
17 Braided Air Hose
18 Curly Air Hose
17
18
1/3
