Sparmax TC-610H User Manual

TC-610H
User's Manual
This manual contains important information on product safety, set-up, operation, and maintenance. For optimum performance and safety,
read this manual carefully before using this product. Please keep this manual in a safe place for future reference.
IMPORTANT SAFETY INFORMATION
• When using electrical appliances, basic precautions should always be followed to reduce the risk of damage, fire, electric shock, personal injury
or property damage.
• Before connecting the compressor to a power outlet, check if the voltage indicated on the compressor corresponds to the mains voltage
(100-120 V or 220-240 V). Using the compressor with the wrong mains voltage could damage the unit, and could cause an electrical fire.
• Do not overload wall outlets, extension cords, or power strips beyond their capacity. This could cause a circuit breaker trip, insufficient voltage
supply, or an electrical fire.
• To avoid electric shock, never operate the compressor outdoors when raining, or in wet conditions.
• Always place the compressor on a flat and stable surface.
• Always remain in attendance when the compressor is in operation.
• Never place objects against, or on top of, the compressor. Operate the compressor in an open area without any obstructions that would restrict
the flow of fresh air into the compressor.
• Exceeding the pressure rating of pneumatic tools, such as airbrushes, spray guns, or air operated devices, could damage the tool and could also
cause serious personal injury. Never exceed the maximum allowable pressure rating recommended by your pneumatic tool's manufacturer.
• Do not insert any foreign objects into the openings of the compressor.
• Do not disassemble the compressor or attempt to modify the compressor in any way.

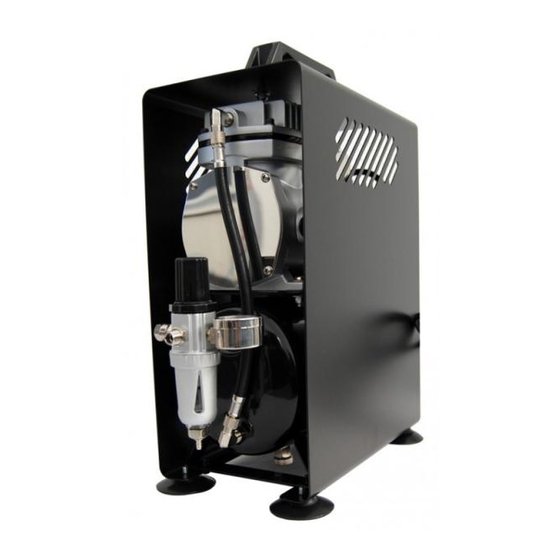

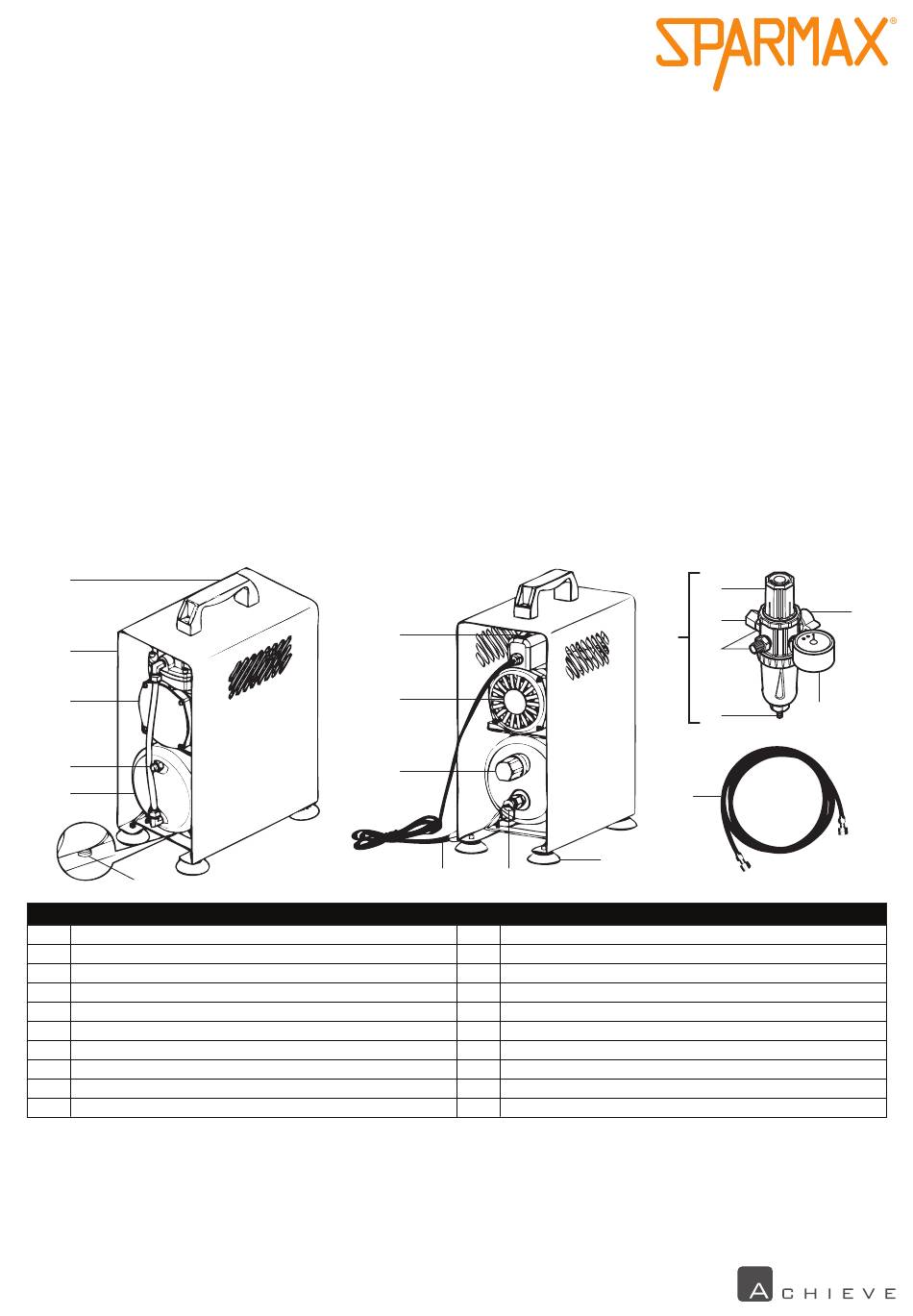

Product Overview
Front view
1
2
3
4
5
6
Parts List
1 Handle
2 Steel Case
3 Compressor Motor
4 Air Tank Air Outlet
5 Air Tank
6 Air Tank Drain Valve
7 On/Off Switch
8 Fan Cover
9 Auto Stop Pressure Switch
10 Plug
Specifications
Motor: 1/6 HP AC
Air flow: 23 - 28 l/min (0.8 - 0.98 cfm) at open flow
Auto on/ off: 2.8/ 4.1 bar (40/ 60 psi)
Dimensions: L27 x W16 x H37 cm
Weight: 7.1 kg / 15.6 lbs
Copyright © 2014 Ding Hwa Co., Ltd. All rights reserved.
SP_MAN_TC610H_A4_20130412.1
Rear view
7
8
9
10 11
11 Air Tank Safety Valve
12
Rubber Stands (4)
13 Moisture Trap
14 Pressure Regulator Knob
15 Outlet Cap
16 Moisture Trap Air Outlets (2)
17 Moisture Trap Drain Valve
18 Moisture Trap Air Inlet (Detachable Connector)
Pressure Gauge
19
Braided Air Hose
20
www.SPARMAXair.com
Included Accessories
14
15
13
16
17
20
12
18
19
