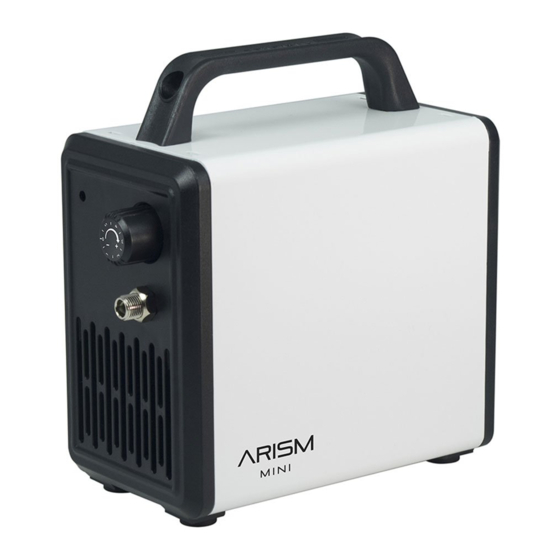

Sparmax ARISM mini User Manual

ARISM m i n i
User's Manual
This manual contains important information on product safety, set-up, operation, and maintenance. For optimum performance and safety,
read this manual carefully before using this product. Please keep this manual in a safe place for future reference.

IMPORTANT SAFETY INFORMATION

• Before connecting the compressor to a power outlet, check if the voltage indicated on the compressor corresponds to the mains
voltage (100-120 V or 220-240 V). Using the compressor with the wrong mains voltage could damage the unit, and could cause an
electrical fire.
• When using electrical appliances, basic precautions should always be followed to reduce the risk of damage, fire, electric shock, personal injury
or property damage.
• Do not overload wall outlets, extension cords, or power strips beyond their capacity. This could cause a circuit breaker trip, insufficient voltage
supply, or an electrical fire.
• To avoid electric shock, never operate the compressor outdoors when raining, or in wet conditions.
• Always place the compressor on a flat and stable surface.
• Always remain in attendance when the compressor is in operation.
• Never place objects against, or on top of, the compressor. Operate the compressor in an open area without any obstructions that would restrict
the flow of fresh air into the compressor.
• Exceeding the pressure rating of pneumatic tools, such as airbrushes, spray guns, or air operated devices, could damage the tool and could also
cause serious personal injury. Never exceed the maximum allowable pressure rating recommended by your pneumatic tool's manufacturer.
• Do not insert any foreign objects into the openings of the compressor.
• Do not disassemble the compressor or attempt to modify the compressor in any way.

Product Overview

Front view
1
2
0
3
Parts List
1 Handle & Airbrush holder
2 Pressure adjustment knob
3 Outlet
4 On/Off Switch
5 Power cable
6 Plug*
7 Braided air hose
8
Specifications
Model: #1M
12 -14
Air flow: l/min (0.42 - 0.49 cfm) at open flow *
Preset max pressure: 3.1 bar (45 psi )
Dimensions: L17.5 x W9 x H17.2cm (6.9" x 3.5" x 6.8")
Weight: 2.5 kg (5.5lbs)
Household Use Only
* Air flow range indicated shows average values over different voltages and frequencies. There will be tolerance for each unit and current fluctuation also affects
actual airflow performance.
Copyright © 2018 ANEST IWATA SPARMAX Co., Ltd. All rights reserved.
SP_MAN_ARISM MINI_A4_20180817
Rear view
9
10
11
12
13
14
15
16
* illustration of plug is for reference only. Plug adaptor may vary depending on your region.
www.SPARMAXair.com
Included accessories
4
5
6
7
