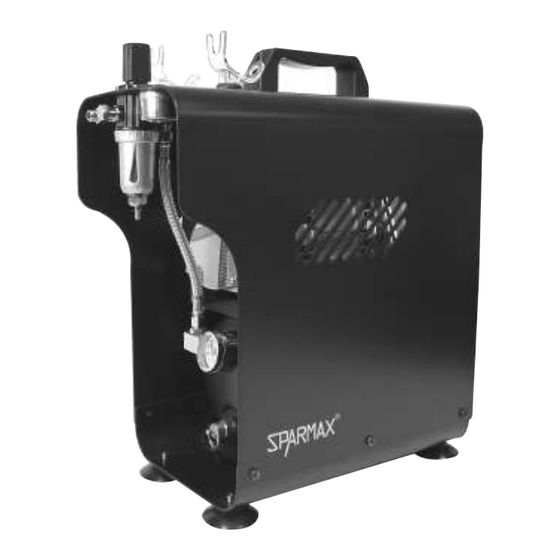

Sparmax TC-620X User Manual
Hide thumbs Also See for TC-620X:

Advertisement

TC-620X
User's Manual
This manual contains important information on product safety, set-up, operation, and maintenance. For optimum performance and safety,
read this manual carefully before using this product. Please keep this manual in a safe place for future reference.

IMPORTANT SAFETY INFORMATION

• When using electrical appliances, basic precautions should always be followed to reduce the risk of damage, fire, electric shock, personal injury
or property damage.
• Before connecting the compressor to a power outlet, check if the voltage indicated on the compressor corresponds to the mains voltage
(100-120 V or 220-240 V). Using the compressor with the wrong mains voltage could damage the unit, and could cause an electrical fire.
• Do not overload wall outlets, extension cords, or power strips beyond their capacity. This could cause a circuit breaker trip, insufficient voltage
supply, or an electrical fire.
• To avoid electric shock, never operate the compressor outdoors when raining, or in wet conditions.
• Always place the compressor on a flat and stable surface.
• Always remain in attendance when the compressor is in operation.
• Never place objects against, or on top of, the compressor. Operate the compressor in an open area without any obstructions that would restrict
the flow of fresh air into the compressor.
• Exceeding the pressure rating of pneumatic tools, such as airbrushes, spray guns, or air operated devices, could damage the tool and could also
cause serious personal injury. Never exceed the maximum allowable pressure rating recommended by your pneumatic tool's manufacturer.
• Do not insert any foreign objects into the openings of the compressor.
• Do not disassemble the compressor or attempt to modify the compressor in any way.

Product Overview

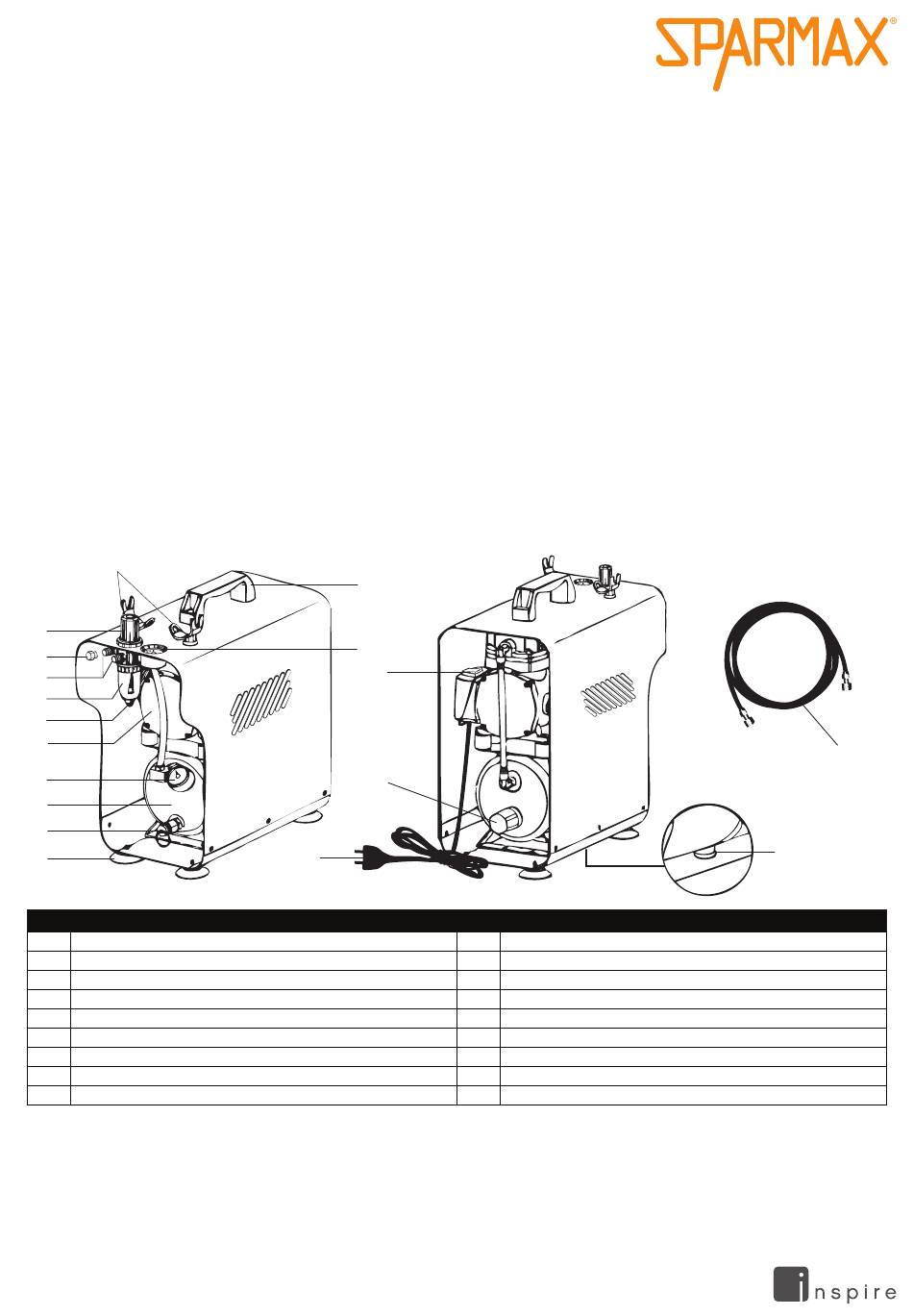

Front view
1
2
3
4
5
6
7
8
9
10
11
Parts List
1
Airbrush Holders (2)
2
Pressure Regulator Knob
3
Outlet Cap
4
Air Outlets (2)
5
Moisture Trap
6
Moisture Trap Drain Valve
7
Compressor Motor
8
Air Tank Pressure Gauge
9
Air Tank
Specifications
Motor: 1/6 HP AC
Air flow: 23 - 32 l/min (0.81 - 1.14 cfm) at open flow
Auto on/ off: 2.8/ 4.1 bar (40/ 60 psi)
Dimensions: L33 x W18 x H34.5 cm
Weight: 10.4 kg / 23 lbs
Copyright © 2018 ANEST IWATA SPARMAX Co., Ltd. All rights reserved.
SP_MAN_TC620X_A4_20180817.1
Rear view
12
13
14
15
16
10
Air Tank Safety Valve
11
Rubber Stands (4)
12
Handle
13
Pressure Gauge
14
On/Off Switch
15
Auto Stop Pressure Switch
16
Plug
17
Air Tank Drain Valve
18
Braided Air Hoses (2)
www.SPARMAXair.com

Included Accessories

18
17
