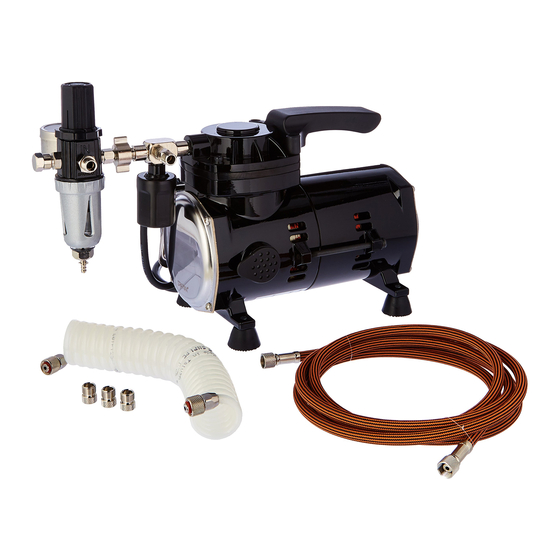

TC-501N Manual
This manual contains important information on the correct operation, maintenance and safety information of
the compressor, all of which should be strictly adhered to. Failure to do so may cause damage of product
and/or potential hazards which are not covered under SPARMAX warranty.
Each SPARMAX compressor is tested and fully inspected to ensure its quality and performance are up to strict
standards at the time of factory dispatch.
IMPORTANT SAFETY INFORMATION
WARNING:
DO NOT apply voltage and frequency different from those specified on voltage label at the bottom of the unit.
CAUTIONS:
1. ONLY operate the compressor in dry, well-ventilated areas on a flat surface.
2. DO NOT leave the compressor in operation unattended.
3. DO NOT insert any foreign objects into the compressor or disassemble/modify/repair it in any way.
4. DO NOT touch the compressor during or soon after operation since it will become hot.
5. STOP and turn off the compressor immediately if burnt odor, white smoke, odd noises, or other abnormalities are detected.
NOTE: Emission of an oil-like odor during the first few uses of a new unit is normal. The odor will gradually lessen and disappear.
PARTS DIAGRAM
Check all parts are present and in good condition. Any transportation damages should be reported immediately to the original seller.
See voltage label at bottom of unit for specifications.
Compressor
Air Outlet
Auto Stop
Pressure Switch
Rubber Stand
SET UP
1. Connect Detachable Connector of Regulator/Filter/Gauge Set to the Compressor Air Outlet.
2. Screw the Braided Air Hose onto the Regulator Air Outlet and airbrush.
NOTE: If your airbrush fitting is different from the hose fitting of 1/8" PS, an additional airbrush adaptor is required between the airbrush and the hose
for connection. Please check with your original seller on the adaptor required.
Handle
Air Intake
Filter
Fan Cover
Regulator/Filter/Gauge Set
Pressure Regulator Knob
Regulator Air Outlet
On/Off Switch
Condenser Cover
Plug
Braided Air Hose
www.SPARMAXair.com
Detachable
Connector
Pressure Gauge
Filter Drain Valve
