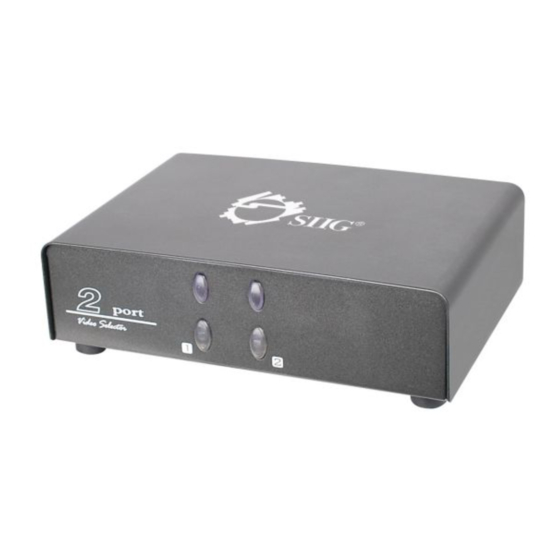

2x1 VGA Switch
Quick Installation Guide
Introduction the 2x1 VGA Switch
The 2x1 VGA Switch allows you to switch between two
computers to share a VGA monitor
Features and Benefits
•
Shares a VGA monitor between two PCs
•
Supports VGA, SVGA, XGA, UXGA and Multi-Sync
monitors
•
Supports up to 1920 x 1440 resolution
•
Video bandwidth: 250MHz
•
Switches between computers via front panel buttons
or cables connected to PCs
•
Distance: up to 50M (164ft)
•
Operating temperature: 0 – 40 °C
•
Storage temperature: -5 – 70 °C
•
Humidity: 0 – 80 RH, Non-condensing
•
Video:
- Input: 2x VGA (male, 15-pin)
- Output: 1x VGA (female, 15-pin)
Package Contents
•
2x1 VGA Switch
•
Port 1 VGA cable with USB power (6ft)
•
Port 2 VGA cable (0.66ft)
•
Quick installation guide
04-0673A
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SIIG 2x1 VGA Switch
Summary of Contents for SIIG 2x1 VGA Switch
- Page 1 2x1 VGA Switch Quick Installation Guide Introduction the 2x1 VGA Switch The 2x1 VGA Switch allows you to switch between two computers to share a VGA monitor Features and Benefits • Shares a VGA monitor between two PCs • Supports VGA, SVGA, XGA, UXGA and Multi-Sync monitors •...
- Page 2 Layout LED indicator (Red) Device switch buttons Figure 1: Front Panel Video output Video input Figure 2: Rear Panel...
- Page 3 Cable Cable Figure 3 Note: This switch is drawing power from the PC connected to port VIDEO 1. In order for the switch to work, VIDEO 1 needs to be active with power flowing through.
-
Page 4: Hardware Installation
Connect a VGA monitor to the switch’s VIDEO OUT port using a VGA cable (not included). Turn on the monitor, then computers. The 2x1 VGA Switch is now ready to use. Switching between 2 PC’s There are two ways to switch between PC’s: front panel buttons or switch button on the cables. - Page 5 Blank Page...
- Page 6 Blank Page...
-
Page 7: Technical Support And Warranty
Step 1: Submit your RMA request. Go to www.siig.com, click Support, then RMA to submit a request to SIIG RMA or fax a request to 510-657- 5962. Your RMA request will be processed, if the product is determined to be defective, an RMA number will be issued. -
Page 8: Lifetime Warranty
Fremont, CA 94538-3152, USA Phone: 510-657-8688 2x1 VGA Switch is a trademark of SIIG, Inc. SIIG and the SIIG logo are registered trademarks of SIIG, Inc. All other names used in this publication are for identification only and may be trademarks of their respective owners.
