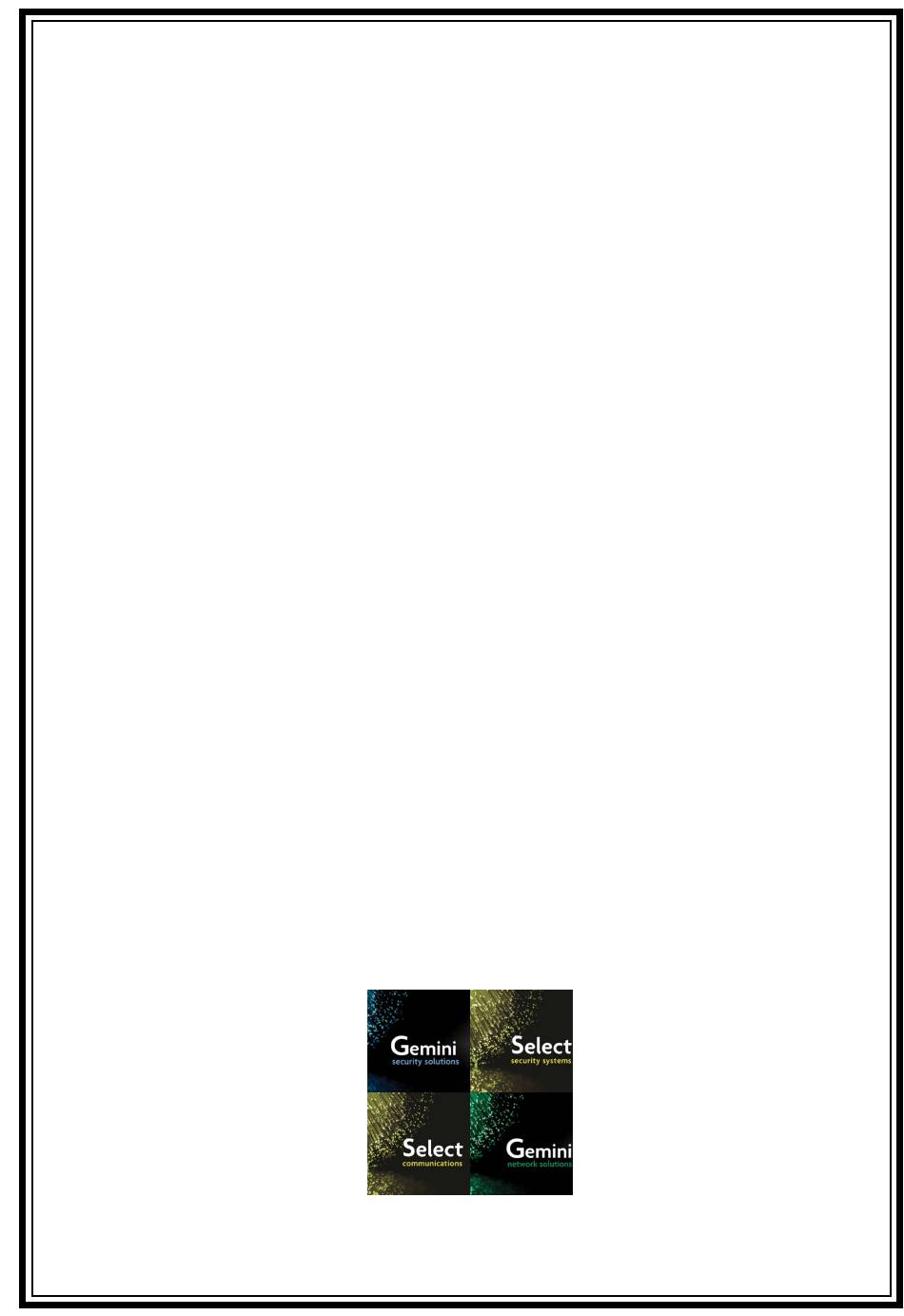

- Page 1 GEMINI SECURITY SOLUTIONS RISCO GROUP User Instructions www.geminisecuritysolutions.co.uk...
-
Page 2: Table Of Contents
USER MANUAL GEMINI SECURITY SOLUTIONS Contents Introduction Keypads User Levels and Options Master Code Flow Chart Setting and Unsetting the System Removing Zones and Setting the System Testing the System Viewing the Log Setting the Chime On/Off Changing Codes Resetting after an Alarm Display Messages System Status... -
Page 3: Introduction
USER MANUAL GEMINI SECURITY SOLUTIONS Introduction Welcome to the Gardtec 360/580 Control panel. Your Control panel will have already been programmed to suit the system that you have had installed by your engineer and you will have been left with at least one Master user code by the engineer. This code will allow you to program other user codes and perform other programmable functions with the Control panel. - Page 4 USER MANUAL GEMINI SECURITY SOLUTIONS RESET If programmed by the engineer allows the system to be reset after an alarm. REMOVE Set the system with one or more zones (selected by the Master user) removed. TEST Allows the system to be tested (zones and bells/strobe) Allows the Log to be read.
-
Page 5: Master Code Flow Chart
USER MANUAL GEMINI SECURITY SOLUTIONS The flow chart shown below gives the order of the screens when the Master code is used to access the system. KEY TO SCREENS:- Un = Unset SE = Set r E = Remove Zones t E = Test System Lo = Read Log Ch = Change Chime... -
Page 6: Setting And Unsetting The System
USER MANUAL GEMINI SECURITY SOLUTIONS Setting and Unsetting the System With the system Unset (display showing 'Un') enter a Master code and screen will flash If YES was Pressed With system Unset enter System fully set code other than Master (eg User code) &... -
Page 7: Removing Zones And Setting The System
USER MANUAL GEMINI SECURITY SOLUTIONS Removing Zones then Setting the system With the system Unset Enter Master code and press NO until screen flashes:- Press YES Enter Zone No to be removed then YES Note: To "Un-remove" a zone that may have been Repeat removed by mistake. -
Page 8: Testing The System
USER MANUAL GEMINI SECURITY SOLUTIONS Testing the System With the system Unset Enter Master Code and press NO until screen flashes:- Press YES Whilst in this mode any zones activated will generate a tone and be displayed. Pressing 9 whilst in this mode will sound the Bells and flash the Strobe. -
Page 9: Viewing The Log
USER MANUAL GEMINI SECURITY SOLUTIONS Viewing the Log With the system Unset Enter Master Code and Press Display may differ NO until screen flashes. Press YES This is Log mode. The last event will be dis- played first, to move back to the previous event press NO. -
Page 10: Setting The Chime On/Off
USER MANUAL GEMINI SECURITY SOLUTIONS Setting Chime On/Off With system Unset Enter Master Code and press NO until screen flashes. May show On Press YES Press NO Note: Zones on Chime must be programmed by the engi- May show Off neer before this function will operate. -
Page 11: Changing Codes
USER MANUAL GEMINI SECURITY SOLUTIONS Changing Codes With system Unset Enter Master Code and press NO until screen flashes. Press YES Enter User number Notes: Then YES To delete a code enter 0000 for new code. User 1 (Master Code) may only be changed it cannot be deleted. -
Page 12: Resetting After An Alarm
USER MANUAL GEMINI SECURITY SOLUTIONS Resetting After an Alarm One of four reset modes may have been programmed by your engineer. Any Code The system will reset the next time Any Code is used to set the system. Master Code The system will only reset if the Master Code or Engineer code is used to set the sys- tem. -
Page 13: Display Messages
USER MANUAL GEMINI SECURITY SOLUTIONS Display Messages (System) The Following System messages are possible. Represent zones 1 to 6 ( 1 to 7 on Gardtec 580 ) '1 to 6 or 7' 'r1' RKP zone Tamper zone 'CA' Control panel Alert keys activated 'Fb' Fuse Fail or Battery Fault 'bb'... - Page 14 USER MANUAL GEMINI SECURITY SOLUTIONS Display Messages (Log) Apart from the System and Status displays the following messages may also appear whilst viewing the Log. System Full Set System Part 1 Set System Part 2 Set System Part 3 Set ' o1 ' Unset User 1 ' o2 '...
-
Page 15: Log
USER MANUAL GEMINI SECURITY SOLUTIONS Glossary of Terms Full Set To arm the system with all zones active. Part Set 1, 2 or 3 To arm the system with a group of zones (pre-programmed by the engineer) removed (omitted). Unset To disarm (turn off the system).
